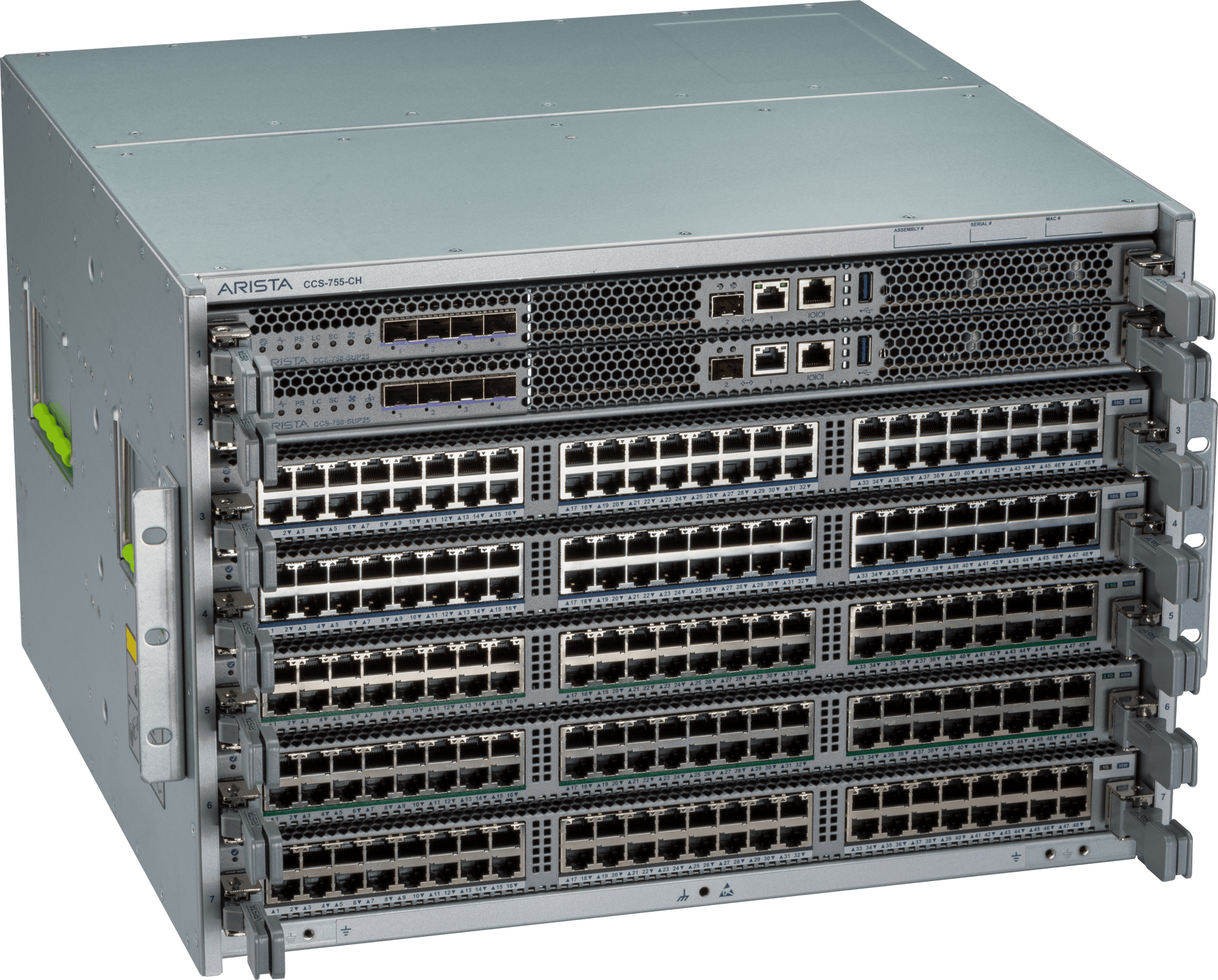

Arista CCS-755-100-BND-2 | 750X 5-Slot Modular Chassis Bundle, 2 Switch Cards, 2 Sup100

Arista CCS-755-100-BND-2 | 750X 5-Slot Modular Chassis Bundle, 2 Switch Cards, 2 Sup100

Authorised Arista Partner

SKU:CCS-755-100-BND-2

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Arista CCS-755-100-BND-2 is a 750X 5-slot modular chassis bundle for campus and PoE access deployments, supplied with two switch cards and two Sup100 supervisor modules for a dual-redundant control and data plane. The 7RU chassis provides five line card slots and two supervisor slots, supporting up to 240 x 1/2.5/5/10G 90W PoE ports per chassis.

Switch cards connect directly to line cards with no midplane or backplane, and a fully shared packet buffer serves all PoE and uplink ports. The chassis has six hot-swap power supply slots and six hot-swappable fans, and runs Arista EOS 4.25.1 or later. Line cards and power supplies are selected separately to suit the deployment.

Features

- Dual redundant switch cards and dual supervisor modules for high availability
- Orthogonal direct connection between switch cards and line cards with no midplane or backplane
- Fully shared packet buffer for all PoE and uplink ports, eliminating oversubscription and inter-chip links
- State-sharing architecture supporting in-service software updates and self-healing
- L2/L3 forwarding, QoS, security policy enforcement, VXLAN and EVPN segmentation

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 750X 5-slot chassis (CCS-755), 7RU
- Bundle includes 1 x chassis, 2 x switch cards (CCS-755-X3-SC), 2 x Sup100 supervisor modules
- 2 supervisor slots, 5 line card slots
- Up to 240 x 1/2.5/5/10G 90W PoE ports per chassis
- 6 hot-swap power supply slots, 6 hot-swappable fans
- Switch card throughput 1.15Tbps, 850Mpps, 1+1 active/standby redundancy
- Sup100 uplink bandwidth 100Gbps
- Dimensions (HxWxD): 30.5 x 44.2 x 41.2 cm
- Empty chassis weight 24.8 kg
- Minimum EOS 4.25.1
- Line cards and power supplies sold separately

FAQs

Q: What is included in the CCS-755-100-BND-2 bundle?
A: The bundle includes one 750X 5-slot chassis, two switch cards (CCS-755-X3-SC) and two Sup100 supervisor modules. Line cards and power supplies are sold separately.

Q: Does this bundle provide redundancy?
A: Yes. Two switch cards operate in 1+1 active/standby redundancy and two Sup100 supervisors provide a redundant control plane.

Q: How many PoE ports can this chassis support?
A: With compatible line cards fitted, the chassis supports up to 240 x 1/2.5/5/10G 90W PoE ports.

Q: Do I need to buy line cards and power supplies separately?
A: Yes. The bundle covers the chassis, switch cards and supervisors only. Select line cards and power supplies to match your port density and PoE budget.

Q: What software version is required?
A: The platform requires Arista EOS 4.25.1 or later.

Q: What is the physical size of the chassis?
A: The chassis is 7RU, measuring 30.5 x 44.2 x 41.2 cm (HxWxD), and weighs 24.8 kg empty.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
