Arista CCS-722XPM-48ZY8-2F-C14 | 722XPM-48ZY8 48-Port mGig 60W PoE Switch, 8x 25G SFP28, 2x AC PSU, C14

Arista CCS-722XPM-48ZY8-2F-C14 | 722XPM-48ZY8 48-Port mGig 60W PoE Switch, 8x 25G SFP28, 2x AC PSU, C14

Authorised Arista Partner

SKU:CCS-722XPM-48ZY8-2F-C14

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

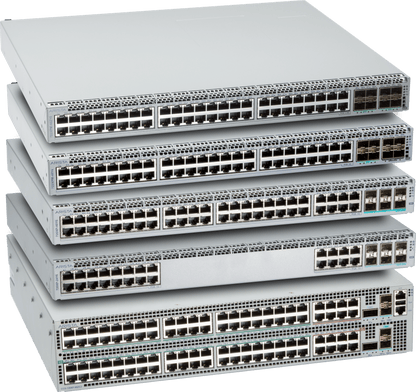

The Arista CCS-722XPM-48ZY8-2F-C14 is a 1RU campus PoE leaf switch with 48 multi-gigabit (100M to 2.5G) RJ45 ports delivering up to 60W PoE per port and 8x 25G SFP28 uplinks. It runs Arista EOS under CloudVision cognitive campus management and supports 256-bit MACsec on downlink and uplink ports, making it well suited to high-density access layers for wireless, IoT and workstation deployments.

This variant ships with two AC power supplies, front-to-rear airflow and a C14 power cord. Dual PSUs raise the PoE power budget from 890 W to 1835 W and provide power redundancy. Cognitive PoE with power prioritisation keeps mission-critical devices powered, while VXLAN/EVPN, VRF and flow-tracking capabilities support segmentation and visibility across the campus network.

Features

- 802.1Q VLANs, IPv4/v6 VRFs and VXLAN/EVPN segmentation
- Integrated MACsec encryption (AES static and dynamic) on all ports
- Cognitive real-time flow trackers for CloudVision, IPFIX and sFlow
- Cognitive PoE with power prioritisation for mission-critical services
- In-service software upgrades and self-healing resiliency via Arista EOS
- Managed 802.3af/at PoE for desktops, appliances and IoT devices

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 48 x multi-gigabit (100M to 2.5GbE) RJ45 ports, PoE up to 60W per port
- 8 x 25G SFP28 uplink ports
- MACsec (256-bit) on downlink and uplink ports
- PoE power budget: 890 W (single PSU) / 1835 W (dual PSU)
- Power draw: 134 W typical, 160 W maximum
- Supported power supply: PWR-1021-AC-RED
- Airflow: front-to-rear, 2 x AC power supplies
- Power cord: C14 variant
- Dimensions (W x H x D): 44.5 x 4.4 x 42.0 cm (1RU)
- Weight: 7.5 kg

FAQs

Q: What PoE budget does this switch provide?
A: The PoE power budget is 890 W with a single power supply and 1835 W with dual power supplies. This variant includes two AC PSUs.

Q: What PoE standards and power levels are supported?
A: The 48 multi-gigabit RJ45 ports support managed 802.3af/at PoE, with up to 60W available per port.

Q: What uplink options does the switch offer?
A: It provides 8 x 25G SFP28 uplink ports for connecting to distribution or core layers.

Q: Does this switch support MACsec encryption?
A: Yes. It supports 256-bit MACsec on downlink and uplink ports, including AES static and dynamic keying.

Q: What airflow direction does this variant use?
A: This -2F variant uses front-to-rear airflow and ships with two AC power supplies.

Q: How is this switch managed?
A: It runs Arista EOS and integrates with CloudVision for cognitive campus management, with flow visibility via IPFIX and sFlow.
