Arista

Arista CCS-722XPM-48Y4-R | 722XPM-48Y4 48-Port PoE Switch, 25G SFP28, MACsec, Rear-to-Front

Arista CCS-722XPM-48Y4-R | 722XPM-48Y4 48-Port PoE Switch, 25G SFP28, MACsec, Rear-to-Front

Authorised Arista Partner

SKU:CCS-722XPM-48Y4-R

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

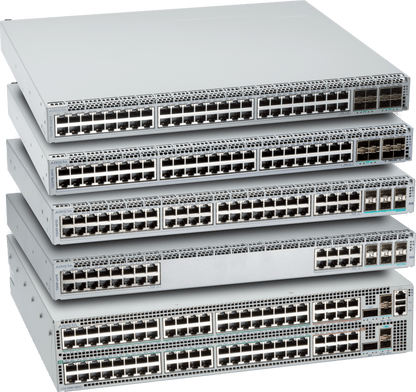

The Arista 722XPM-48Y4 is a 1RU campus PoE access switch with 48 x 10M-1GbE RJ45 ports delivering 30W PoE per port, backed by 4x25G SFP28 and 4x10G SFP+ uplinks. It supports 256-bit MACsec encryption on both downlink and uplink ports, making it well suited to secure campus access and edge deployments that need high-power PoE for access points, cameras and IP phones. This CCS-722XPM-48Y4-R SKU is the rear-to-front airflow variant for racks with reverse cooling layouts.

With 376Gbps of switching bandwidth, hot-swappable power supplies and fans, and support for 650W AC, 1050W AC and 500W DC power supplies, the switch scales PoE budget up to 1860W with dual 1050W AC supplies. It runs Arista EOS and supports 802.1x authentication, VRFs, VXLAN and EVPN for modern campus network designs.

Features

- AES static and dynamic MACsec encryption
- 802.1x authentication
- 802.1Q VLANs
- IPv4/IPv6 VRFs
- VXLAN overlay
- EVPN support
- Redundant, hot-swappable power supplies and fans
- Arista EOS network operating system

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 48 x 10M-1GbE RJ45 ports with 30W PoE
- Uplinks: 4 x 25G SFP28 + 4 x 10G SFP+
- 376Gbps switching bandwidth
- MACsec 256-bit on downlink and uplink ports (50Gbps downlink / 50Gbps uplink MACsec performance)
- Default power supply: 1050W AC
- Supported power supplies: 650W AC, 1050W AC, 500W DC
- Default available PoE power: 967W with a single 1050W AC PSU
- Up to 1860W PoE power with dual 1050W AC PSUs
- System power (typical/max): 83W/102W
- 1RU form factor
- Rear-to-front airflow

FAQs

Q: What airflow direction does the CCS-722XPM-48Y4-R use?
A: The -R suffix denotes rear-to-front airflow, intended for racks where cooling air enters at the rear of the switch.

Q: How much PoE power is available?
A: With a single default 1050W AC power supply the switch provides 967W of PoE power. With dual 1050W AC supplies it provides up to 1860W.

Q: What uplink options does this switch have?
A: It has 4 x 25G SFP28 ports and 4 x 10G SFP+ ports for uplinks.

Q: Does this switch support MACsec?
A: Yes. It supports 256-bit MACsec on both downlink and uplink ports, with static and dynamic AES encryption.

Q: Which power supplies are supported?
A: The switch supports 650W AC, 1050W AC and 500W DC power supplies, with a 1050W AC supply as the default.

Q: What PoE level do the access ports provide?
A: All 48 x 10M-1GbE RJ45 ports support 30W PoE, subject to the total PoE budget of the installed power supplies.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
