Arista

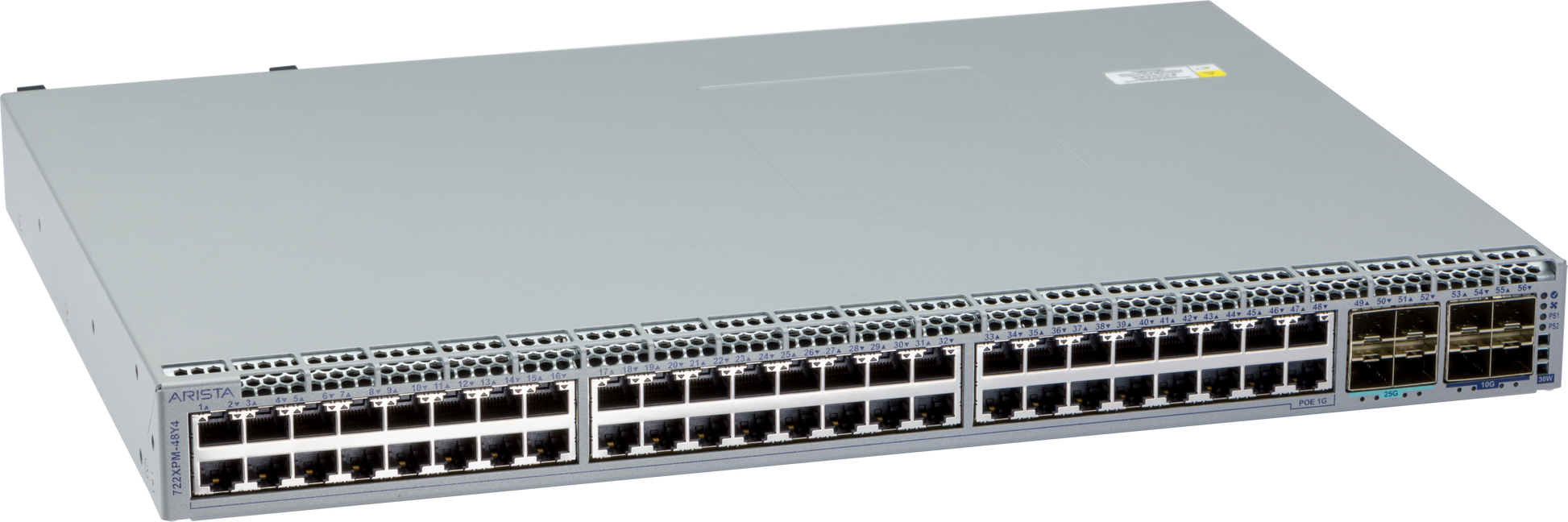

Arista CCS-722XPM-48Y4-2F-C14 | 722XPM 48-Port Gigabit PoE+ Switch, 4x25G, MACsec, Dual AC PSU

Arista CCS-722XPM-48Y4-2F-C14 | 722XPM 48-Port Gigabit PoE+ Switch, 4x25G, MACsec, Dual AC PSU

Authorised Arista Partner

SKU:CCS-722XPM-48Y4-2F-C14

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Arista 722XPM 48-port PoE+ campus switch is a 1RU secure access and leaf switch with 48 10M/100M/1GbE RJ45 ports delivering up to 30W of 802.3af/at PoE per port, plus 4x 25G SFP28 and 4x 10G SFP+ uplinks. This CCS-722XPM-48Y4-2F-C14 configuration ships with dual AC power supplies, C14 power cords and front-to-rear airflow, and supports 256-bit MACsec on access and uplink ports for encrypted campus links.

It runs Arista EOS under CloudVision management, giving the same software experience as the rest of the Arista portfolio. With VXLAN/EVPN segmentation, VRFs and cognitive flow tracking, it suits secure campus access layers powering desktops, PoE appliances and IoT devices, with the dual 1050W AC supplies providing redundant power and a large PoE budget.

Features

- Integrated 256-bit MACsec encryption (AES static and dynamic) on access and uplink ports
- 802.1Q VLANs, IPv4/IPv6 VRFs and VXLAN/EVPN segmentation
- Cognitive real-time flow trackers for CloudVision, IPFIX and sFlow
- Managed 802.3af/at PoE for desktops, PoE appliances and IoT devices
- Runs Arista EOS for consistent network administration across Arista products
- Redundant power with in-service maintenance and upgrades
- Supports 1G, 10G and 25G SFP/SFP+/SFP28 optics

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 48 x 10M/100M/1GbE RJ45 ports with 802.3af/at PoE, up to 30W per port
- 4 x 25G SFP28 uplinks
- 4 x 10G SFP+ uplinks
- MACsec 256-bit on downlink and uplink ports (separately licensed)
- PoE power budget: approx. 948W with a single PSU, approx. 1893W with dual PSUs
- Throughput 376Gbps (2-way), 559 Mpps
- Latency 1.2 microseconds
- Dual-core x86 CPU, 4GB system memory, 8GB flash, 4MB packet buffer
- 64K MAC addresses, 32K IPv4 host routes, 16K IPv4 routes
- 1 x USB port, 1 x console port, 1 x 100M/1G management port
- 2 x PWR-1021-AC-RED 1050W AC power supplies supplied, with C14 power cords
- Front-to-rear airflow
- Dimensions 44.5 x 4.4 x 36.4 cm (1RU), weight 6.8 kg
- Power draw 83W typical, 102W maximum (no PoE load)

FAQs

Q: How much PoE power does the Arista CCS-722XPM-48Y4-2F-C14 provide?
A: Each of the 48 RJ45 ports supplies up to 30W of 802.3af/at PoE. The total PoE budget is approximately 948W with a single power supply and approximately 1893W with both supplied PSUs installed.

Q: What uplink options does this switch have?
A: It provides 4 x 25G SFP28 and 4 x 10G SFP+ uplink ports, and supports 1G, 10G and 25G SFP, SFP+ and SFP28 optics.

Q: Does this model include power supplies and power cords?
A: Yes. It ships with two PWR-1021-AC-RED 1050W AC power supplies and C14 power cords, configured for front-to-rear airflow.

Q: Does the switch support MACsec encryption?
A: Yes. It supports 256-bit MACsec on both downlink and uplink ports. MACsec is separately licensed.

Q: What management and software does it run?
A: It runs Arista EOS and is managed through Arista CloudVision, with IPFIX and sFlow support for flow visibility.

Q: Are the access ports multi-gigabit?
A: No. The 48 RJ45 access ports operate at 10M, 100M and 1GbE. Higher speeds are available through the SFP+ and SFP28 uplinks.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
