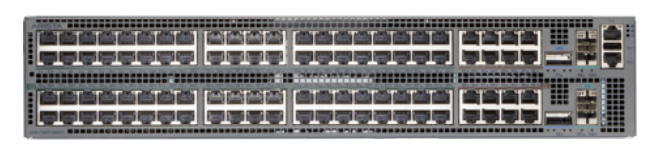

Arista CCS-720XP-96ZC2-2F-C14 | 720XP 96-Port PoE Switch, 4x 25G SFP, 2x 100G QSFP, 2F, C14

Arista CCS-720XP-96ZC2-2F-C14 | 720XP 96-Port PoE Switch, 4x 25G SFP, 2x 100G QSFP, 2F, C14

Authorised Arista Partner

SKU:CCS-720XP-96ZC2-2F-C14

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Arista CCS-720XP-96ZC2-2F-C14 is a 96-port PoE campus access switch from the Arista 720XP Series, part of the Cognitive Campus portfolio. It combines multi-gigabit PoE access ports, including 16x 5G PoE ports, with 4x 25G SFP and 2x 100G QSFP uplinks. This variant has front-to-rear airflow (2F) and a C14 power inlet, making it suited to high-density campus access deployments powering wireless access points, IP phones and IoT devices.

The 2RU chassis supports modular, redundant AC power supplies (PWR-1021-AC-RED) and offers a high PoE power budget, scaling from 2255 W with three PSUs to 3077 W with four PSUs. It suits wiring closets and campus distribution points where PoE capacity and high-speed uplinks are priorities.

Features

- Arista Cognitive Campus switch
- Multi-gigabit PoE access ports for wireless access points and IoT devices
- 25G SFP and 100G QSFP high-speed uplinks
- Modular, redundant AC power supplies
- High PoE budget for dense campus access deployments
- Front-to-rear airflow for structured cooling in racks

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Model: Arista 720XP-96ZC2
- Form factor: 2RU
- 16x 5G PoE ports
- 4x 25G SFP uplinks
- 2x 100G QSFP uplinks
- Airflow: front-to-rear (2F)
- Power inlet: C14
- Supported PSU: PWR-1021-AC-RED
- Power draw (typical / max): 245 W / 278 W
- PoE power budget: 2255 W with three PSUs, 3077 W with four PSUs
- Dimensions (W x H x D): 48.3 x 8.8 x 40.4 cm
- Weight: 14.1 kg (31 lbs)

FAQs

Q: What does the 2F suffix mean on this switch?
A: The 2F suffix indicates front-to-rear airflow, so cool air is drawn in at the front of the chassis and exhausted at the rear.

Q: What does the C14 in the SKU refer to?
A: It identifies the power inlet variant of this model, which uses a C14 inlet.

Q: Which power supply does this switch use?
A: It supports the PWR-1021-AC-RED modular AC power supply, with redundant power supported by adding further units.

Q: What is the PoE power budget?
A: The PoE power budget is 2255 W with three power supplies installed and 3077 W with four power supplies installed.

Q: What uplink options does this model provide?
A: It provides 4x 25G SFP and 2x 100G QSFP uplink ports for connecting to the distribution or core layer.

Q: What rack space does it need?
A: It is a 2RU switch measuring 48.3 x 8.8 x 40.4 cm and weighing 14.1 kg.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
