Arista

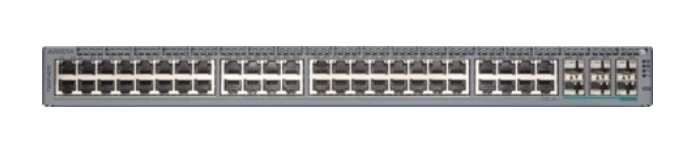

Arista CCS-720XP-48Y6-2F-C14 | 720XP-48Y6 48-Port PoE+ Switch, 6x 25G SFP28, 2x PSU, C14

Arista CCS-720XP-48Y6-2F-C14 | 720XP-48Y6 48-Port PoE+ Switch, 6x 25G SFP28, 2x PSU, C14

Authorised Arista Partner

SKU:CCS-720XP-48Y6-2F-C14

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Arista CCS-720XP-48Y6-2F-C14 is a 1RU managed Layer 3 campus PoE+ access switch with 48 x 10/100/1000 RJ45 ports and 6 x 25G SFP28 uplinks, running Arista EOS. This bundle ships with front-to-rear airflow, 2 power supplies and 2 C14 power cords, giving you redundant power and a ready-to-deploy configuration for wiring closets.

With a 982W PoE budget on a single PSU and 1850W with dual PSUs, it powers access points, IP phones and cameras at up to 30W per port. Wire-speed switching, VXLAN and VRF segmentation, and management through Arista Cognitive Campus services and CloudVision make it well suited to modern enterprise campus access layers.

Features

- Runs the same Arista EOS software as all Arista products
- Wire-speed architecture
- Standard RJ45, SFP+ and SFP28 interfaces for in-closet and uplink connections
- Managed by Arista Cognitive Campus services and CloudVision
- Redundant, hot-swappable AC power supplies and fans
- Segmentation and overlay support: IPv4/v6 VRFs and VXLAN
- Rapid Spanning Tree, MSTP, RPVST+, Q-in-Q and LACP

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 48 x 10/100/1000 RJ45 ports with 802.3af/at PoE+ (up to 30W per port)
- 6 x 25G SFP28 uplink ports (support 1G/10G/25G)
- Switching throughput 198 Gbps (396 Gbps full duplex)
- Forwarding rate 294 Mpps
- Latency 1.2 microseconds (RJ-45)
- Dual-core x86 CPU, 4GB system memory, 8GB flash, 8MB packet buffer
- PoE power budget 982W with a single PSU, 1850W with dual PSUs (PWR-1021-AC)
- Front-to-rear airflow, 2 power supplies and 3 fans supplied
- Supplied with 2 x C14 power cords
- 4096 VLANs
- 1 USB port
- Size 48.3 x 4.4 x 31.7 cm (1RU), weight 6.9 kg

FAQs

Q: How many PoE devices can the CCS-720XP-48Y6-2F-C14 power?
A: All 48 RJ45 ports support 802.3af/at PoE+ at up to 30W per port. The PoE budget is 982W with a single power supply and 1850W with both power supplies installed.

Q: What uplink options does this switch have?
A: It has 6 x 25G SFP28 uplink ports, which also support 10G and 1G optics for flexible connections to the distribution or core layer.

Q: What does the -2F-C14 suffix mean?
A: This bundle includes front-to-rear airflow, 2 power supplies and fans, and 2 C14 power cords, so it is ready for redundant power deployment.

Q: Does the switch support Layer 3 routing?
A: Yes. It is a managed Layer 3 campus switch running Arista EOS, with IPv4/v6 VRF and VXLAN support for segmentation and overlays.

Q: How is the switch managed?
A: It is managed through Arista EOS and can be integrated with Arista Cognitive Campus services and CloudVision for centralised management.

Q: What is the form factor?
A: It is a 1RU rack-mount switch measuring 48.3 x 4.4 x 31.7 cm and weighing 6.9 kg.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
