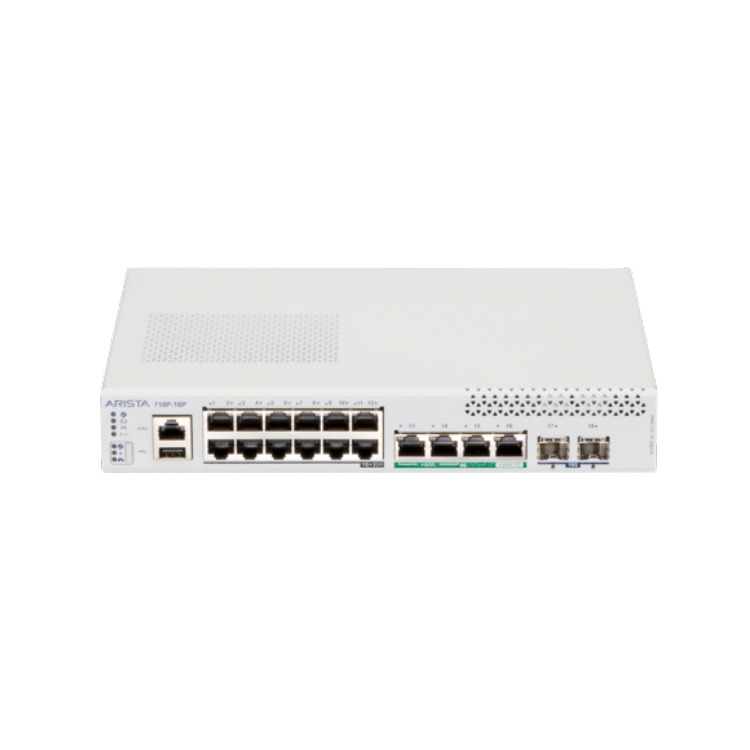

• White arista ccs-710p-16p fanless 16-port poe+ network switch with 2x 10g sfp+ and ventilation grilles shown from back
1 1

Arista

Arista CCS-710P-16P# | CCS-710P Fanless 16-Port PoE+ Switch, 2x 10G SFP+

Arista CCS-710P-16P# | CCS-710P Fanless 16-Port PoE+ Switch, 2x 10G SFP+

CCS-710P-16P#

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The Arista CCS-710P-16P is a compact, fanless Layer 3 PoE+ switch purpose-built to extend the Cognitive Campus network into noise-sensitive and space-constrained environments. With 12 x 1G PoE+, 2 x 5G PoE+, and 2 x 10G SFP+ uplinks, it delivers enterprise-grade wired connectivity for conference rooms, retail showrooms, broadcast control rooms, classrooms, and ATMs — all without a fan or dedicated power source when powered via its 802.3bt PD/PSE port (up to 90W input).

Running Arista EOS, the CCS-710P-16P integrates seamlessly into the CloudVision management plane for unified wired and wireless visibility, Zero Touch Provisioning, automated deployment, and advanced security. It supports EVPN and VXLAN with the optional FLX-Lite license, and accepts a wide range of 1G and 10G pluggable optics. Note: power adapter sold separately (280W option available). Buy today from iptrading.com.au — fast shipping and expert service across Australia.

Features

- Fanless, compact and lightweight design — ideal for noise-sensitive and space-constrained environments
- PD/PSE port enables switch to be powered by an upstream 802.3bt PoE switch (up to 90W), removing the need for a dedicated power adapter
- Arista EOS operating system with full Cognitive Campus feature set: automated deployment, configuration, visibility, troubleshooting, and security
- CloudVision integration for unified wired and wireless management via a single Cognitive Management Plane
- Zero Touch Provisioning (ZTP) for rapid, automated network rollout
- Supports EVPN and VXLAN with optional FLX-Lite licence for advanced network virtualisation
- Multiple mounting options including rack and wall mount
- Compatible with a broad range of 1G and 10G pluggable optics and cables on SFP+ uplinks
- CloudVision CUE and CloudVision as-a-Service subscription licensing available
- Backed by Arista 1-Year Limited Hardware Warranty

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 12 x 1G PoE+ copper downlink ports
- 2 x 5G PoE+ copper ports
- 2 x 5G copper ports (1 data only, 1 PD/PSE — 802.3bt, up to 90W input)
- 2 x 10G SFP+ uplink ports (supports 1G and 10G pluggable optics and cables)
- PoE PD input: 802.3bt up to 90W (powers switch and downstream PoE devices)
- Layer 3 managed switch
- Fanless, compact and lightweight form factor
- Operating system: Arista EOS
- Mounting: rack mount and wall mount options supported
- Power adapter sold separately (280W adapter available)

FAQs

Q: Can the CCS-710P-16P operate without a dedicated power adapter?
A: Yes. The switch includes a PD/PSE port that accepts 802.3bt PoE input (up to 90W), allowing it to be powered directly from an upstream PoE switch. This eliminates the need for a separate power source in many deployments. A 280W power adapter is also available separately for installations requiring higher PoE budgets.

Q: What environments is the CCS-710P-16P best suited for?
A: Its fanless, compact design makes it ideal for noise-sensitive or space-constrained locations such as conference rooms, retail showrooms, broadcast control rooms, classrooms, bank ATMs, and similar edge locations where a traditional 1U rack switch would be impractical or too loud.

Q: What management platform does the CCS-710P-16P use?
A: The switch runs Arista EOS and integrates with CloudVision (on-premises or as-a-Service) for unified wired and wireless management via a single Cognitive Management Plane. It supports Zero Touch Provisioning (ZTP) for automated deployment, along with advanced visibility, troubleshooting, and security capabilities.

Q: Does the CCS-710P-16P support VXLAN and EVPN?
A: Yes, EVPN and VXLAN are supported with the optional FLX-Lite license, enabling advanced network virtualisation and segmentation for enterprise campus deployments.

Q: What optics are compatible with the 10G SFP+ ports?
A: The two SFP+ uplink ports support a wide range of Arista-compatible 1G and 10G pluggable optics and direct-attach cables (DAC/AOC), providing flexible fibre or copper uplink options to aggregation or core switches.

Q: Can I purchase the Arista CCS-710P-16P in Australia from IP Trading?
A: Yes. IP Trading (iptrading.com.au) is a specialist B2B IT hardware reseller stocking Arista switches for Australian businesses. We offer fast shipping and expert pre- and post-sales support nationwide. Contact our team for volume pricing or configuration advice.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
