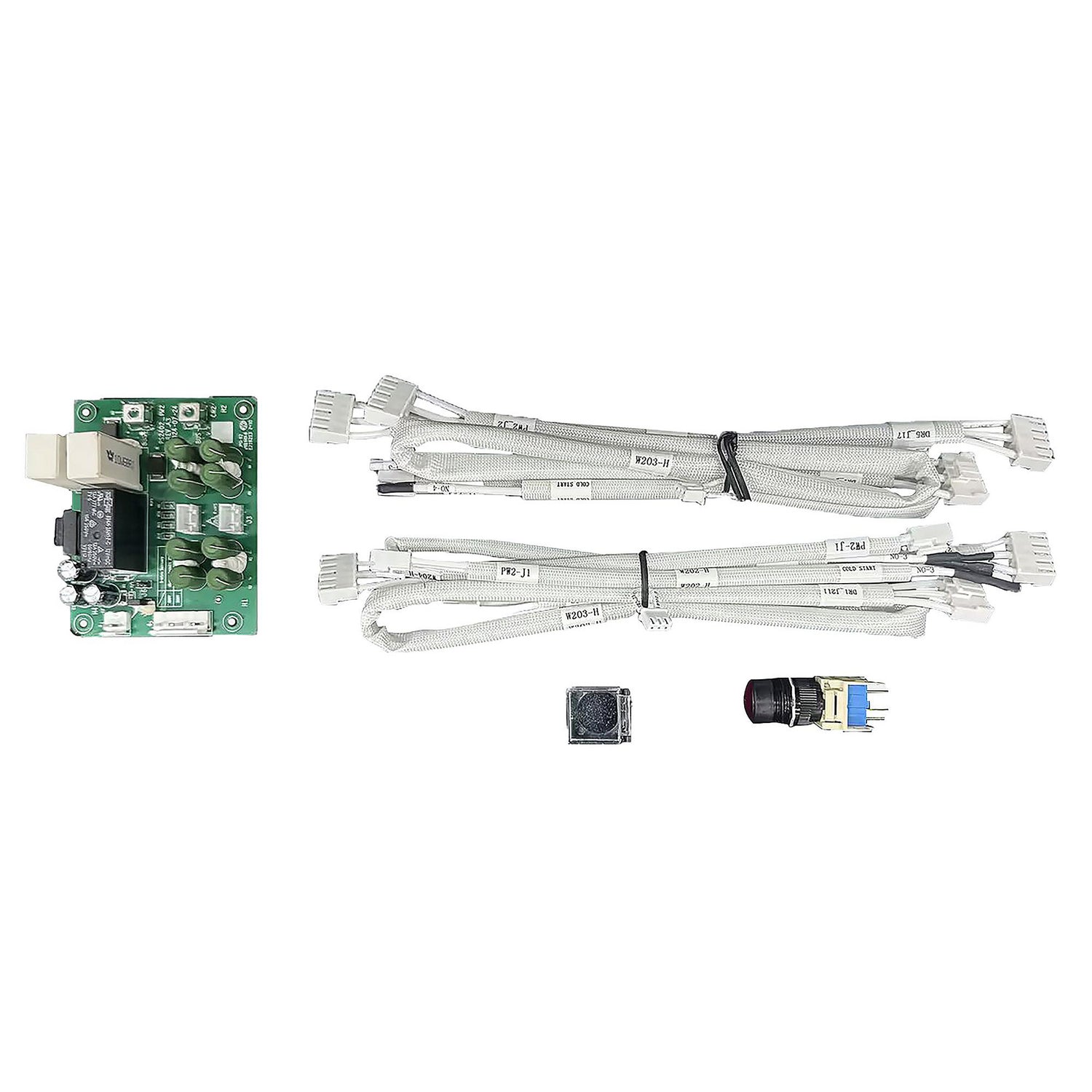

• Green circuit board with electronic components and connectors for apc e3spopt001 easy ups 3s pro cold start kit
1 1

APC

APC E3SPOPT001 | Easy UPS 3S Pro Cold Start Kit, 10-40kVA, 400V, 3:3

APC E3SPOPT001 | Easy UPS 3S Pro Cold Start Kit, 10-40kVA, 400V, 3:3

Authorised APC Partner

E3SPOPT001

Stock Status: Enquire

$95.38 inc. GST
$86.71 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Easy UPS 3S Pro Cold Start Kit is a field-installable UPS accessory that lets Easy UPS 3S Pro three-phase (3:3) 400V systems rated 10 kVA to 40 kVA start up on battery power when no mains supply is present. It is designed for configurations that use external battery strings, giving critical sites a reliable way to bring the UPS online from battery alone.

The kit includes the cold start board, cold start button and the required cabling, so it can be fitted on site without factory service. It supports the full 10-40 kVA Easy UPS 3S Pro range in the 400V, three-phase in and three-phase out topology.

Features

- Enables cold start so the UPS can power on and supply load from battery without mains present
- Designed for Easy UPS 3S Pro 400V, 3:3 three-phase topology
- Supports the full 10 kVA to 40 kVA Easy UPS 3S Pro family
- Suited to external battery string configurations
- Field-installable, no factory service required
- Includes cold start board, button and all required cabling

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

APC Replacement Battery Finder

Technical Specifications

- Compatible UPS family: APC Easy UPS 3S Pro
- Power range: 10 kVA to 40 kVA
- Voltage: 400V
- Topology: 3:3 (three-phase input, three-phase output)
- Application: External battery string configurations
- Kit contents: cold start board, cold start button and cables
- Installation: field-installable option kit
- UPC/EAN: 731304771753

FAQs

Q: Which UPS systems is the E3SPOPT001 compatible with?
A: It is designed for APC Easy UPS 3S Pro three-phase (3:3) 400V UPS systems in the 10 kVA to 40 kVA range.

Q: What does a cold start kit do?
A: It allows the UPS to start up and supply the load from battery power when no mains supply is present.

Q: Is this kit for internal or external battery configurations?
A: It is intended for configurations that use external battery strings.

Q: What is included in the kit?
A: The kit includes the cold start board, a cold start button and the required cables.

Q: Can the kit be installed on site?
A: Yes, it is a field-installable option kit and does not require factory service.

Q: Does it work with single-phase UPS models?
A: No, it is specified for the 400V, 3:3 (three-phase in and three-phase out) Easy UPS 3S Pro models.
