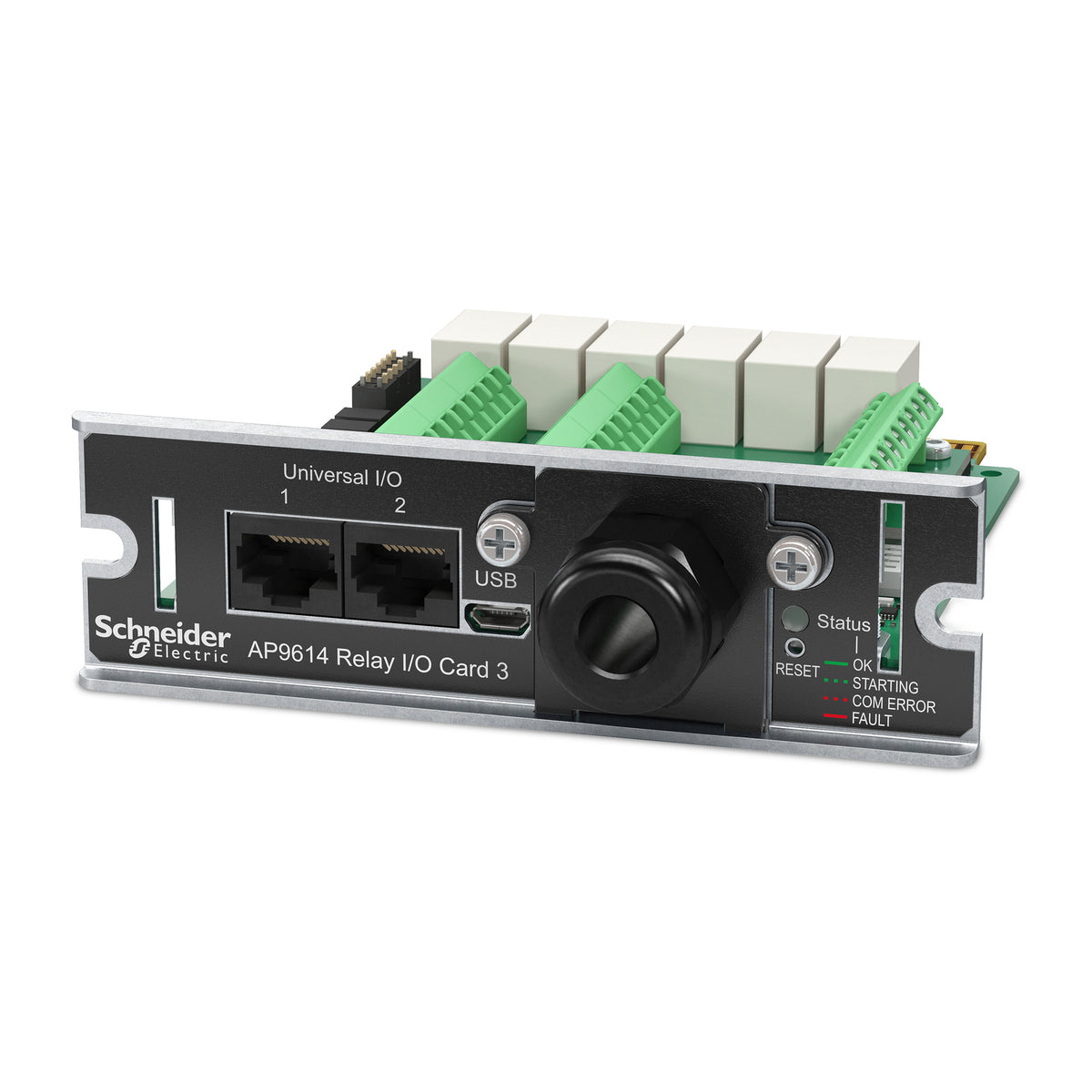

APC AP9614 | Dry Contact I/O SmartSlot Card, 6 Relays, 4 Inputs

Authorised APC Partner

SKU:AP9614

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The APC AP9614 Dry Contact I/O Card is a SmartSlot UPS management accessory that adds 6 configurable output relays and 4 input contacts to compatible APC UPS units rated 160 kVA or below. It lets you connect external dry-contact devices such as buttons, door sensors, alarm panels and float switches directly to your UPS.

Two Universal I/O ports accept optional temperature or temperature/humidity probes, or the Dry Contact I/O accessory, so environmental conditions around the UPS can be monitored alongside power status. Connected devices are monitored and actions can be configured in response to status changes or UPS events through the dynamic web UI. The card is self-powered via the SmartSlot and includes a mini-USB port with a USB cable.

Features

- Provides 6 configurable output relays and 4 input contacts
- Universal I/O ports support optional environmental sensors and the Dry Contact I/O Accessory
- Monitor connected devices via the dynamic web UI
- Configure actions in response to status changes or UPS events via the dynamic web UI
- Connects buttons, door sensors, alarm panels or float switches to the UPS

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 6 x configurable output relays
- 4 x input contacts
- 2 x Universal I/O ports (temperature or temperature/humidity probe, or Dry Contact I/O accessory)
- 1 x mini-USB port
- For UPS devices with a SmartSlot, 160 kVA or below
- Rated voltage 24 V, rated current 0 to 200 mA
- Self powered via SmartSlot
- Dimensions: 3.8 cm (H) x 12.1 cm (W) x 12.8 cm (D)
- Net weight: 0.20 kg
- Included: user manual, USB cable (mini-USB to USB-A)

FAQs

Q: Which UPS units is the AP9614 compatible with?
A: It is designed for APC UPS devices that have a SmartSlot and are rated 160 kVA or below.

Q: How many relays and input contacts does the card provide?
A: The card provides 6 configurable output relays and 4 input contacts, plus 2 Universal I/O ports.

Q: Can I connect environmental sensors to the card?
A: Yes. The two Universal I/O ports support a temperature or temperature/humidity probe, or the Dry Contact I/O accessory.

Q: Does the card need its own power supply?
A: No. It is self-powered via the UPS SmartSlot.

Q: How is the card configured and monitored?
A: Connected devices are monitored and actions are configured in response to status changes or UPS events through the dynamic web UI.

Q: What is included with the card?
A: The card ships with a user manual and a mini-USB to USB-A cable.
