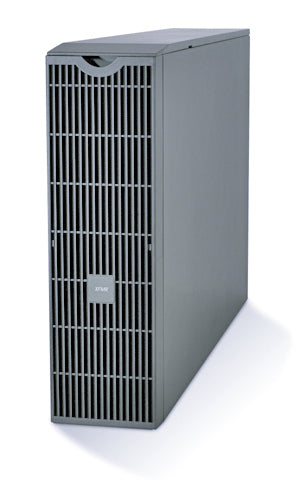

• APC SURT002 Smart-UPS RT 5000VA isolation transformer gray server rack front
1 1

APC

APC SURT002 | Smart-UPS RT Isolation Transformer, 5000VA, 230V, Hard Wire

APC SURT002 | Smart-UPS RT Isolation Transformer, 5000VA, 230V, Hard Wire

Authorised APC Partner

SURT002

Stock Status: Enquire

$2,840.56 inc. GST
$2,582.33 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Smart-UPS RT Isolation Transformer is an external 5000VA accessory for APC Smart-UPS RT systems, delivering 230V in and 230V out through a 1x hard wire 3-wire (H N + E) connection. It provides galvanic isolation between the mains supply and connected UPS loads, and a built-in circuit breaker offers circuit protection.

The 3U, 19 inch rack-mountable chassis suits server rooms and equipment racks, with an optional rack mounting kit for installation. It supports 220V to 240V nominal input and output at 50/60 Hz, which makes it a practical match for Smart-UPS RT deployments that need voltage isolation.

Features

- 5000VA capacity for Smart-UPS RT systems
- Isolation transformer with 230V in and out, supporting 220V and 240V
- Hard-wired 3-wire (H N + E) input and output connection
- Built-in circuit breaker protection
- 3U rack-mountable with optional rack kit

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Device type: External isolation transformer
- Power capacity: 5000VA
- Input voltage: 230V AC (220 - 240V AC range)
- Output voltage: 230V AC
- Frequency: 50/60 Hz
- Input connection: Hard wire 3-wire (H N + E)
- Output connection: Hard wire
- Circuit protection: Circuit breaker
- Form factor: 19 inch rack, 3U (optional rack mounting kit)
- Dimensions (W x D x H): 17 in x 26 in x 5.1 in
- Weight: 125.22 lbs
- Operating temperature: 0 to 40 C
- Storage temperature: -25 to 65 C
- Operating and storage humidity: 5 - 95%
- Colour: Black

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What is the SURT002 designed to be used with?
A: It is an external isolation transformer accessory for APC Smart-UPS RT systems, rated at 5000VA with 230V input and output.

Q: How is the SURT002 connected to power and the load?
A: It uses hard-wired connections. Input is 1x hard wire 3-wire (H N + E) and output is hard wire, so installation by a qualified electrician is required.

Q: Can the SURT002 be rack mounted?
A: Yes. It is a 3U unit for 19 inch racks, and an optional rack mounting kit is used for installation.

Q: What input and output voltages does it support?
A: It is rated at 230V AC in and out, and supports a 220V to 240V range at 50/60 Hz.

Q: Does the SURT002 include circuit protection?
A: Yes. It has a circuit breaker for circuit protection.

Q: How heavy is the SURT002?
A: It weighs approximately 125.22 lbs (about 56.8 kg), so plan for suitable rack support and a two-person lift.
