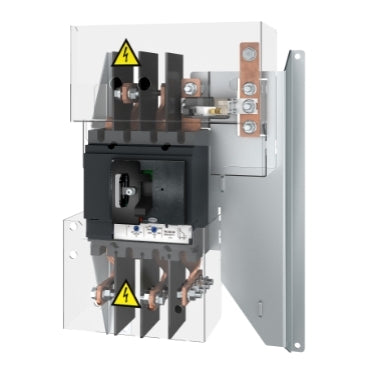

• APC E3MBBK60K80H Easy UPS 3M battery breaker kit with black circuit breaker
1 1

APC

APC E3MBBK60K80H | Easy UPS 3M Battery Breaker Kit, 60-80 kVA, 400 V

APC E3MBBK60K80H | Easy UPS 3M Battery Breaker Kit, 60-80 kVA, 400 V

Authorised APC Partner

E3MBBK60K80H

Stock Status: Enquire

$1,137.23 inc. GST
$1,033.85 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC E3MBBK60K80H is an Easy UPS 3M battery breaker kit for 400 V UPS systems rated 60-80 kVA. It controls and isolates the DC voltage sent from external battery strings to the UPS, supporting up to four VRLA battery strings through a Compact NSX250S DC breaker.

The kit provides a protected disconnect point for the battery circuit, simplifying maintenance and fault handling. It is also suited to third-party battery solutions connected to the UPS. For larger 100-200 kVA systems, the sibling kit E3MBBK100K200H is the matching option, and installation guide 990-5997 covers both kits.

Features

- Isolates and protects the battery circuit for maintenance and fault handling
- Controls the DC voltage from external battery strings to the UPS
- Compact NSX250S DC breaker, with trip settings published for 60 and 80 kVA configurations
- Supports up to four battery strings
- Installation guide 990-5997 covers this kit and the E3MBBK100K200H

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

APC Replacement Battery Finder

Technical Specifications

- Compatible with Easy UPS 3M 60-80 kVA, 400 V
- Battery breaker: Compact NSX250S DC (LV438990 or C25S4TM250D)
- Supports up to 4 battery strings per breaker
- Battery type: VRLA
- Battery mounting: Enclosed battery cabinet
- Dimensions (H x W x D): 415 x 288 x 190 mm
- Net weight: 7.0 kg

FAQs

Q: Which UPS systems is the E3MBBK60K80H compatible with?
A: It is designed for Easy UPS 3M 400 V systems rated 60-80 kVA.

Q: How many battery strings can this kit support?
A: The Compact NSX250S DC breaker supports up to four battery strings.

Q: What battery type does the kit work with?
A: It is specified for VRLA batteries mounted in an enclosed battery cabinet.

Q: What is the difference between the E3MBBK60K80H and the E3MBBK100K200H?
A: The E3MBBK60K80H is for 60-80 kVA, 400 V systems, while the E3MBBK100K200H is the matching kit for 100-200 kVA systems.

Q: Can it be used with third-party battery solutions?
A: Yes, the kit controls the DC voltage from third-party battery solutions to the UPS.

Q: What are the dimensions and weight of the kit?
A: It measures 415 x 288 x 190 mm (H x W x D) and has a net weight of 7.0 kg.
