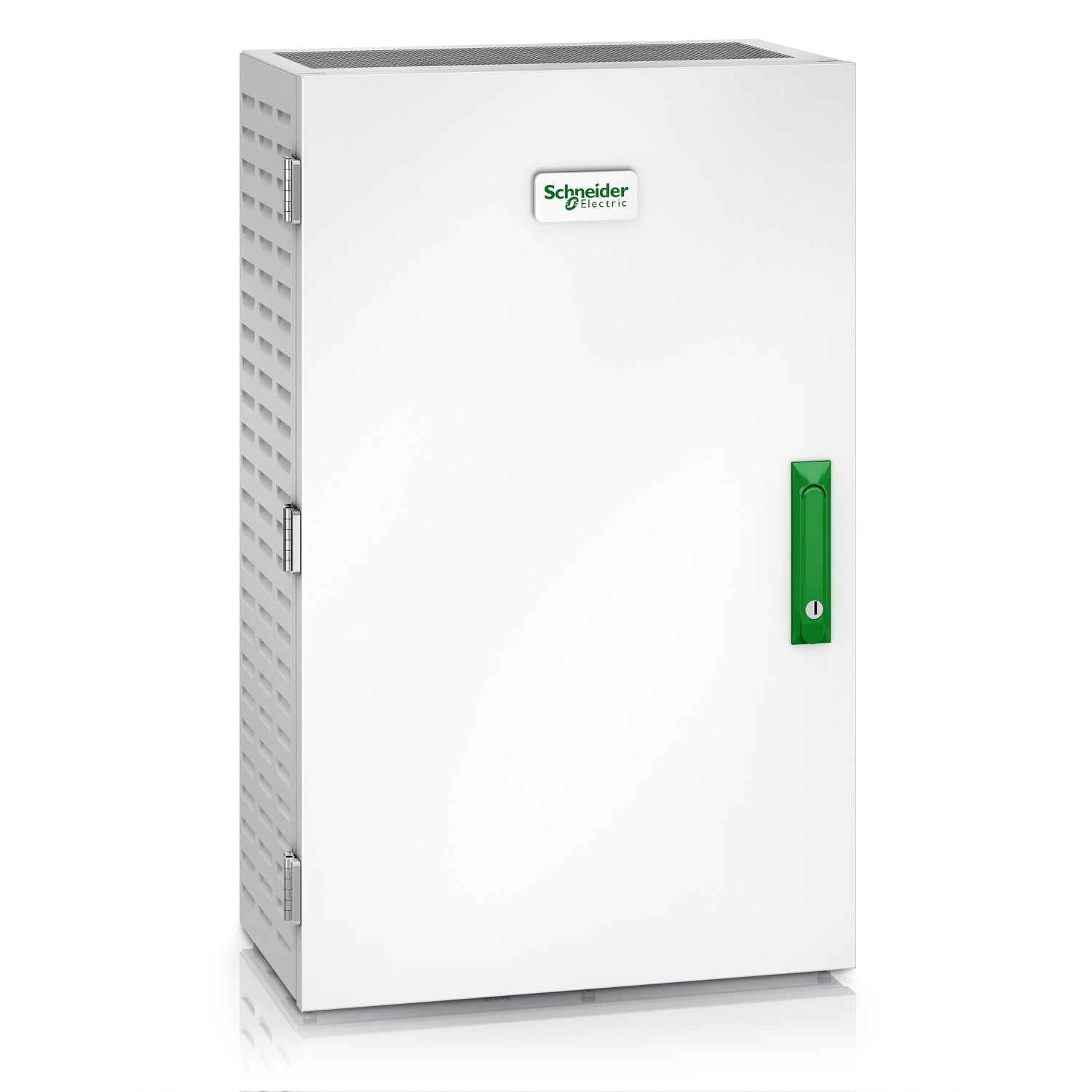

• White schneider electric easy ups 3m battery breaker box with green handle and side ventilation slots 630a 100 200 kva
1 1

APC

APC E3MBBB100K200H | Easy UPS 3M/3L Battery Breaker Box, 630A, One Circuit Breaker, 100–200 kVA

APC E3MBBB100K200H | Easy UPS 3M/3L Battery Breaker Box, 630A, One Circuit Breaker, 100–200 kVA

E3MBBB100K200H

Stock Status: Enquire

$2,794.93 inc. GST
$2,540.85 ex. GST
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The APC Easy UPS 3M/3L Battery Breaker Box is a wall-mounted 630A breaker enclosure designed for connecting third-party battery cabinets to APC Easy UPS 3M and Easy UPS 3L systems rated at 100–200 kVA (400V). Featuring Schneider Electric circuit breakers, this unit is a required component when deploying external or third-party battery solutions with these UPS platforms, ensuring safe and compliant battery integration in demanding enterprise and data centre environments.

Supporting VRLA battery types and rated for operating temperatures from 0–40 °C, this breaker box is built for reliable long-term deployment. Its compact wall-mounted form factor (800 × 500 × 280 mm, 38 kg) suits equipment rooms where rack space is at a premium. In stock and ready to ship from iptrading.com.au — order now for fast dispatch.

Features

- Wall-mounted battery breaker box for safe integration of third-party battery solutions
- Schneider Electric circuit breakers for reliable overcurrent protection
- Required accessory when deploying external/third-party batteries with Easy UPS 3M or 3L
- Supports VRLA battery type compatibility
- Enclosed cabinet mounting for organised, protected battery connections
- Includes installation guide for straightforward deployment
- Compact form factor suits equipment rooms and electrical enclosure areas

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Breaker Rating: 630A
- Number of Circuit Breakers: 1
- Compatible UPS: APC Easy UPS 3M / Easy UPS 3L (100–200 kVA, 400V)
- Battery Type: VRLA
- Installation Type: Wall-mounted (not rack-mountable)
- Maximum Height: 800 mm
- Maximum Width: 500 mm
- Maximum Depth: 280 mm
- Net Weight: 38.0 kg
- Operating Temperature: 0–40 °C
- Operating Relative Humidity: 0–95% (non-condensing)
- Operating Elevation: 0–1,500 m
- Circuit Breaker Brand: Schneider Electric

FAQs

Q: What UPS systems is the E3MBBB100K200H compatible with?
A: This battery breaker box is designed specifically for the APC Easy UPS 3M and Easy UPS 3L series, covering UPS systems rated at 100–200 kVA at 400V.

Q: Is this breaker box required when adding third-party battery cabinets to the Easy UPS 3M or 3L?
A: Yes. The E3MBBB100K200H is a required component when connecting third-party or external battery solutions to the Easy UPS 3M or 3L UPS platforms, ensuring safe and compliant battery circuit protection.

Q: How is the E3MBBB100K200H installed — rack-mount or wall-mount?
A: This unit is wall-mounted only. It is not rack-mountable. Its dimensions are 800 mm (H) × 500 mm (W) × 280 mm (D), making it suitable for installation in equipment rooms or alongside battery enclosures.

Q: What is the breaker rating, and how many circuit breakers does this unit include?
A: The E3MBBB100K200H is rated at 630A and includes one Schneider Electric circuit breaker.

Q: Can I purchase the E3MBBB100K200H in Australia through IP Trading?
A: Yes. IP Trading stocks the APC E3MBBB100K200H and ships Australia-wide. Units are available for fast dispatch from iptrading.com.au.

Q: What battery type does this breaker box support?
A: The E3MBBB100K200H supports VRLA (Valve-Regulated Lead-Acid) battery types, consistent with the APC Easy UPS 3M and 3L battery ecosystem.
