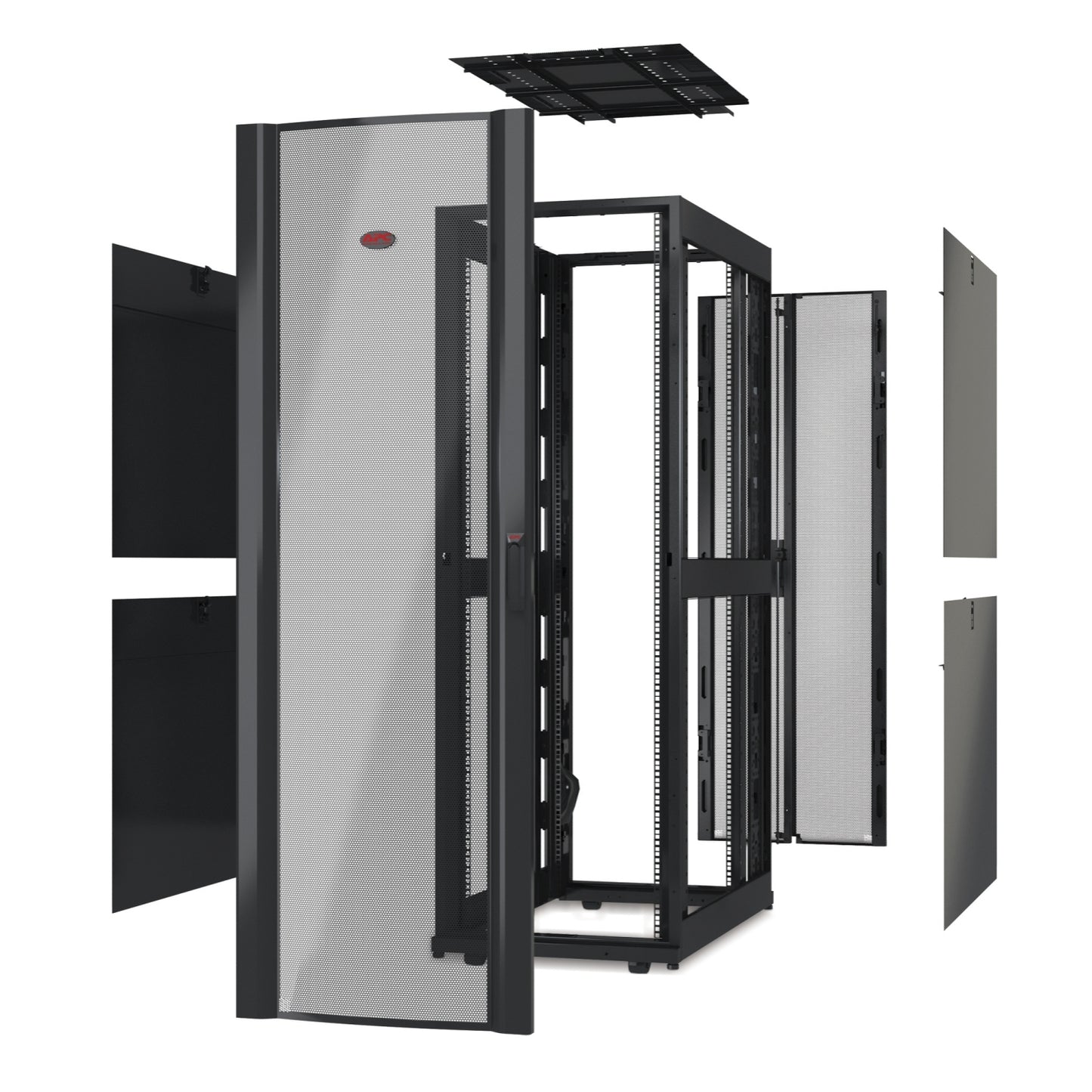

• APC AR3100X617 NetShelter SX 42U black server rack with mesh panel
1 1

APC

APC AR3100X617 | NetShelter SX 42U Rack, 600x1070mm, No Sides/Doors, Black

APC AR3100X617 | NetShelter SX 42U Rack, 600x1070mm, No Sides/Doors, Black

Authorised APC Partner

AR3100X617

Stock Status: Enquire

$2,378.83 inc. GST
$2,162.57 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC NetShelter SX 42U freestanding rack enclosure is built for low to medium density server and network deployments. This variant measures 600mm wide x 1070mm deep, is finished in black and is supplied without side panels and without doors, making it well suited to open or cage-style data centre layouts.

The compact 600mm width helps optimise floor space, and the 42U height lets the rack roll through standard doorways. Pre-installed casters, leveling feet and baying hardware are included, so multiple racks can be joined into a continuous row.

Features

- Standard enclosure for low to medium density server and networking applications
- Compact 600mm width to optimise data centre space
- 42U height allows the rack to roll easily through doorways
- Pre-installed casters and leveling feet
- Baying hardware included for joining multiple racks
- 19-inch EIA mounting rails for standard rack equipment

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

APC Replacement Battery Finder

Technical Specifications

- 42U rack height
- Height: 1991 mm
- Width: 600 mm
- Depth: 1070 mm
- Net weight: 76.36 kg
- Colour: Black
- Maximum mounting depth: 91.49 cm
- 19-inch (48.3 cm) EIA mounting rails
- Supplied without side panels and without doors
- Includes baying hardware, leveling feet, mounting hardware and pre-installed casters

FAQs

Q: Does this rack include side panels and doors?
A: No. The AR3100X617 is supplied without side panels and without doors.

Q: What are the dimensions of this rack?
A: It is 42U high (1991 mm), 600 mm wide and 1070 mm deep, with a maximum mounting depth of 91.49 cm.

Q: Can I join multiple racks together?
A: Yes. Baying hardware is included, so several racks can be bayed side by side.

Q: Does it come with casters?
A: Yes. Casters are pre-installed and leveling feet are also included for fixed positioning.

Q: What type of equipment can be mounted?
A: It has 19-inch (48.3 cm) EIA mounting rails for standard rack-mount servers, switches and other network equipment.

Q: What density of deployment is this rack suited to?
A: It is designed as a standard enclosure for low to medium density server and networking applications.
