Ubiquiti UACC-RACK-12U-WALL-600-G | UACC Rack 12U Wall-Mount Cabinet, 600mm Depth, Glass Door

Ubiquiti UACC-RACK-12U-WALL-600-G | UACC Rack 12U Wall-Mount Cabinet, 600mm Depth, Glass Door

Authorised Ubiquiti Partner

SKU:UACC-Rack-12U-Wall-600-G

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

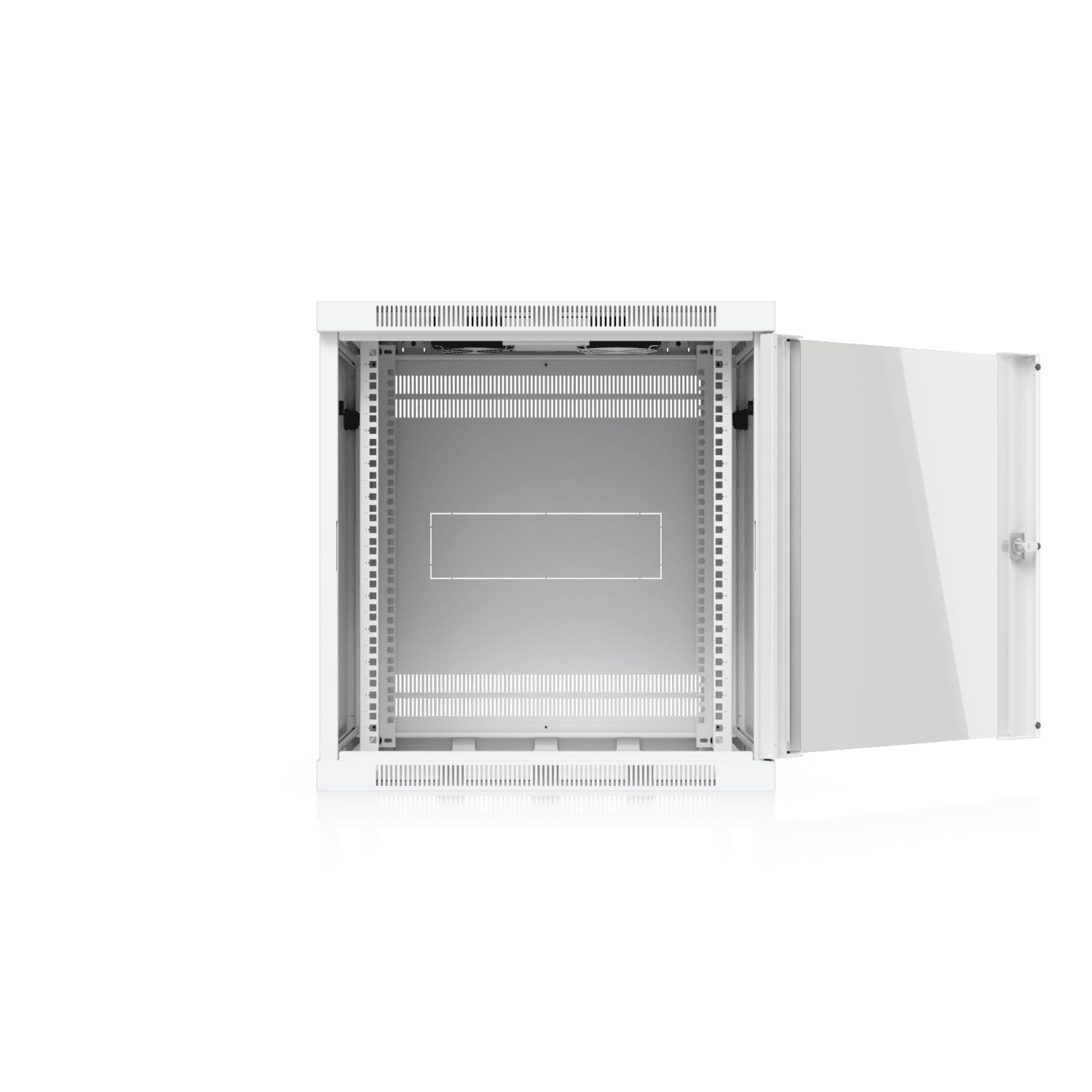

The UACC Rack 12U wall-mount rack cabinet is a fully assembled, 4-post enclosed 12U enclosure with a 600mm depth and a lockable tempered glass front door. It is built for space-efficient small-scale network deployments such as branch offices, retail sites and comms rooms where floor space is limited. The SPCC steel construction in white powder coat supports up to 80 kg of equipment.

The front door is reversible and the two solid side panels are removable and lockable, giving secure but easy access when installing or servicing gear. Mounting depth is adjustable from 448 to 508 mm, and grounding lugs plus cable entry openings at the rear, top and bottom help keep cabling tidy. It suits Ubiquiti rack-mount devices up to 325 mm deep.

Features

- Fully assembled wall-mount rack ready to install
- Lockable tempered glass front door with reversible swing
- Removable and lockable solid side panels for secure access
- Adjustable mounting depth to suit different equipment
- Grounding lugs and multiple cable entry openings
- Space-efficient design for small-scale deployments
- NDAA compliant

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- 12U, 4-post enclosed wall-mount cabinet
- Tempered glass front door, reversible and lockable
- 600 mm depth (rack dimensions 598 x 600 x 639 mm)
- Maximum weight capacity 80 kg
- Adjustable mounting depth 448-508 mm (20 mm pitch)
- Square mounting holes
- SPCC steel, white powder coat finish
- 2 x solid removable, lockable side panels
- Grounding lugs
- Cable entry openings: rear 350 x 100 mm, top and bottom 336.5 x 52.5 mm
- Security: 1 front door lock, 4 side panel locks, 2 keys
- Rack weight 28.2 kg
- Standards: CE, EIA/ECA-310-E, RoHS
- NDAA compliant

FAQs

Q: How much weight can this 12U wall-mount rack hold?
A: The maximum weight capacity is 80 kg. The rack itself weighs 28.2 kg, so make sure the wall and fixings are rated for the combined load.

Q: What equipment depth does it support?
A: Mounting depth is adjustable from 448 to 508 mm and the cabinet suits Ubiquiti rack-mount devices up to 325 mm deep. For 325 mm devices the mounting depth must be set to 305 mm maximum, and DC power backup is not supported in that case.

Q: Can the door and side panels be locked?
A: Yes. The tempered glass front door has a lock and each of the two solid side panels has its own locks, with two keys supplied.

Q: Can the glass door swing direction be changed?
A: Yes. The door is set to a left-hand outswing by default and is reversible.

Q: Is the rack delivered assembled?
A: Yes, it is a fully assembled wall-mount rack with removable panels.

Q: How does cabling enter the cabinet?
A: There are cable entry openings in the rear wall (350 x 100 mm), top (336.5 x 52.5 mm) and bottom (336.5 x 52.5 mm), plus grounding lugs.
