Description

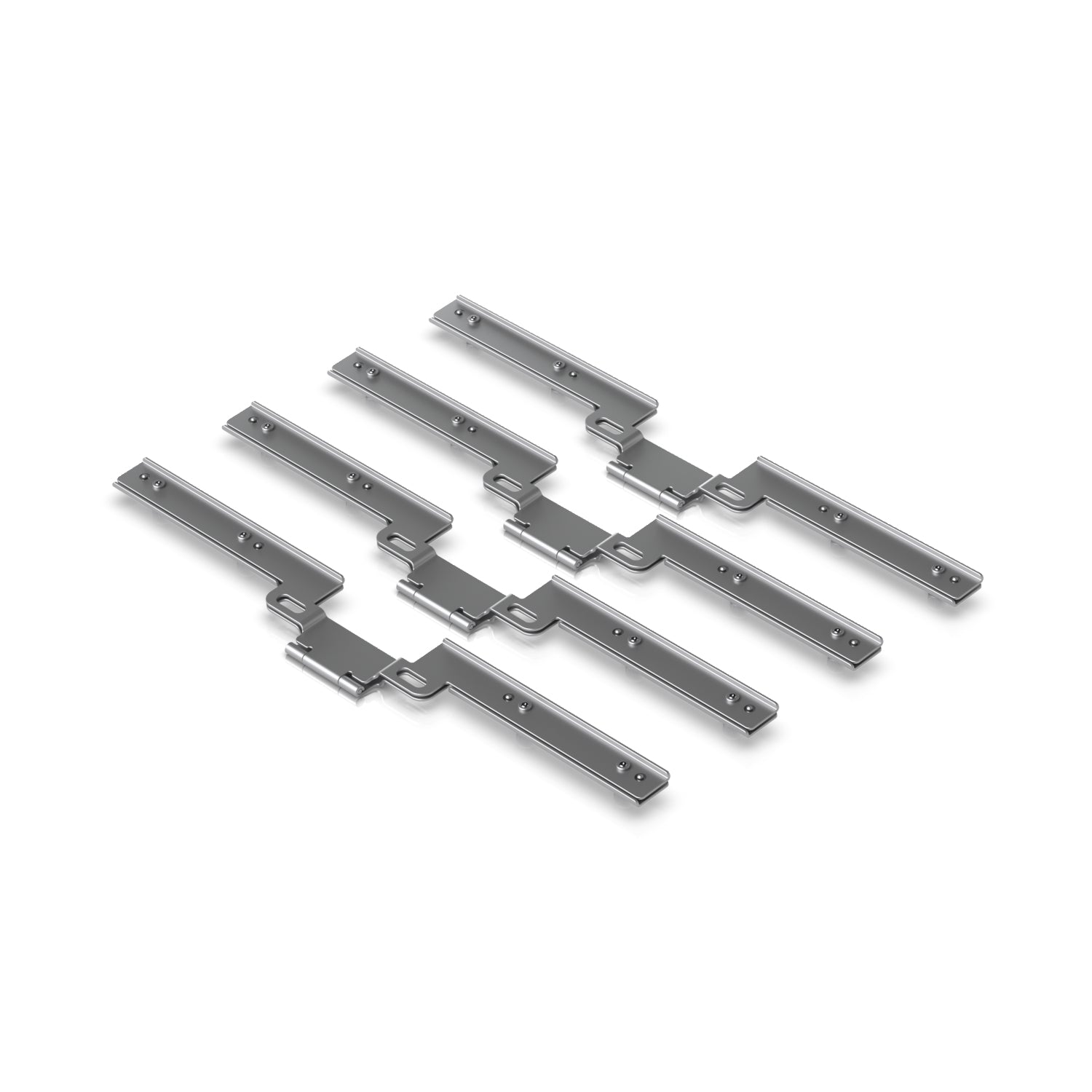

The UACC-RACK-STACKING-KIT is a 12U rack stacking kit that connects two Toolless Mini Racks (U-Rack-6U-TL) into a single 12U network rack. It suits small offices, branch sites and AV or comms cabinets that need more mounting space than one 6U rack provides, without moving to a full-size cabinet.

The kit is built from cold rolled carbon steel (SPCC) with a liquid-painted finish and weighs 589 g. Assembly is toolless, so two Toolless Mini Racks can be joined quickly, and the stacked pair measures 460 x 525.5 x 838 mm including handle and caster.

Features

- Connects two Toolless Mini Racks to create a 12U network rack
- Toolless assembly for fast installation
- Steel construction with liquid-painted finish
- Expands rack capacity without moving to a full-size cabinet

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Connects 2 x Toolless Mini Racks into a 12U rack
- Compatible with U-Rack-6U-TL Toolless Mini Rack
- Toolless assembly
- Material: cold rolled carbon steel (SPCC), liquid painted
- Kit dimensions: 500 x 68.2 x 21.7 mm
- Kit weight: 589 g
- Stacked 2x Toolless Mini Racks (with handle and caster): 460 x 525.5 x 838 mm, 21.9 kg

FAQs

Q: Which racks does the UACC-RACK-STACKING-KIT work with?
A: It is designed for the Toolless Mini Rack, model U-Rack-6U-TL. One kit connects two of these racks.

Q: How much rack space do I get once the racks are stacked?
A: Stacking two 6U Toolless Mini Racks with this kit creates a single 12U network rack.

Q: Do I need tools to install the stacking kit?
A: No. The kit is designed for toolless, easy assembly.

Q: Are the Toolless Mini Racks included?
A: No. This is the stacking accessory only. You need two compatible U-Rack-6U-TL Toolless Mini Racks.

Q: What is the stacking kit made of?
A: It is made from cold rolled carbon steel (SPCC) with a liquid-painted finish, and weighs 589 g.

Q: What are the dimensions of two stacked racks?
A: Two Toolless Mini Racks stacked with handle and caster measure 460 x 525.5 x 838 mm and weigh 21.9 kg.
