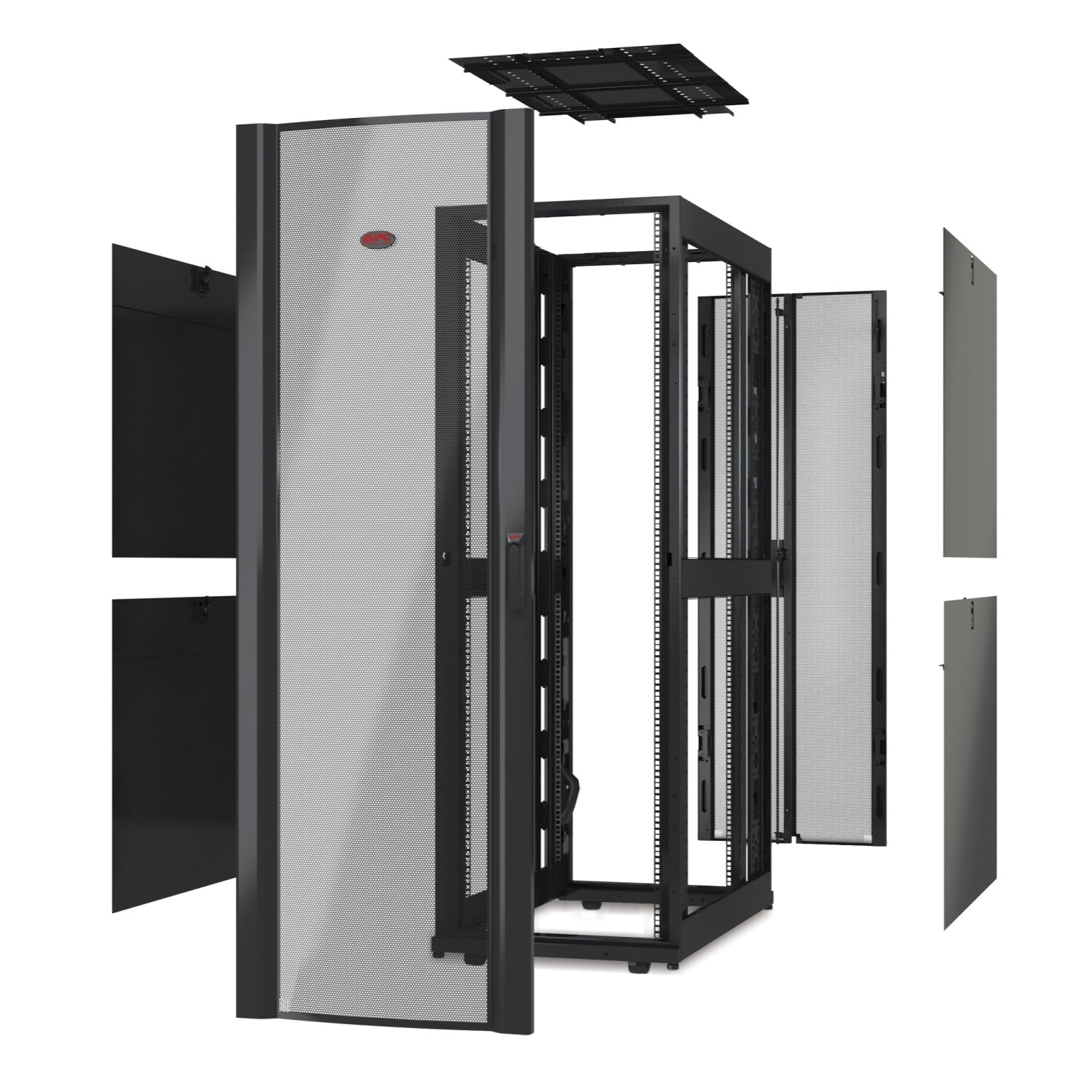

• APC AR3100X610 NetShelter SX 42U black server rack with mesh front panel
1 1

APC

APC AR3100X610 | NetShelter SX 42U Freestanding Rack Enclosure, 600x1070mm, No Doors, Black

APC AR3100X610 | NetShelter SX 42U Freestanding Rack Enclosure, 600x1070mm, No Doors, Black

Authorised APC Partner

AR3100X610

Stock Status: Enquire

$2,926.96 inc. GST
$2,660.87 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NetShelter SX AR3100X610 is a 42U freestanding rack enclosure for low to medium density server and networking deployments. Finished in black steel with a compact 600mm width and 1070mm depth, it supplies standard 19-inch EIA-310 mounting while optimising data centre floor space. This variant ships without doors, with side panels included.

Pre-installed full-height rear accessory channels allow toolless mounting of PDUs and vertical cable organisers. A static load capacity of 1360.78 kg and pre-installed casters make installation straightforward, and the 42U height is designed to roll through standard doorways. Baying hardware, keys, levelling feet and mounting hardware are included.

Features

- Standard enclosure for low to medium density server and networking applications
- Compact 600mm width to optimise data centre space
- 42U height to easily roll through doorways
- Pre-installed full-height rear accessory channels for toolless mounting of PDUs and vertical cable organisers
- Side panels, keys, baying hardware and levelling feet included

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

APC Replacement Battery Finder

Technical Specifications

- 42U rack height
- Dimensions: 1991mm H x 600mm W x 1070mm D (78.39 x 23.62 x 42.13 in)
- Static load capacity: 1360.78 kg (3000 lb)
- Dynamic (rolling) load capacity: 1020.58 kg (2250 lb)
- Colour: Black
- Steel construction
- Without doors; side panels included
- Included: baying hardware, keys, levelling feet, mounting hardware, pre-installed casters, side panels
- 19-inch EIA-310 compliant mounting
- TAA compliant

FAQs

Q: Does the AR3100X610 include doors?
A: No. This variant ships without front or rear doors, but side panels are included.

Q: What are the external dimensions of this rack?
A: The enclosure measures 1991mm high x 600mm wide x 1070mm deep.

Q: What load can this rack support?
A: It has a static load capacity of 1360.78 kg (3000 lb) and a dynamic (rolling) load capacity of 1020.58 kg (2250 lb).

Q: Is this rack compatible with standard 19-inch equipment?
A: Yes. It uses 19-inch EIA-310 compliant mounting, suitable for standard servers, switches and other rack-mount equipment.

Q: Can I mount PDUs and cable organisers in this rack?
A: Yes. Pre-installed full-height rear accessory channels allow toolless mounting of PDUs and vertical cable organisers.

Q: What is included in the box?
A: The rack includes baying hardware, keys, levelling feet, mounting hardware, pre-installed casters and side panels.
