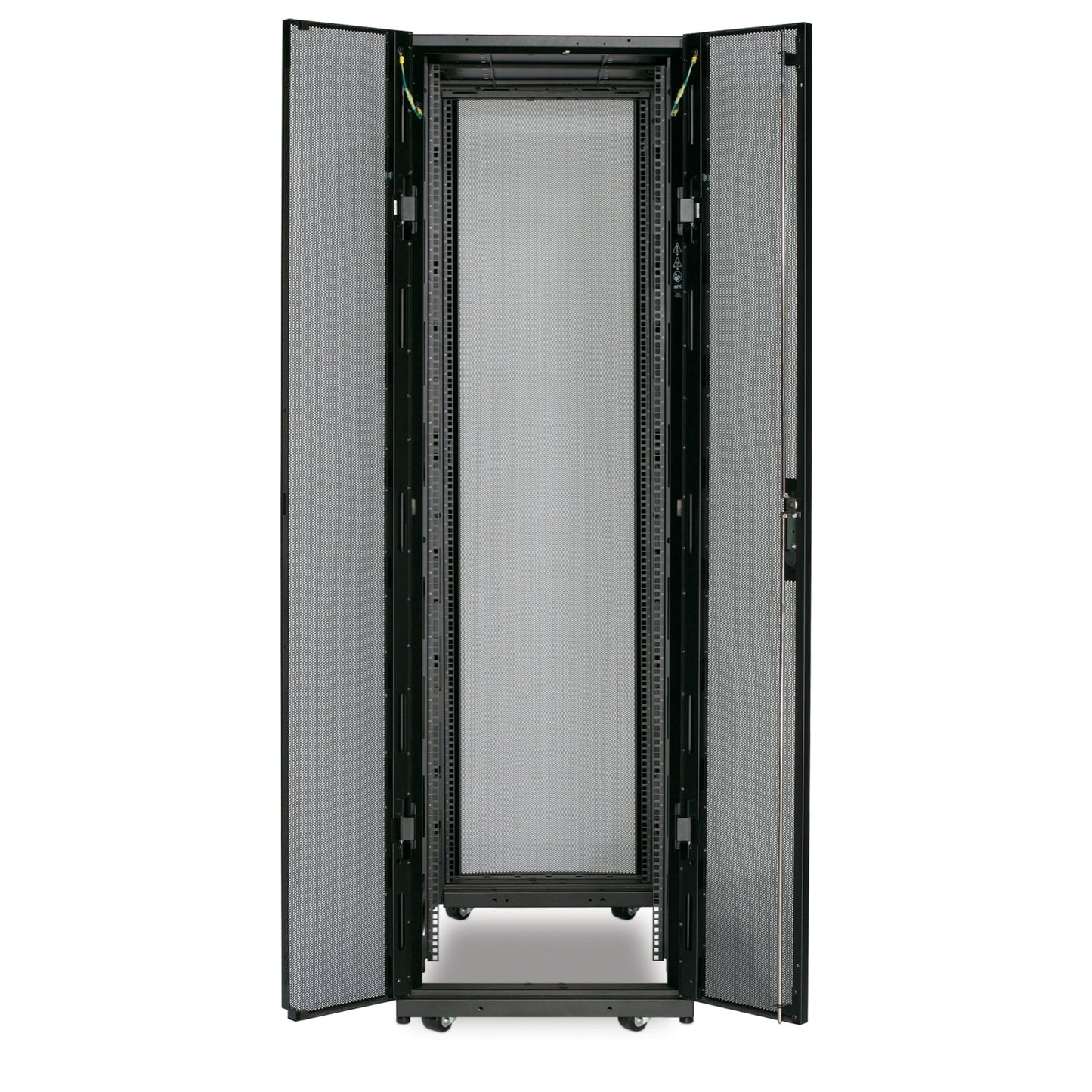

• APC AR3100X609 42U black metal server rack with mesh doors and casters
1 1

APC

APC AR3100X609 | NetShelter SX 42U Freestanding Rack, 600x1070mm, No Sides, Black

APC AR3100X609 | NetShelter SX 42U Freestanding Rack, 600x1070mm, No Sides, Black

Authorised APC Partner

AR3100X609

Stock Status: Enquire

$3,200.07 inc. GST
$2,909.15 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NetShelter SX 42U freestanding rack enclosure is built for low to medium density server and networking deployments. This variant is 600mm wide and 1070mm deep, finished in black and supplied without side panels, making it suited to baying multiple cabinets side by side or to open-access installations.

The 42U height lets the cabinet roll through standard doorways, and pre-installed casters make positioning straightforward. Split rear doors and a compact 600mm footprint help optimise data centre and comms room space, while the enclosure supports cooling, power distribution, cable management and environmental monitoring accessories.

Features

- Standard enclosure for low to medium density server and networking applications
- Compact 600mm width to optimise data centre space
- 42U height to easily roll through doorways
- Split rear doors
- Supplied without side panels for baying or open-access installs
- Supports cooling, power distribution, cable management and environmental monitoring accessories

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

APC Replacement Battery Finder

Technical Specifications

- 42U rack height
- 19-inch rack width
- External dimensions: 1991mm H x 600mm W x 1070mm D
- Static weight capacity: 3000 lb
- Dynamic (rolling) weight capacity: 2250 lb
- Rail material gauge: 14
- Roof/top material gauge: 18
- Colour: Black
- Approximate weight: 204 lb
- Supplied without side panels
- Pre-installed casters
- Package contents: baying hardware, installation guide, keys, mounting hardware
- RoHS compliant, Green Premium, TAA compliant

FAQs

Q: Does the AR3100X609 include side panels?
A: No. This model is supplied without side panels. Side panels can be added separately if you need a fully enclosed cabinet.

Q: What are the external dimensions of this rack?
A: The enclosure measures 1991mm high, 600mm wide and 1070mm deep.

Q: What weight can the rack support?
A: It is rated for a static load of 3000 lb and a dynamic (rolling) load of 2250 lb.

Q: Can multiple cabinets be joined together?
A: Yes. Baying hardware is included in the package, so cabinets can be joined side by side.

Q: Is the rack easy to move into position?
A: Yes. Casters are pre-installed and the 42U height is designed to roll through standard doorways.

Q: What accessories does this enclosure support?
A: It supports cooling, power distribution, cable management and environmental monitoring accessories for low to medium density server and networking deployments.
