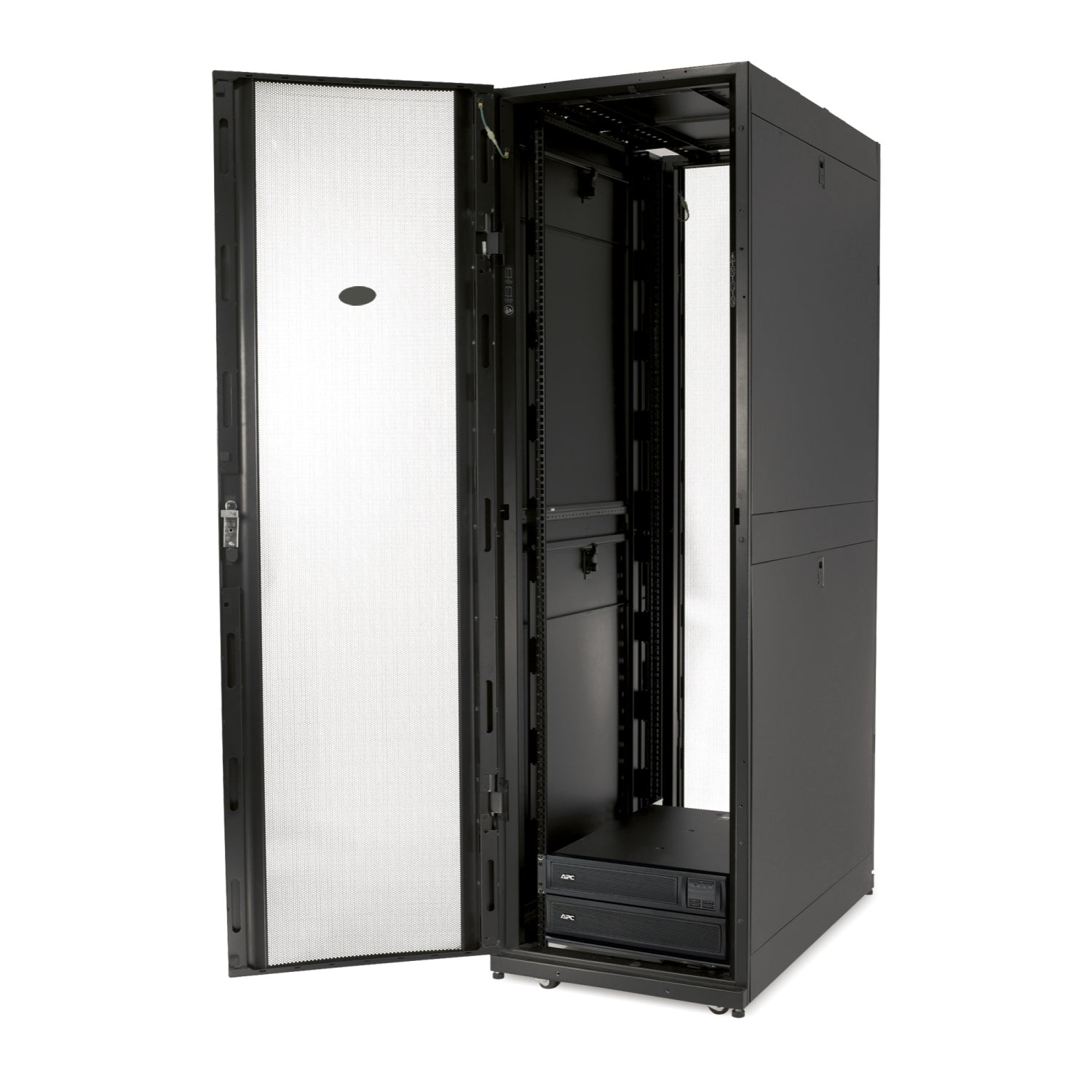

• APC AR3100HACS 42U black rack with white perforated door and stacked network appliances
1 1

APC

APC AR3100HACS | NetShelter SX 42U Freestanding Rack, 600x1070mm, No Rear Doors

APC AR3100HACS | NetShelter SX 42U Freestanding Rack, 600x1070mm, No Rear Doors

Authorised APC Partner

AR3100HACS

Stock Status: Enquire

$3,578.18 inc. GST
$3,252.89 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC NetShelter SX 42U freestanding rack enclosure provides 19-inch EIA-310 mounting in a compact 600mm wide by 1070mm deep black steel cabinet, supplied without rear doors. This TAA-compliant AR3100HACS variant suits low to medium density server and network deployments where rear access is handled separately or doors are fitted from another source.

The 42U height allows the enclosure to roll through standard doorways, while the 600mm width helps optimise data centre floor space. Adjustable mounting rails, pre-installed casters, levelling feet and ground studs are included, and the NetShelter SX platform is designed to work with cooling, power distribution, cable management and environmental monitoring accessories.

Features

- Standard enclosure for low to medium density server and networking applications
- Compact 600mm width optimises data centre space
- 42U height rolls easily through standard doorways
- Adjustable mounting rails
- Designed to integrate with cooling, power distribution, cable management and environmental monitoring

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- 42U rack height, 19-inch EIA-310 mounting
- Freestanding floor-standing form factor
- Dimensions approx. 1991mm H x 600mm W x 1070mm D
- Black colour, steel construction
- No rear doors
- 14-gauge rail material, 18-gauge roof and side panels
- Dynamic (rolling) weight capacity approx. 2253 lb
- Static weight capacity approx. 3005 lb
- Includes levelling feet, pre-installed casters, mounting hardware and ground studs
- TAA compliant

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: Does the AR3100HACS include rear doors?
A: No. This variant is supplied without rear doors. It includes the enclosure frame, roof, side panels, adjustable rails, casters, levelling feet and mounting hardware.

Q: What are the external dimensions of this rack?
A: The enclosure measures approximately 1991mm high, 600mm wide and 1070mm deep, with 42U of 19-inch EIA-310 mounting space.

Q: What weight can the rack support?
A: It is rated for approximately 3005 lb static load and approximately 2253 lb dynamic (rolling) load.

Q: Is the AR3100HACS TAA compliant?
A: Yes. The HACS variant of the AR3100 family is TAA compliant, which suits government procurement requirements.

Q: Can the rack be moved once equipment is installed?
A: Yes. It ships with pre-installed casters for rolling and levelling feet for stable positioning once in place.

Q: What accessories suit this enclosure?
A: The NetShelter SX platform is designed to work with rack PDUs, cable management, cooling and environmental monitoring accessories for server and network installations.
