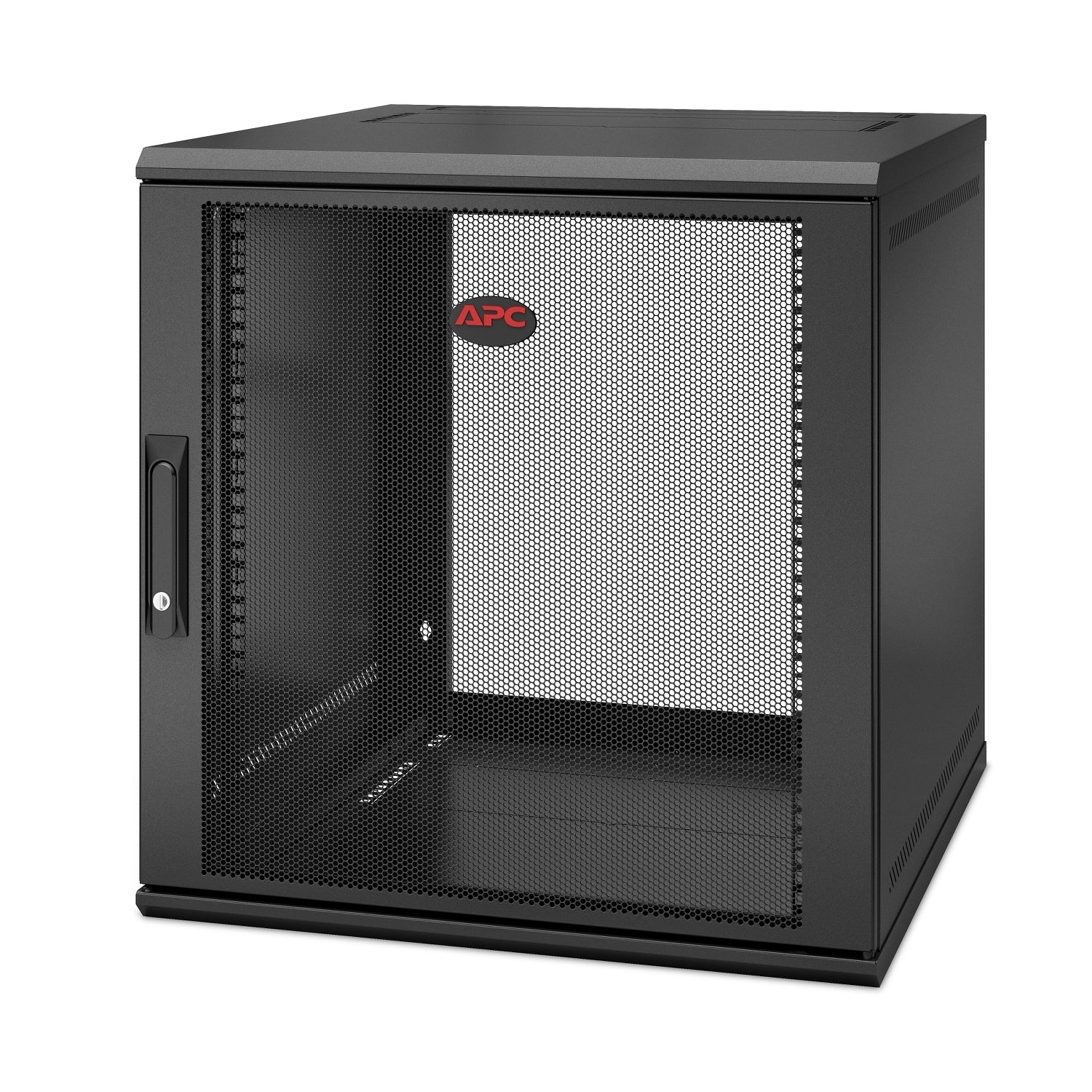

• APC AR112SH6 NetShelter WX 12U black server rack with mesh door
1 1

APC

APC AR112SH6 | NetShelter WX 12U Wall-Mount Rack Enclosure, 600mm Deep, Single Hinged

APC AR112SH6 | NetShelter WX 12U Wall-Mount Rack Enclosure, 600mm Deep, Single Hinged

Authorised APC Partner

AR112SH6

Stock Status: Enquire

$798.09 inc. GST
$725.54 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC NetShelter WX AR112SH6 is a 12U, 19-inch wall-mount rack enclosure for network switches, patch panels and edge-computing equipment where floor space is limited. This 600mm deep model has a reversible single-hinged lockable door and a ventilated, open enclosure design, and ships fully assembled in black.

The enclosure provides vendor-neutral EIA-310 mounting with a static weight capacity of 90.7 kg (200 lb). Removable knockouts in the bottom and roof allow cable exits or fitting a 1U accessory such as a fan or patch panel, and the wall-mounting hardware is included. It suits patch cabinet and small comms room deployments alongside APC Smart-UPS and PDU products.

Features

- Reversible single-hinged door that can be fitted for left or right opening
- Locking swing handle
- Ventilated construction for cool-air delivery to installed equipment
- Removable knockouts in the bottom and roof for cable exits or a 1U accessory such as a fan or patch panel
- Vendor-neutral EIA-310 mounting for 19-inch equipment
- Ships fully assembled, with hardware kit included
- Optional NetBotz security upgrade (sold separately)
- Compatible with APC Smart-UPS and PDU products

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- 12U rack height, 19-inch EIA-310 mounting
- 600mm (23.6") overall depth; 20.79" (528mm) rack depth
- Mounting depth range 2.87 to 20.8 inches
- Static weight capacity 200 lb (90.7 kg)
- External dimensions (W x H x D): 600 x 620 x 600 mm (23.6 x 24.4 x 23.6")
- Product weight 19.19 kg (42.31 lb)
- Colour: Black
- Wall mountable with included hardware
- Open enclosure design, ventilated, IP20 dust-resistant
- No fans, no casters
- Compliance: RoHS, REACH
- UPC/EAN: 731304402725

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: How many rack units does the APC AR112SH6 provide?
A: It provides 12U of 19-inch EIA-310 mounting space, suited to switches, patch panels and other edge equipment.

Q: Can the door be changed to open from the other side?
A: Yes. The single-hinged door is reversible and can be fitted for left or right opening.

Q: What is the weight capacity of this wall-mount enclosure?
A: The static weight capacity is 200 lb (90.7 kg). Make sure the wall and fixings used are rated for the combined weight of the enclosure and installed equipment.

Q: Does the enclosure include fans or active cooling?
A: No. It uses an open, ventilated design with no fans. Knockouts in the roof and bottom allow a 1U fan or patch panel accessory to be fitted if required.

Q: Is wall-mounting hardware included?
A: Yes. The enclosure ships fully assembled with a hardware kit for wall mounting.

Q: How do I get cables into the enclosure?
A: Removable knockouts in the bottom and roof provide cable entry and exit points for power and network cabling.
