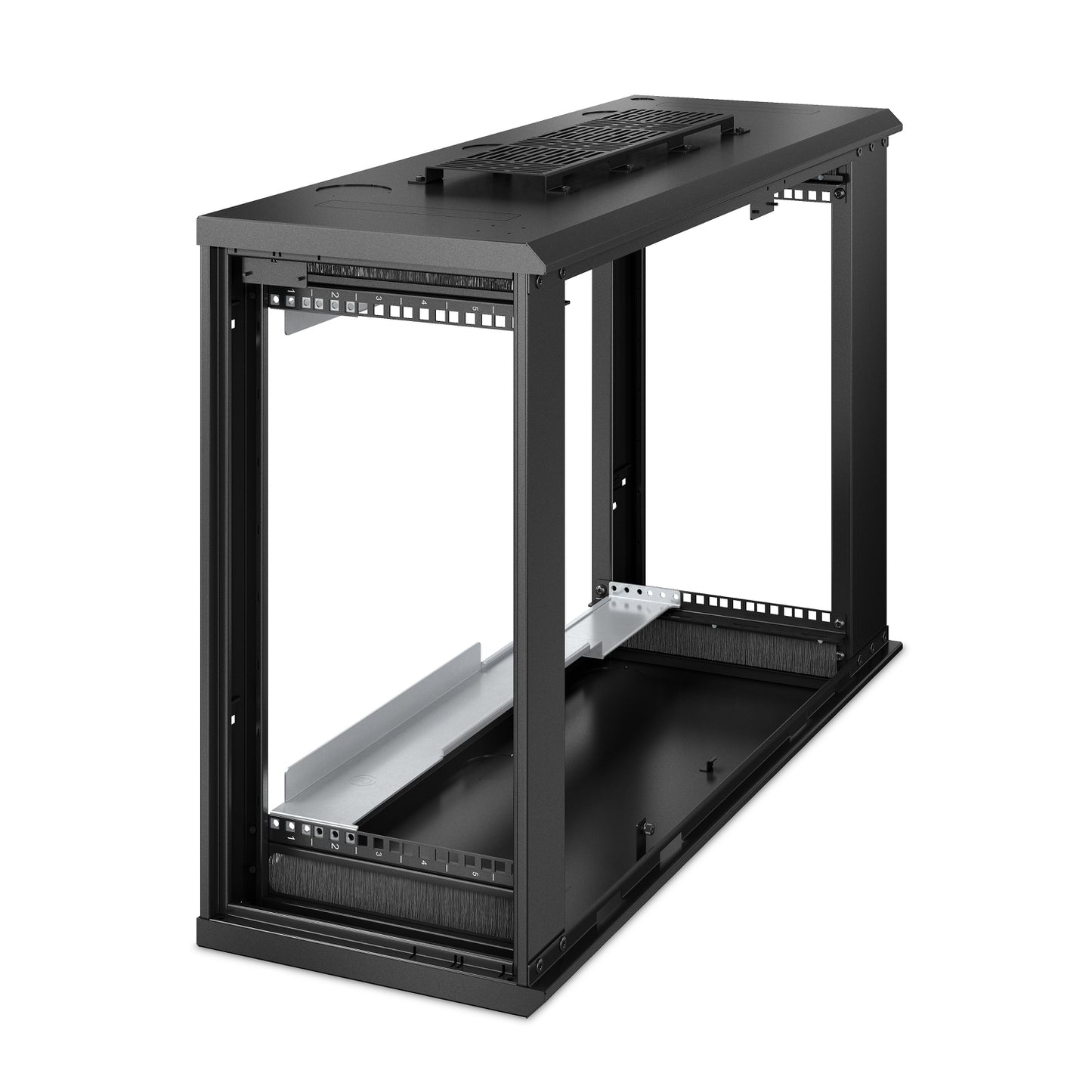

APC AR106VI | NetShelter WX 6U Wallmount Rack Enclosure, 230V Fans, 762mm

APC AR106VI | NetShelter WX 6U Wallmount Rack Enclosure, 230V Fans, 762mm

Authorised APC Partner

AR106VI

In stock:6

$1,480.05 inc. GST
$1,345.50 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC AR106VI NetShelter WX is a 6U wallmount rack enclosure with integrated 230V fans, built for edge computing and networking equipment where floor space is limited. It accepts server-depth equipment up to 762mm, supports loads up to 113kg and includes a replaceable dust filter, making it suited to light-industrial environments.

The low-profile 19-inch enclosure mounts to a wall using the detachable bracket, or stands on the floor with optional casters. It is compatible with Smart-UPS, NetBotz and EcoStruxure IT (sold separately), and the shock packaging allows equipment to be pre-installed before delivery to speed up deployment.

Features

- Compact, low-profile design for space-constrained sites
- Supports edge server and networking equipment up to 762mm deep
- Detachable wall bracket and optional casters allow wall-mounted or floor-standing deployment
- Dust filter and two integrated fans suit light-industrial environments
- Shock packaging allows equipment to be pre-installed before shipment
- Optional NetBotz physical security and environmental monitoring
- Compatible with Smart-UPS, NetBotz and EcoStruxure IT (sold separately)

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- 6U rack height
- 19-inch (482.6mm) rack width
- Mounting depth up to 762mm (30 in)
- Load capacity up to 113kg (250 lb)
- 2 x integrated 230V fans
- Replaceable dust filter
- Black finish
- Wall mount via detachable bracket, or floor-standing with optional casters

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What is the maximum equipment depth the AR106VI supports?
A: It supports server-depth equipment with a mounting depth of up to 762mm (30 in).

Q: What is the load capacity of this enclosure?
A: The AR106VI supports a load of up to 113kg (250 lb).

Q: Can the AR106VI be used on the floor instead of a wall?
A: Yes. It can be wall mounted using the detachable bracket, or used stand-alone on the floor with optional casters.

Q: Does the enclosure include cooling?
A: Yes. It includes two integrated 230V fans and a replaceable dust filter for light-industrial environments.

Q: Can I add environmental monitoring or a UPS?
A: Yes. It is compatible with Smart-UPS, NetBotz and EcoStruxure IT, all sold separately, including optional NetBotz physical security and environmental monitoring.

Q: How many rack units does this enclosure provide?
A: It provides 6U of space in a standard 19-inch (482.6mm) width.

APC Replacement Battery Finder

How Do I Choose the Right APC UPS Battery?

Finding the correct replacement battery for your APC UPS can be confusing Our APC Battery Finder makes it easy. Simply enter your UPS model to get the exact battery match, the correct quantity required, and guidance if your unit is end-of-life with upgrade options.

Designed for fast, accurate results, this tool helps Australian businesses & IT teams avoid downtime and order the right APC UPS battery the first time.

Find My APC Battery
