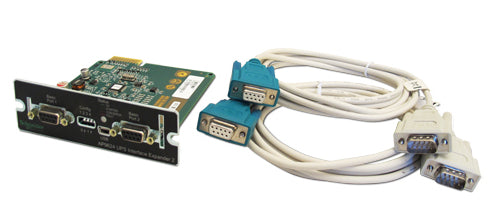

• APC AP9624 interface card with black I/O ports and white DB-9 cables
1 1

APC

APC AP9624 | UPS Interface Expander 2 SmartSlot Card, 2x Serial Ports

APC AP9624 | UPS Interface Expander 2 SmartSlot Card, 2x Serial Ports

Authorised APC Partner

AP9624

Stock Status: Enquire

$448.48 inc. GST
$407.71 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC AP9624 UPS Interface Expander 2 is a SmartSlot serial interface card that adds two extra UPS interface ports to a compatible APC UPS. It lets a single UPS trigger a graceful shutdown of up to three servers or other devices during an extended power outage, using PowerChute.

Designed for APC UPS models with a SmartSlot rated at 3kVA or below, it is suited to Smart-UPS, Symmetra, LX and RM ranges. The card draws power from the UPS so it keeps monitoring and reporting power events even without AC utility power, and firmware can be upgraded over USB mini-B.

Features

- Graceful shutdown of additional servers and network storage devices connected serially
- Works with PowerChute Business Edition and PowerChute Serial Shutdown
- Monitors the UPS and reports power events such as on-battery and low battery in PowerChute
- Draws power from the UPS, so monitoring continues without AC utility power
- Firmware upgradeable via USB mini-B

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- 2 additional UPS interface (simple signalling) ports
- For UPS with SmartSlot, 3kVA or below
- Serial shutdown support for up to 3 servers from a single UPS (UPS host plus 2 additional devices)
- USB mini-B port for firmware upgrade
- Compatible with Smart-UPS, Symmetra, LX and RM UPS ranges
- Dimensions (max): 38mm H x 121mm W x 114mm D
- Net weight: 0.07 kg
- Includes RS-232 configuration cable, user manual and warranty card
- RoHS compliant

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What does the APC AP9624 do?
A: It is a SmartSlot card that adds two extra serial UPS interface ports, allowing one UPS to signal a graceful shutdown to up to three servers or devices in total.

Q: Which UPS models is the AP9624 compatible with?
A: It suits APC UPS units with a SmartSlot rated at 3kVA or below, including the Smart-UPS, Symmetra, LX and RM ranges.

Q: How many devices can be shut down with one AP9624?
A: Up to three servers with a single UPS: the host connected to the UPS plus two additional devices through the card's extra ports.

Q: Which software does it work with?
A: It works with PowerChute Business Edition and PowerChute Serial Shutdown to monitor the UPS and manage shutdown during power events.

Q: Does the card need its own power supply?
A: No. It draws power from the UPS, so it continues monitoring even when AC utility power is lost.

Q: How is the firmware updated?
A: Firmware can be upgraded through the USB mini-B port on the card. An RS-232 configuration cable is included in the box.
