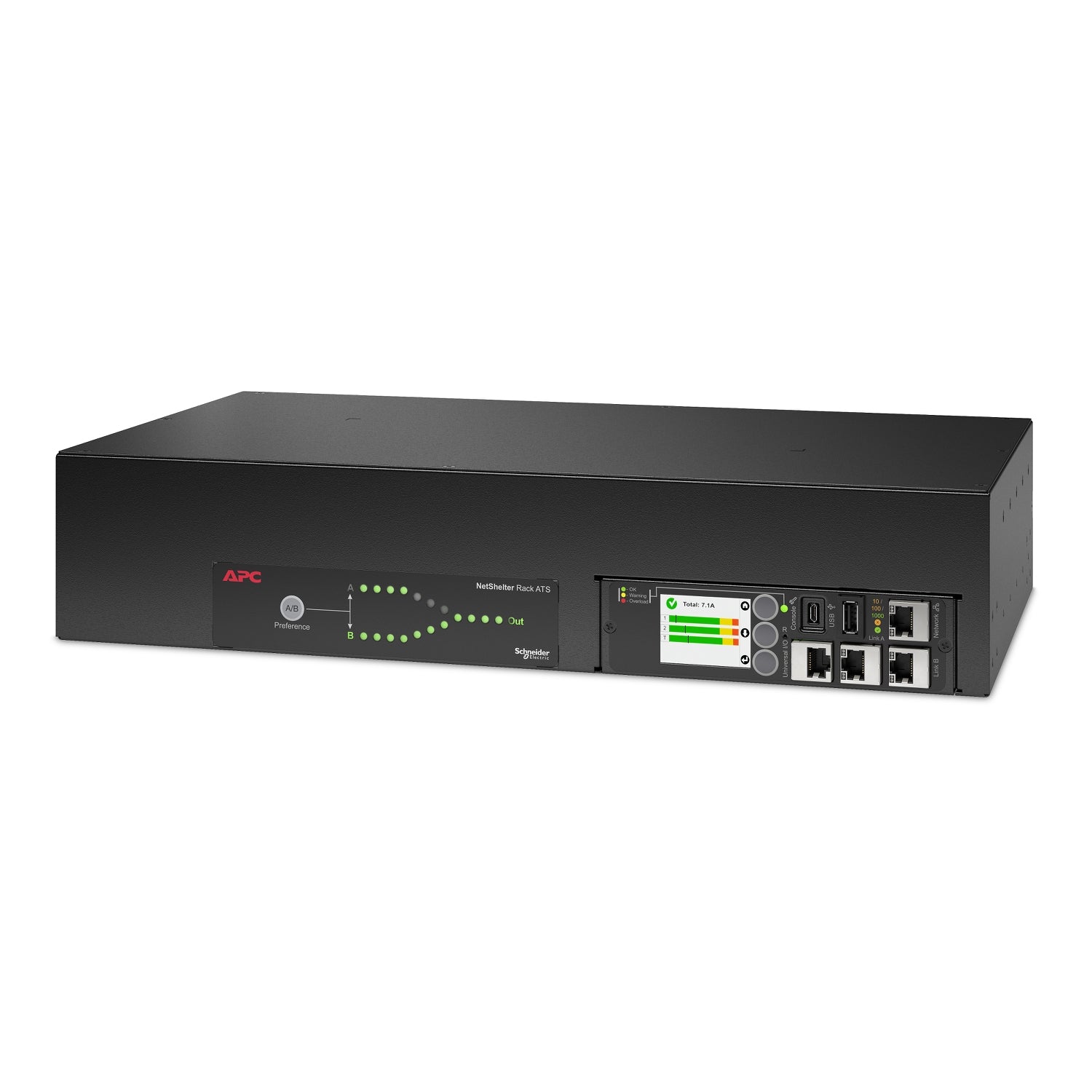

• APC AP4432A Netshelter rack ATS rear view with ports and display
1 1

APC

APC AP4432A | NetShelter Rack ATS, 2U, 30A, 200/208V, 16x C13, 2x C19

APC AP4432A | NetShelter Rack ATS, 2U, 30A, 200/208V, 16x C13, 2x C19

Authorised APC Partner

AP4432A

Stock Status: Enquire

$2,538.22 inc. GST
$2,307.47 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The AP4432A is a single-phase 2U rack automatic transfer switch rated at 30A and 200/208V, designed to give redundant power to single-corded IT equipment. It accepts two NEMA L6-30P input feeds and switches between them automatically with a 10 ms transfer time, helping keep critical rack loads online if one source fails. Outputs comprise 16 x IEC C13 and 2 x IEC C19 outlets with a 4992VA load capacity.

An APC NMC3 network management card is included for remote monitoring and control over Gigabit Ethernet using the web UI, SNMP, CLI or EcoStruxure IT. Up to 32 Rack ATS units can be managed from a single IP address, and built-in circuit breaker protection safeguards connected equipment.

Features

- Redundant power for single-corded equipment in the IT rack
- Dual input power cords to enhance uptime for critical loads
- Field-replaceable NMC3 with enhanced cyber security
- Network port sharing and environmental (temperature/humidity) monitoring
- Gigabit Ethernet support for faster communication
- Supports APC Wi-Fi USB device for cableless installation and setup
- Remote management via secure web UI, SNMP, CLI or EcoStruxure IT
- Manage up to 32 Rack ATS units from one IP address

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- 2U rack mount, single phase
- 30A rated current (24A regulatory derated input current for North America)
- 200/208V rated voltage
- 4992VA load capacity
- 2 x NEMA L6-30P inlets
- 16 x IEC C13 and 2 x IEC C19 outlets
- 10 ms transfer time
- Built-in circuit breaker protection
- APC NMC3 network management card with Gigabit Ethernet
- Management via web UI, SNMP, CLI and EcoStruxure IT

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input connections does the AP4432A use?
A: It has two NEMA L6-30P inlets, one for each power feed, so it needs two L6-30R receptacles at 200/208V.

Q: What outlets are provided?
A: The AP4432A provides 16 x IEC C13 and 2 x IEC C19 outlets, covering a mix of servers, switches and higher-draw equipment.

Q: How fast does it transfer between power sources?
A: The transfer time is 10 ms, which suits the ride-through of typical IT power supplies when the primary feed fails.

Q: Can it be managed remotely?
A: Yes. The included APC NMC3 card supports a web UI, SNMP, CLI and EcoStruxure IT over Gigabit Ethernet, and up to 32 Rack ATS units can be managed from one IP address.

Q: Is it suitable for 120V circuits?
A: No. This model is rated for 200/208V with L6-30P inlets, so it requires 200/208V single-phase feeds.

Q: Does it support environmental monitoring?
A: Yes. The NMC3 card supports temperature and humidity monitoring and network port sharing.
