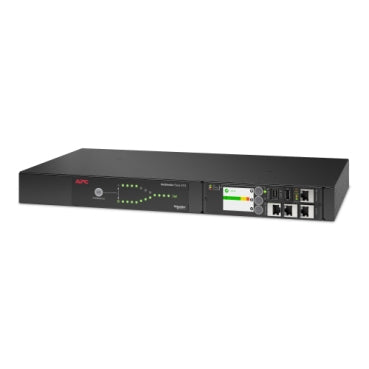

• APC AP4422A Netshelter rack ATS 1U front view with Ethernet ports and green LEDs
1 1

APC

APC AP4422A | NetShelter Rack ATS, 1U, 16A, 230V, 2x IEC309 In, 1x Out

APC AP4422A | NetShelter Rack ATS, 1U, 16A, 230V, 2x IEC309 In, 1x Out

Authorised APC Partner

AP4422A

Stock Status: Enquire

$1,943.17 inc. GST
$1,766.52 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC AP4422A NetShelter Rack Automatic Transfer Switch is a single-phase 1U rack ATS rated at 16A and 230V, delivering redundant power from two input feeds to single-corded IT equipment. It is configured with 2 x IEC309 inputs and 1 x IEC309 output, with a fast 10ms transfer time to keep critical loads running if one feed fails.

This fifth-generation Rack ATS includes a field-replaceable NMC3 network management card with Gigabit Ethernet, managed through a Web UI, SNMP, CLI and EcoStruxure IT. It supports temperature and humidity monitoring, and up to 32 Rack ATS units can be connected and managed from a single IP address.

Features

- Seamless switching with a 10ms transfer time
- Dual input power cords to enhance uptime for critical loads
- Connect and manage up to 32 Rack ATS units from one IP address
- Field-replaceable network management card to minimise downtime
- Temperature and humidity monitoring support
- Secure access via Web UI, SNMP and CLI
- Compatible with EcoStruxure IT
- Network port sharing and enhanced security over the previous generation

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Form factor: 1U rack-mount, single phase
- Rated current: 16A
- Nominal voltage: 230V input and output
- Load capacity: 3840VA
- Inputs: 2 x IEC 60309 16A 2P+E (approx. 2.4 m cords)
- Output: 1 x IEC 60309 16A 2P+E (approx. 0.9 m cord)
- Input frequency: 50/60Hz
- Transfer time: 10ms
- Network management: APC NMC3 card (field-replaceable) with Gigabit Ethernet
- Dimensions (H x W x D): 44 x 432 x 236 mm
- Weight: 4.21 kg
- Operating temperature: -5 to 45 °C
- Supplied with mounting hardware, rack mounting brackets and serial configuration cable

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What does the APC AP4422A do?
A: It is a 1U rack automatic transfer switch that feeds single-corded IT equipment from two independent power sources, switching between them in 10ms if the primary feed fails.

Q: What input and output connections does the AP4422A have?
A: It has two IEC 60309 16A 2P+E inputs and one IEC 60309 16A 2P+E output, rated for 230V single-phase power.

Q: How is the AP4422A managed?
A: It includes an APC NMC3 network management card with Gigabit Ethernet, providing access via Web UI, SNMP and CLI, and it is compatible with EcoStruxure IT.

Q: Can multiple Rack ATS units be managed together?
A: Yes. Up to 32 Rack ATS units can be connected and managed from a single IP address.

Q: Is the network card replaceable?
A: Yes. The NMC3 card is field-replaceable, which helps minimise downtime if it needs to be swapped.

Q: What is included for installation?
A: The unit is supplied with mounting hardware, rack mounting brackets and a serial configuration cable.
