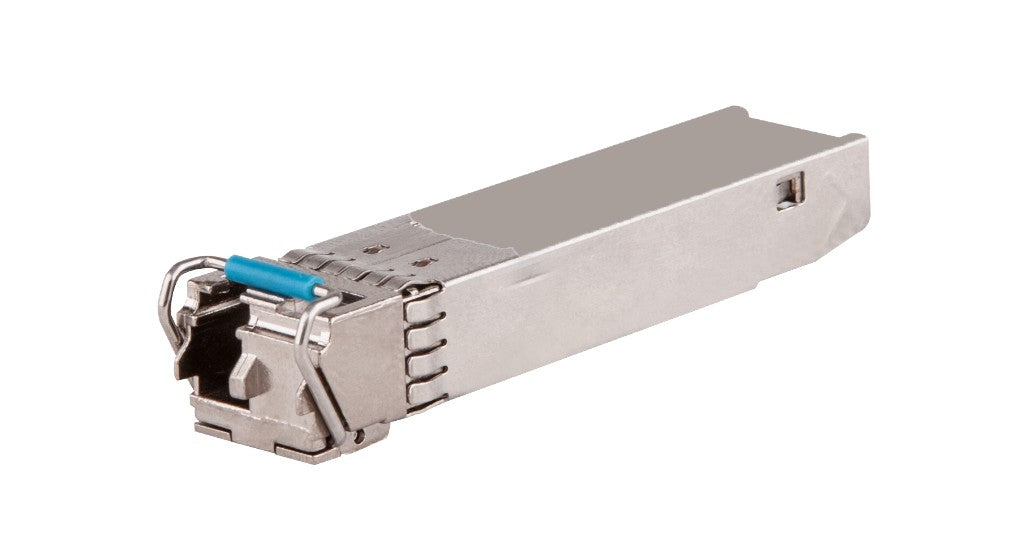

• Aruba JD098B X120 1G SFP LC BX10-U silver transceiver with blue cap
1 1

Aruba

Aruba JD098B | X120 1G SFP BiDi Transceiver, BX 10-U, 1310nm TX, 10km

Aruba JD098B | X120 1G SFP BiDi Transceiver, BX 10-U, 1310nm TX, 10km

Authorised Aruba Partner

JD098B

Stock Status: Enquire

$2,019.77 inc. GST
$1,836.15 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The X120 1G SFP LC BX 10-U transceiver is a 1000BASE-BX10-U bidirectional (BiDi) SFP module that sends and receives over a single strand of single-mode fibre through one LC connector, reaching up to 10 km. It transmits at 1310 nm and receives at 1490 nm, which makes it a cost-effective way to extend a Gigabit link when fibre runs are limited.

This BX 10-U module must be paired with a BX 10-D transceiver (JD099B) at the far end of the link. It fits SFP (mini-GBIC) slots on supported HPE, H3C and ProCurve switches, so it suits campus backbone, building-to-building and access-layer uplink deployments.

Features

- Bidirectional (BiDi) operation over a single fibre strand
- Fits SFP (mini-GBIC) slots on supported HPE, H3C and ProCurve switches
- Pairs with the X120 1G SFP LC BX 10-D transceiver (JD099B) at the far end
- Single LC connector reduces fibre usage compared with dual-strand optics

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 1000BASE-BX10-U SFP (mini-GBIC) transceiver
- 1 Gbps data rate
- Single-mode fibre, single LC connector
- Optical wavelength: TX 1310 nm / RX 1490 nm
- Maximum transmission distance: 10 km
- Dimensions (W x D x H): 55.1 x 15.2 x 11.7 mm
- Weight: 0.0181 kg
- Package contents: transceiver, documentation

FAQs

Q: What does the BX 10-U designation mean?
A: BX 10-U is the upstream end of a 1000BASE-BX10 bidirectional link. It transmits at 1310 nm and receives at 1490 nm over a single strand of single-mode fibre, up to 10 km.

Q: Which transceiver do I need at the other end of the link?
A: A BX 10-D module is required at the far end. The matching part is the X120 1G SFP LC BX 10-D transceiver, JD099B.

Q: What fibre type and connector does it use?
A: It uses single-mode fibre with a single LC connector, so only one fibre strand is needed per link.

Q: What is the maximum reach?
A: Up to 10 km over single-mode fibre at 1 Gbps.

Q: Which slots does it fit?
A: It is an SFP (mini-GBIC) form factor module for SFP slots on supported HPE, H3C and ProCurve switches.

Q: Can I link two BX 10-U modules together?
A: No. BiDi links need one BX 10-U and one BX 10-D, because the transmit and receive wavelengths must be complementary.
