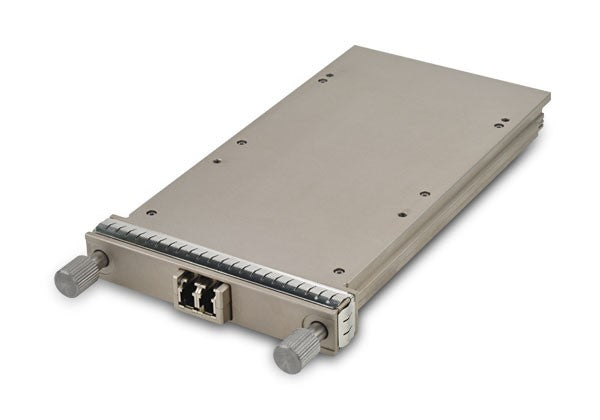

• Fortinet FG-TRAN-CFP2-LR4 silver CFP2 transceiver with 2 ports and knobs
1 1

Fortinet

Fortinet FG-TRAN-CFP2-LR4 | 100G CFP2 LR4 Transceiver, SMF, 10km, LC, 1310nm

Fortinet FG-TRAN-CFP2-LR4 | 100G CFP2 LR4 Transceiver, SMF, 10km, LC, 1310nm

Authorised Fortinet Partner

FG-TRAN-CFP2-LR4

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FG-TRAN-CFP2-LR4 is a 100G CFP2 transceiver module for Fortinet systems with CFP2 slots, delivering 100GBASE-LR4 over single-mode fibre (SMF) at distances up to 10km. It uses a duplex LC connector at 1310nm, making it a suitable choice for long-reach 100 Gigabit Ethernet links between buildings, racks and data centre sites.

The hot-pluggable module supports digital diagnostic monitoring, a serial ID PROM, auto negotiation and link status indication, and operates from 0°C to 70°C with power dissipation under 8W. It is compatible with Fortinet systems that provide CFP2 slots.

Features

- Hot-pluggable CFP2 module for simple installation and replacement
- Digital diagnostic monitoring for optical link visibility
- Serial ID PROM for module identification
- Auto negotiation and link status indication
- Compatible with Fortinet systems that have CFP2 slots

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 100 GE CFP2 transceiver, 100GBase-LR4
- IEEE 802.3ba standard
- Data link rate 103.1 Gbps
- Up to 10km over single-mode fibre (SMF)
- 1310nm wavelength
- Duplex LC connector
- Power dissipation under 8W
- Operating temperature 0°C to 70°C
- Hot-pluggable with serial ID PROM

FAQs

Q: What is the maximum distance supported by the FG-TRAN-CFP2-LR4?
A: It supports 100GBASE-LR4 links up to 10km over single-mode fibre using a duplex LC connector at 1310nm.

Q: Which devices is this CFP2 transceiver compatible with?
A: It is designed for Fortinet systems that have CFP2 slots.

Q: What fibre type and connector does it use?
A: It requires single-mode fibre (SMF) terminated with duplex LC connectors.

Q: Is the module hot-pluggable?
A: Yes. The CFP2 module is hot-pluggable and includes a serial ID PROM and digital diagnostic monitoring.

Q: What is the operating temperature range?
A: The module operates from 0°C to 70°C with power dissipation under 8W.

Q: Can it be used with multimode fibre?
A: No. This LR4 module is for single-mode fibre only.
