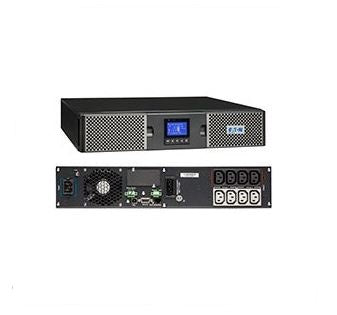

• Eaton 9PX1500IRT2UANZ 1500VA UPS black metal rack with perforated panel
1 1

Eaton

Eaton 9PX1500IRT2UANZ | 9PX 1500VA/1500W Online Rack/Tower UPS, 2U, Rail Kit

Eaton 9PX1500IRT2UANZ | 9PX 1500VA/1500W Online Rack/Tower UPS, 2U, Rail Kit

Authorised Eaton Partner

9PX1500IRT2UANZ

In stock:29

$3,448.10 inc. GST
$3,134.64 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Eaton 9PX 1500VA/1500W online double-conversion rack/tower UPS delivers clean, regulated power in a compact 2U footprint. This ANZ variant has a 10A input with Australian cabling and a rail kit included, ready for rack deployment. With unity power factor (1500VA equals 1500W), it makes the full rated capacity available to connected IT loads such as servers, storage and network equipment.

The 9PX uses double-conversion topology with power factor correction to continuously monitor and regulate voltage and frequency, with an internal bypass for service continuity. Eight IEC C13 outlets, a graphical LCD, hot-swappable batteries and Advanced Battery Management make it well suited to server rooms and comms cabinets. Optional extended battery modules (EBM) extend runtime, and the UPS is compatible with virtual environments such as VMware, Hyper-V, Citrix Xen and Red Hat.

Features

- Double-conversion topology constantly monitors and regulates voltage and frequency
- Unity power factor (VA equals W) for full usable capacity
- Energy Star qualified, high-efficiency operation
- Internal bypass maintains service continuity in the event of a UPS fault
- Graphical LCD display for status and configuration
- Compatible with virtual environments including VMware, Hyper-V, Citrix Xen and Red Hat
- Energy metering down to managed outlet groups
- Hot-swappable batteries simplify maintenance
- Advanced Battery Management (ABM) extends battery life
- Optional extended battery modules (EBM) for longer runtime

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Replacement Battery Finder

Technical Specifications

- Power rating: 1500VA / 1500W (unity power factor)
- Topology: online double conversion with PFC
- Form factor: 2U rack/tower, rail kit included
- Output receptacles: 8 x IEC C13
- Output voltage: 230V nominal (200/208/220/230/240V selectable), +/- 1% regulation
- Output frequency: 50/60 Hz, sine wave output
- Input voltage range: 176-276V without derating (100-276V with derating)
- Input frequency: 50/60 Hz auto-selection (40-70 Hz range)
- Efficiency: up to 92.5% at maximum load
- Dimensions (H x W x D): 86.5 x 440 x 450 mm
- Weight: 18.9 kg
- Input: 10A with Australian cabling

FAQs

Q: Is the 9PX1500IRT2UANZ a rack or tower UPS?
A: It is convertible. The 2U chassis mounts in a standard rack using the included rail kit, or can be used as a tower unit.

Q: What type of UPS topology does it use?
A: It is an online double-conversion UPS with power factor correction, continuously regulating voltage and frequency for connected equipment.

Q: How many outlets does it have and what type?
A: It provides eight IEC C13 output receptacles.

Q: Can I extend the runtime?
A: Yes. Eaton 9PX extended battery modules (EBM) can be added to increase runtime.

Q: Is a rail kit included?
A: Yes, this ANZ variant includes the rail kit for rack mounting, along with Australian cabling for the 10A input.

Q: What is the usable power capacity?
A: The 9PX offers unity power factor, so 1500VA equals 1500W of usable output power.
