Eaton

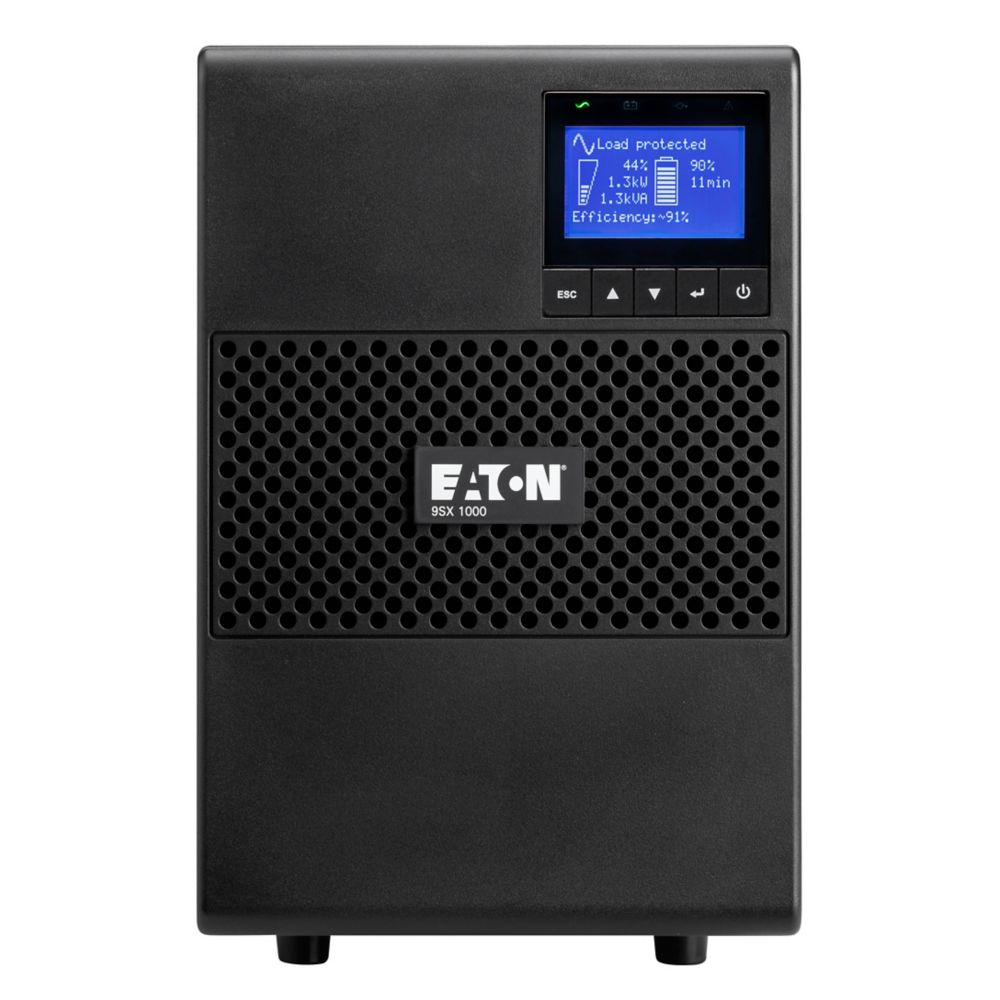

Eaton 9SX1000I-AU | 9SX Online Tower UPS, 1000VA/900W, 4x AU 10A Outlets

Eaton 9SX1000I-AU | 9SX Online Tower UPS, 1000VA/900W, 4x AU 10A Outlets

Authorised Eaton Partner

SKU:9SX1000I-AU

$2,206.69 inc. GST
$2,006.08 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

In stock: 19

Description

The Eaton 9SX1000I-AU is an online double-conversion tower UPS rated at 1000VA/900W for 240V Australian power environments. Four Australian 10A outlets and an IEC C14 input make it a ready fit for servers, network equipment and other critical loads that need clean, continuously regulated power.

The double-conversion topology constantly monitors and regulates voltage and frequency, while a multilingual graphical LCD provides at-a-glance status. USB and RS232 communication ports, remote power off and output relay terminals, and one card slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards support integration into managed environments.

Features

- Online double-conversion topology constantly monitors and regulates voltage and frequency
- Multilingual graphical LCD display
- Four Australian 10A outlets for direct connection of local equipment
- USB and RS232 communication ports for shutdown software and monitoring
- Remote power off and output relay mini-terminal blocks
- Optional network or relay card slot for remote management and integration
- Extended runtime available with optional battery expansion

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Replacement Battery Finder

Technical Specifications

- 1000 VA / 900 W
- Topology: Online double-conversion
- Nominal voltage: 240 VAC
- Input: 1 x IEC C14
- Output: 4 x Australian 10A outlets
- Built-in sealed lead-acid battery with extended runtime option
- Communication: 1 x USB, 1 x RS232 serial
- Mini-terminal blocks for remote power off and output relay
- 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS card
- Form factor: Free-standing tower, black
- Dimensions (D x W x H): 160 x 387 x 252 mm
- Weight: 14.8 kg
- Compliances: CB, RCM, CE

FAQs

Q: What type of UPS is the Eaton 9SX1000I-AU?
A: It is an online double-conversion tower UPS rated at 1000VA/900W at 240V, designed to continuously regulate voltage and frequency for connected equipment.

Q: What outlets and input does it have?
A: It has one IEC C14 input and four Australian 10A output outlets.

Q: Can I add network management to this UPS?
A: Yes. It has one communication slot that accepts a Network-M2, Network-MS, ModBus-MS or Relay-MS card.

Q: How do I connect it to a server for shutdown signalling?
A: It provides one USB port and one RS232 serial port, plus mini-terminal blocks for remote power off and an output relay.

Q: Can I extend the battery runtime?
A: Yes. It has a built-in sealed lead-acid battery and supports an extended runtime option.

Q: What are the physical dimensions and weight?
A: The free-standing tower measures 160 x 387 x 252 mm (D x W x H) and weighs 14.8 kg.
