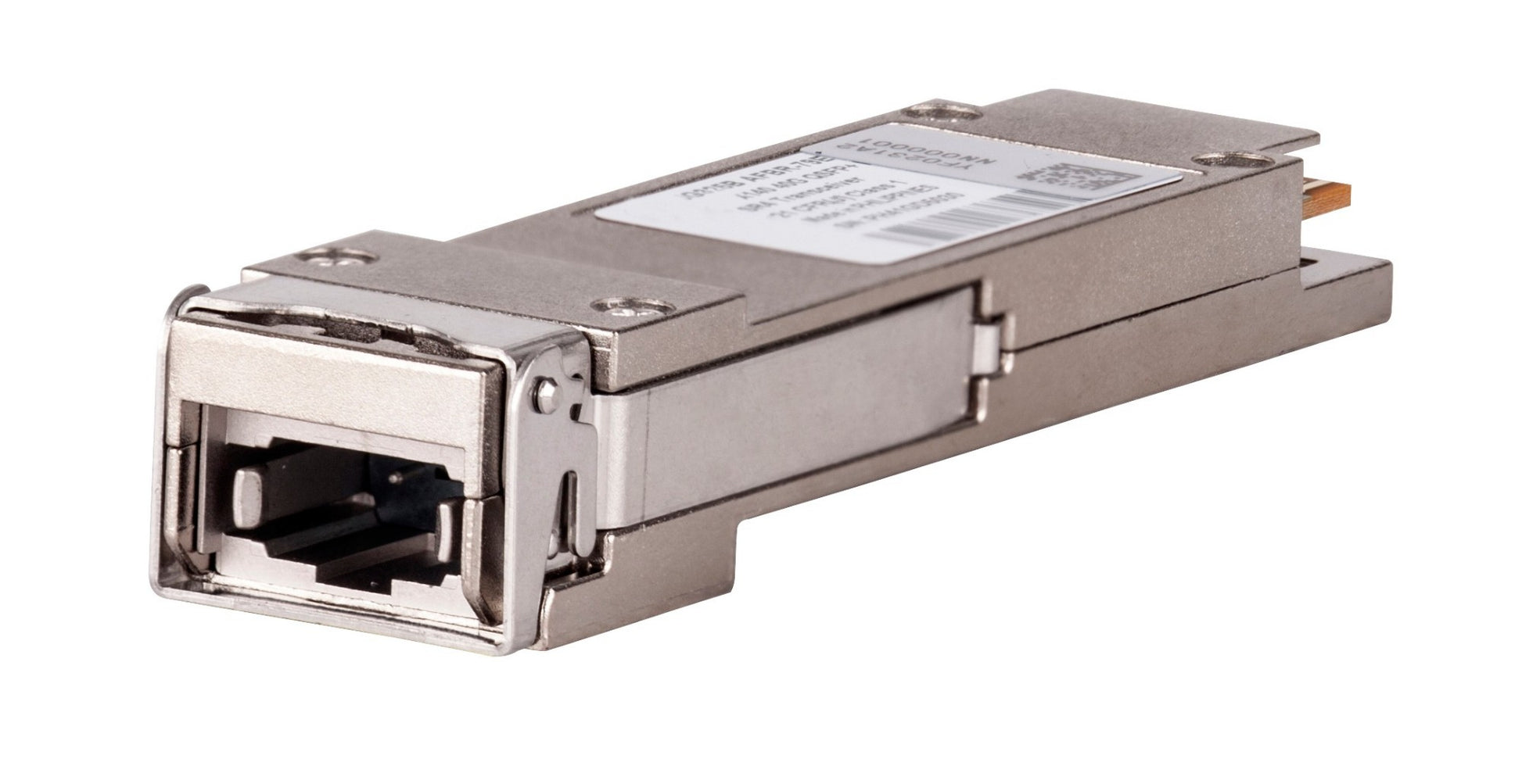

• HPE JH233A 40G QSFP+ MPO eSR4 silver transceiver module front view
1 1

HPE

HPE JH233A | X142 40G QSFP+ MPO eSR4 Transceiver, 300m, 850nm

HPE JH233A | X142 40G QSFP+ MPO eSR4 Transceiver, 300m, 850nm

Authorised HPE Partner

JH233A

Stock Status: Enquire

$5,648.58 inc. GST
$5,135.07 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The X142 40G QSFP+ MPO eSR4 transceiver delivers 40GBASE-eSR4 connectivity over multimode fibre, with an extended reach of up to 300 m on OM3 and 400 m on OM4 at 850 nm. It uses a 12-fibre MPO connector and suits campus aggregation and data centre links on compatible HPE and Aruba switches.

Compared with a standard SR4 optic, the eSR4 design provides additional distance on the same 50/125 µm multimode cabling. The hot-swappable QSFP+ module supports Digital Optical Monitoring for link diagnostics, and it connects using female MPO connectors.

Features

- 40GbE connectivity for campus aggregation and data centre links
- Extended reach on multimode fibre compared with standard SR4 optics
- Digital Optical Monitoring for link diagnostics
- Hot-swappable QSFP+ design
- Uses female MPO connectors

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Alternate Part Codes

FAQs

Technical Specifications

- Data rate: 40 Gbps
- Form factor: QSFP+
- Standard: 40GBASE-eSR4
- Central wavelength: 850 nm
- Fibre type: multimode, 50/125 µm
- Transmission distance: 300 m (OM3), 400 m (OM4)
- Connector: MPO, 12-fibre, PC polished
- Modal bandwidth: 2000 MHzkm (OM3), 4700 MHzkm (OM4)
- Transmit power: -7.6 to 0 dBm
- Digital Optical Monitoring (DOM): supported
- Hot-pluggable: yes

Alternate Part Codes

QSFP-40G-CSR4=, QSFP-40G-CSR4-RF

FAQs

Q: What distance does this transceiver support?
A: It supports 40GbE links of up to 300 m over OM3 multimode fibre and up to 400 m over OM4 multimode fibre.

Q: What connector does it use?
A: It uses a 12-fibre MPO connector with PC polish, and it uses female MPO connectors.

Q: What type of fibre is required?
A: It requires 50/125 µm multimode fibre operating at 850 nm. OM3 or OM4 cabling is needed to reach the rated distances.

Q: Does it support Digital Optical Monitoring?
A: Yes, DOM is supported, allowing link diagnostics on compatible switches.

Q: How does it differ from a standard SR4 transceiver?
A: The eSR4 variant offers extended reach of 300 m on OM3 and 400 m on OM4. The standard JH231A SR4 optic reaches 100 m on OM3 and 150 m on OM4.

Q: Is it hot-swappable?
A: Yes, it is a hot-swappable QSFP+ module and can be installed or removed without powering down compatible switches.
