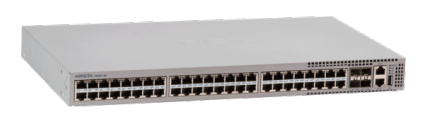

• Arista DCS-7010T-48-DC-F silver switch with 48 RJ45 ports and 4 SFP+
1 1

Arista

Arista DCS-7010T-48-DC-F | 7010T 48-Port Gigabit Switch, 4x 10G SFP+, 2x DC, Front-Rear

Arista DCS-7010T-48-DC-F | 7010T 48-Port Gigabit Switch, 4x 10G SFP+, 2x DC, Front-Rear

Authorised Arista Partner

DCS-7010T-48-DC-F

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Arista DCS-7010T-48-DC-F is a 1RU 7010T 48-port Gigabit Ethernet data centre switch with 48 10/100/1000 RJ45 ports and 4 SFP+ uplinks supporting 1G or 10G. It delivers wire-speed Layer 2 and Layer 3 forwarding with low latency and up to 176 Gbps of throughput, making it well suited to top-of-rack and out-of-band management deployments. This SKU is the dual DC power supply model with front-to-rear airflow.

A shared dynamic packet buffer is allocated to congested ports, while redundant DC power supplies and reversible fans provide resilience in the rack. The SFP+ ports accept a full range of 1G and 10G optics and cables, including 10GBASE-SR, SRL, LR and LRL as well as 1GbE SX and LX, and power draw stays under 52W.

Features

- Low-latency switching with a shared packet buffer pool allocated dynamically to congested ports
- Built-in power redundancy with dual DC power supplies
- Customer-reversible redundant fans so airflow can run in either direction in a single system
- SFP+ ports support a full range of 1G/10G optics and cables, including 10GBASE-SR/SRL/LR/LRL and 1GbE SX/LX
- Wire-speed Layer 2 and Layer 3 forwarding

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 48 x 10/100/1000Mb RJ45 ports
- 4 x SFP+ ports (1GbE/10GbE)
- Up to 176Gbps throughput
- Up to 132Mpps forwarding
- Wire-speed L2 and L3 forwarding
- Power consumption under 52W (less than 1W per port)
- 2 x DC power supplies (redundant)
- Front-to-rear airflow
- 1RU form factor

FAQs

Q: What power supplies does the DCS-7010T-48-DC-F use?
A: This model has two DC power supplies for redundancy. It is the DC variant of the 7010T-48 range.

Q: What is the airflow direction on this model?
A: This SKU is configured for front-to-rear airflow. The redundant fans are customer-reversible, so airflow can run in either direction within a single system.

Q: What uplink options does the switch provide?
A: It has 4 SFP+ ports that run at 1GbE or 10GbE, supporting optics such as 10GBASE-SR, SRL, LR and LRL and 1GbE SX and LX.

Q: Does it support Layer 3 routing?
A: Yes. The switch provides wire-speed Layer 2 and Layer 3 forwarding.

Q: What is the switching performance?
A: It delivers up to 176 Gbps of throughput and up to 132 Mpps of forwarding with low latency and a shared dynamic packet buffer.

Q: Does this switch support PoE?
A: No. The 48 RJ45 ports are standard 10/100/1000 ports without PoE, and power consumption is under 52W.
