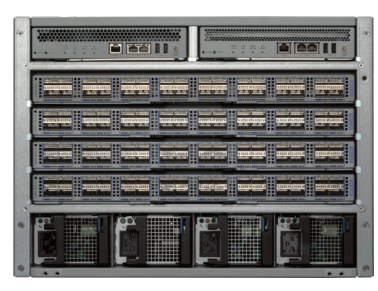

Arista DCS-7304X3-BND-F | 7304X3 Modular Chassis Switch, 2x3KW PS, 4 Fabrics

Authorised Arista Partner

SKU:DCS-7304X3-BND-F

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Arista DCS-7304X3-BND-F is a 7304X3 modular chassis switch bundle from the 7300X3 Series, built for data centre spine and spline deployments. This bundle includes the 4-slot, 8RU 7304 chassis, two 3KW power supplies, four fabric modules and one supervisor module (no SSD), with front-to-rear airflow, so it arrives ready for line card installation.

The 7300X3 Series delivers over 50 Tbps of fabric capacity, wire-speed L2/L3/L4 forwarding and latency below 2.5 usec on an internal CLOS architecture. It supports 1G, 10G, 25G, 40G, 50G and 100G line cards, which are sold separately, and 1+1 supervisor redundancy is supported for control plane resilience.

Features

- Redundant, hot-swappable supervisor, fabric, power and fan modules
- Internal CLOS architecture, fully non-blocking
- Wire-speed L2/L3/L4 forwarding
- Dual supervisor support for control plane redundancy
- Under 1.7W per 10Gb of performance
- Line cards are sold separately

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Chassis: Arista 7304, 4 line card slots, 8RU
- Power: 2 x 3KW power supplies
- Fabric: 4 x 7300X3 fabric/fan modules
- Supervisor: 1 x supervisor module (no SSD)
- Airflow: front-to-rear
- Fabric capacity: over 50 Tbps (7300X3 Series)
- Forwarding rate: up to 32 billion packets per second (7300X3 Series)
- Per line card throughput: up to 6.4 Tbps
- Maximum density: up to 1,024 wire-speed 25/10GbE ports or 256 wire-speed 100GbE ports (7300X3 Series)
- Latency: below 2.5 usec
- Line card support: 1G, 10G, 25G, 40G, 50G and 100G
- Supervisor hardware: quad-core x86 CPU, 16 GB DRAM, 4 GB flash

FAQs

Q: What is included in the DCS-7304X3-BND-F bundle?
A: The bundle includes the 7304 chassis, two 3KW power supplies, four fabric/fan modules and one supervisor module (no SSD), with front-to-rear airflow.

Q: Are line cards included?
A: No. Line cards are sold separately and must be selected to suit your port speed and density requirements.

Q: Which port speeds does the 7300X3 Series support?
A: The 7300X3 Series supports 1G, 10G, 25G, 40G, 50G and 100G line cards.

Q: Does the chassis support supervisor redundancy?
A: Yes. 1+1 supervisor redundancy is supported, and this bundle includes one supervisor, so a second supervisor can be added for control plane redundancy.

Q: How many line card slots does the 7304 chassis have?
A: The 7304 chassis has 4 line card slots in an 8RU form factor.

Q: What is the airflow direction of this bundle?
A: This bundle uses front-to-rear airflow.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
