Arista DCS-7512R-BND-D | 7512R 12-Slot Modular Chassis Switch, 8x3kW AC PS, 6xFM-R, Sup2-D

Authorised Arista Partner

SKU:DCS-7512R-BND-D

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

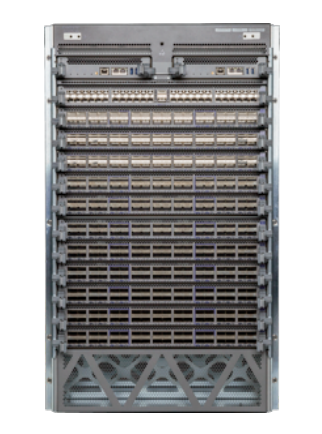

The Arista DCS-7512R-BND-D is a 12-slot, 18RU modular chassis switch from the 7500R Series, built for data centre core, spine and routing deployments. This bundle includes the 7512N chassis, eight 3kW AC power supplies, six FM-R fabric modules with 5+1 redundancy and one Sup2-D supervisor, so it is ready for 7500R Series line cards.

A deep-buffer virtual output queue architecture delivers lossless, wire-speed forwarding with no head-of-line blocking. The chassis scales to up to 432 x 100GbE or 1,728 x 10GbE/25GbE ports and up to 115Tbps of throughput, and it accepts any combination of 7500R Series line cards, including FlexRoute. It also provides an upgrade path for existing 7500E Series deployments.

Features

- Deep-buffer virtual output queue (VOQ) architecture eliminates head-of-line blocking
- Lossless fabric with wire-speed forwarding
- 5+1 fabric module redundancy
- Accepts any combination of 7500R Series line cards, including FlexRoute
- Power per port as low as 25W per 100GbE port
- Front-to-rear airflow suited to data centre cooling designs
- Upgrade path from 7500E Series for investment protection

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Chassis: 7512N, 12 line card slots, 18RU
- Bundle includes 8 x 3kW AC power supplies
- Bundle includes 6 x FM-R fabric modules (5+1 redundancy)
- Bundle includes 1 x Sup2-D supervisor, 2 supervisor slots in chassis
- Up to 115Tbps / 51Bpps maximum throughput
- Up to 432 x 100GbE, 864 x 50GbE, 432 x 40GbE, 1,728 x 25GbE or 1,728 x 10GbE ports
- Maximum power consumption: 16,600W
- Dimensions (H x W x D): 80.1 x 48.3 x 84.8 cm
- Weight: 84 kg chassis only, 300 kg fully populated
- Front-to-rear airflow with integrated fan module

FAQs

Q: What is included in the DCS-7512R-BND-D bundle?
A: The bundle includes the 7512N chassis, eight 3kW power supplies, six FM-R fabric modules and one Sup2-D supervisor. Line cards are ordered separately.

Q: How many line cards does this chassis support?
A: The 7512N provides 12 line card slots and accepts any combination of 7500R Series line cards, including FlexRoute.

Q: Is this an AC or DC power bundle?
A: This SKU is the AC power bundle with 8 x 3kW power supplies. DC variants are sold separately as -BND-DC.

Q: What fabric redundancy does the chassis provide?
A: The six included FM-R fabric modules provide 5+1 redundancy.

Q: What port density can the 7512R reach?
A: With suitable line cards it scales to up to 432 x 100GbE ports or 1,728 x 10GbE/25GbE ports, with up to 115Tbps of throughput.

Q: Can I add a second supervisor?
A: Yes. The chassis has two supervisor slots, and this bundle includes one Sup2-D supervisor.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
