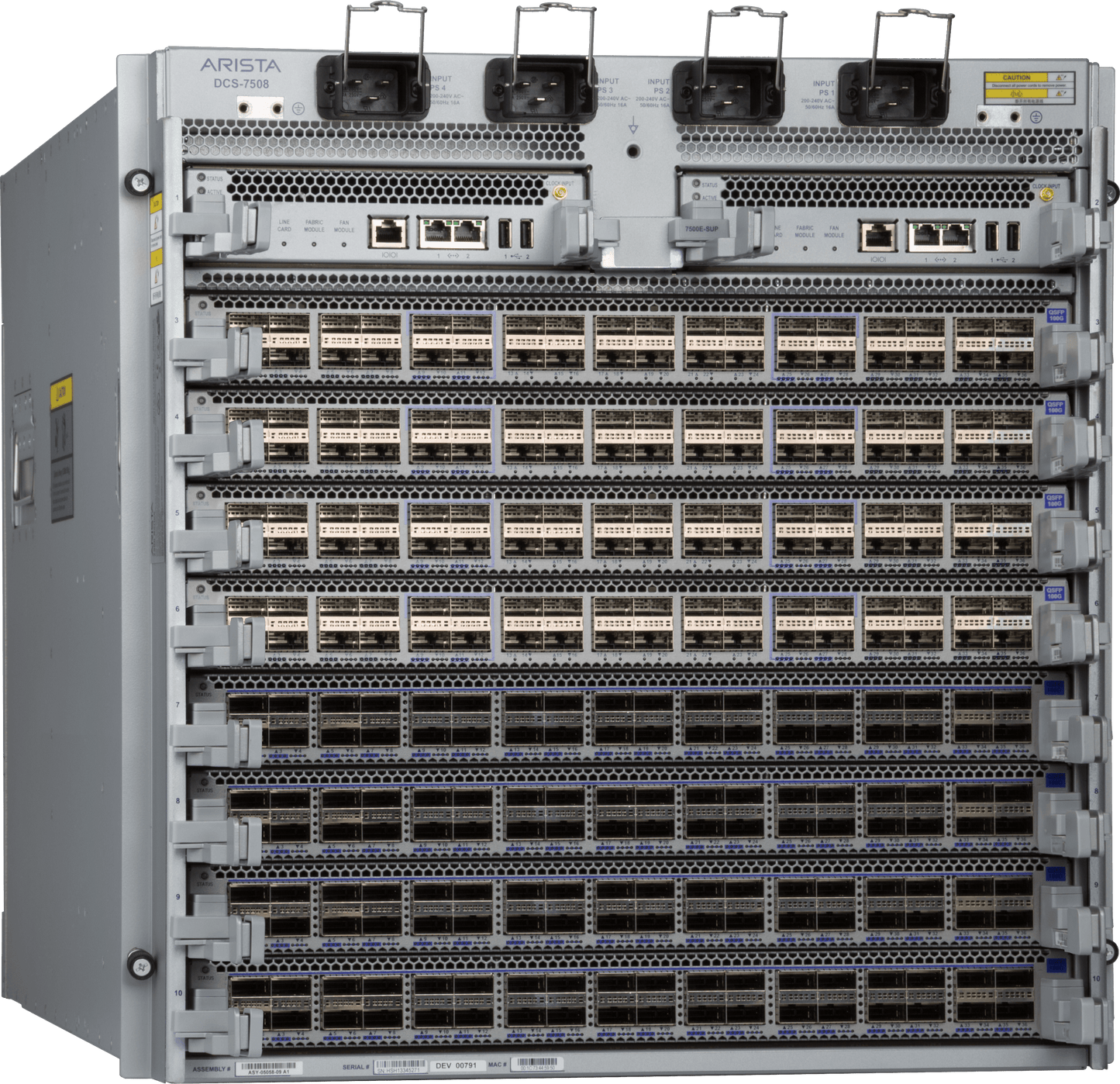

Arista DCS-7508N-CH | 7500R3 Series 7508N 8-Slot Modular Chassis Switch, 13 RU, Bare Chassis

Authorised Arista Partner

SKU:DCS-7508N-CH

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Stock Status: Enquire

Description

The Arista 7508N is an 8-slot, 13 RU modular chassis switch from the 7500R3 Series of data centre switch routers, built for high-density 400G, 100G and 25G spine and core deployments. It provides 2 supervisor slots, 8 line card slots and 6 fabric module slots, and scales to 153 Tbps and 32 Bpps of throughput with up to 192 x 400G or 768 x 100G ports. This SKU is the bare chassis only, so supervisors, line cards, fabric modules and power supplies are ordered separately.

The chassis supports 7500R3 and 7500R3K line cards with deep packet buffers and a virtual output queue architecture, and is backward compatible with previous 7500R Series components including mixed-mode operation. It offers 8 power supply slots with N+N grid redundancy, 1+1 supervisor redundancy, fabric redundancy and N+1 fan redundancy, with all components hot-swappable and front-to-rear airflow. Arista EOS provides a single binary image with CloudVision, LANZ and ZTP support on an extensible Linux-based platform.

Features

- Part of the 7500R3 Series with 230 Tbps system fabric capacity at series level
- Supports 7500R3 and 7500R3K line cards (400G OSFP/QSFP-DD, 100G QSFP, 25G SFP)
- Deep packet buffers of up to 16GB per line card with virtual output queue architecture
- N+N grid redundant power, 1+1 supervisor redundancy, fabric redundancy and N+1 fan redundancy
- All components hot-swappable with front-to-rear airflow
- Arista EOS single binary image with CloudVision, LANZ, ZTP and an extensible Linux-based platform
- FlexRoute, Accelerated sFlow, Algorithmic ACLs and Inband Network Telemetry support on line cards
- Backward compatibility and mixed-mode operation with previous 7500R Series components

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 8 line card slots
- 2 supervisor slots (1+1 redundancy)
- 6 fabric module slots
- 8 power supply slots (AC or DC, N+N redundancy)
- 13 RU chassis
- Up to 153 Tbps / 32 Bpps throughput
- Up to 192 x 400G ports
- Up to 768 x 100G ports
- Maximum density: 1536 x 10G, 1536 x 25G, 288 x 40G, 1536 x 50G
- Dimensions (H x W x D): 22.75 x 17.3 x 31.3 in (57.8 x 44.1 x 79.5 cm)
- Weight: 95 lbs (43.1 kg) chassis only, 400 lbs (182 kg) full system
- Maximum power consumption: 9,024 W (internal, at 40C ambient, 100% load, excluding optics)
- Compatible fabric module: DCS-7508R3-FM
- Compatible power supplies: PWR-3KT-AC-RED, PWR-3KT-HV-RED, PWR-3K-DC-RED (3000 W each)
- Compatible supervisor: DCS-7500-SUP2 (32 GB DRAM, 4 GB flash)
- Front-to-rear airflow
- Operating temperature: 0 to 40 C (32 to 104 F)
- Relative humidity: 5 to 90%

FAQs

Q: Does the DCS-7508N-CH include supervisors, line cards and power supplies?
A: No. This SKU is the bare 8-slot chassis only. Supervisors, line cards, fabric modules and power supplies are ordered separately.

Q: Which supervisor is compatible with this chassis?
A: The chassis uses the DCS-7500-SUP2 supervisor, with 32 GB DRAM, 4 GB flash and a multi-core x86 processor. It has 2 supervisor slots for 1+1 redundancy.

Q: Which fabric module and power supplies does the 7508N use?
A: The compatible fabric module is the DCS-7508R3-FM, which provides graceful degradation redundancy and an integrated fan module. Compatible 3000 W power supplies are PWR-3KT-AC-RED, PWR-3KT-HV-RED and PWR-3K-DC-RED.

Q: What port densities can the 7508N support?
A: Fully populated, the chassis supports up to 192 x 400G, 768 x 100G, 1536 x 25G or 1536 x 10G ports, with up to 153 Tbps and 32 Bpps of throughput.

Q: Can I use AC or DC power with this chassis?
A: Yes. The 8 power supply slots accept AC or DC 3000 W power supplies with N+N grid redundancy.

Q: Is the 7508N compatible with earlier 7500R Series components?
A: Yes. The chassis supports backward compatibility and mixed-mode operation with previous 7500R Series components, alongside 7500R3 and 7500R3K line cards.
