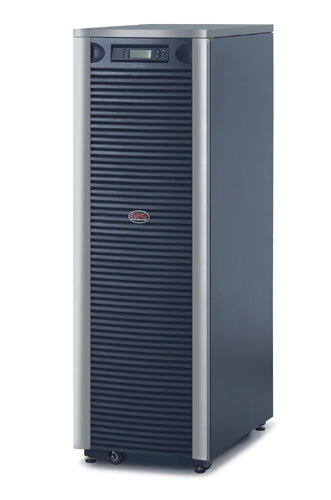

• APC Symmetra LX 12kVA tower server, dark blue with silver ribbed panel
1 1

APC

APC SYA12K16IXR | Symmetra LX 12kVA Tower UPS, Scalable to 16kVA, N+1, Ext. Run

APC SYA12K16IXR | Symmetra LX 12kVA Tower UPS, Scalable to 16kVA, N+1, Ext. Run

Authorised APC Partner

SYA12K16IXR

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

This Symmetra LX 12kVA tower UPS delivers 8400 W of three-phase protection and scales to 16kVA in 4kVA power increments, making it suited to server rooms and data centres that need to grow capacity without replacing the system. The N+1 redundant modular architecture and extended-run configuration provide fault tolerance and longer battery autonomy for critical loads.

Output voltage is configurable for 220, 230 or 240 V and the unit accepts 230 V or 400 V three-phase input, with hard wire 3-wire output. Nine battery slots are filled with four free, runtime can be extended with SYAXR9B9I battery cabinets, and a Web/SNMP management card is included for network monitoring.

Features

- N+1 redundant modular power architecture
- Scalable in 4 kVA increments from 12 kVA to 16 kVA
- Extended-run configuration, expandable with SYAXR9B9I battery cabinets
- Output voltage configurable for 220, 230 or 240 V
- Includes Web/SNMP management card for network monitoring

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Rated power: 12000 VA / 8400 W
- Scalable to 16 kVA in 4 kVA power increments
- N+1 redundant, extended-run tower configuration
- Input voltage: 230 V / 400 V three-phase (also 220/240/380/415 V)
- Output voltage: 230 V, configurable for 220/230/240 V
- Output connection: hard wire 3-wire (H N + E)
- Battery type: lead-acid, 9 battery slots filled and 4 free
- Battery recharge time: 7.5 hours
- Replacement battery: SYBT5
- Power module slots: 3 filled, 2 free
- Frequency: 45 to 65 Hz auto-sensing
- Dimensions (H x W x D): 151.6 x 48.3 x 72.6 cm
- Net weight: 488.64 kg
- Not rack-mountable
- Includes Web/SNMP management card, software CD, documentation and user manual

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: Can this UPS be upgraded beyond 12kVA?
A: Yes. The Symmetra LX scales to 16 kVA in 4 kVA power increments, and this unit has two free power module slots.

Q: Is the output voltage adjustable?
A: Yes. The nominal output of 230 V can be configured for 220, 230 or 240 V.

Q: How is the UPS connected to the load and mains?
A: Output is hard wire 3-wire (H N + E). Input is three-phase at 230 V or 400 V, with 220, 240, 380 and 415 V also supported.

Q: Can I add more battery runtime?
A: Yes. This is an extended-run tower with four free battery slots, and it can be expanded with SYAXR9B9I battery cabinets.

Q: Does it include network management?
A: Yes. A Web/SNMP management card is included for remote monitoring.

Q: Can this UPS be mounted in a rack?
A: No. It is a floor-standing tower unit and is not rack-mountable.
