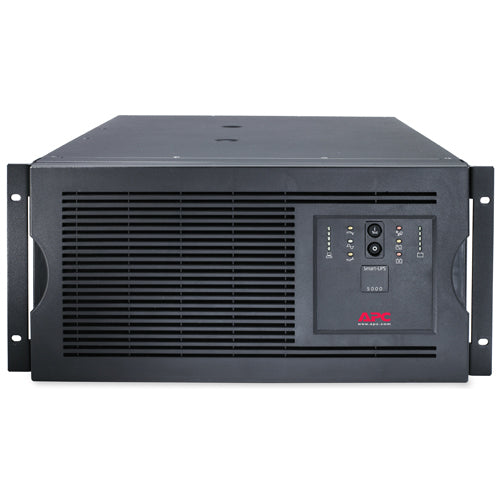

• APC SUA5000RMI5U rack-mountable Smart-UPS 5000VA with control panel
1 1

APC

APC SUA5000RMI5U | Smart-UPS 5000VA Rack/Tower UPS, 4000W, 230V, 8x C13 + 2x C19

APC SUA5000RMI5U | Smart-UPS 5000VA Rack/Tower UPS, 4000W, 230V, 8x C13 + 2x C19

Authorised APC Partner

SUA5000RMI5U

Stock Status: Enquire

$6,675.75 inc. GST
$6,068.86 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Smart-UPS 5000VA/4000W line-interactive rack/tower UPS provides sine wave battery backup for servers and network equipment from a 5U chassis with 230V input and output. It offers 8x IEC C13 and 2x IEC C19 outlets, plus 4 IEC jumper outlets, so a mix of rack equipment can be powered from a single unit, and it can be installed in a rack or stood as a tower.

A SmartSlot accepts an optional Web/SNMP network management card, and a serial (DB-9) port supports automatic shutdown. Intelligent battery management helps extend battery life, the battery is hot-swappable, and PowerChute management software is included. The replacement battery cartridge is the RBC55.

Features

- Pure sine wave output for sensitive electronics
- Hot-swappable battery for replacement without shutting down the UPS
- Intelligent battery management to extend battery life
- SmartSlot for an optional Web/SNMP network management card
- Audible alarm for power problems
- 16-segment LED visual display
- PowerChute management software included
- Rack or tower installation with rack mounting hardware

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Capacity: 5000VA / 4000W
- Input voltage: 230V nominal, adjustable range 151 to 302 VAC
- Input frequency: 50/60 Hz +/- 5 Hz (auto sensing)
- Output voltage: 220 to 240 VAC, sine wave output
- Outlets: 8x IEC C13 and 2x IEC C19 (plus 4 IEC jumper outlets)
- Form factor: 5U rackmount/tower
- Runtime: 9.4 minutes at full load, 26.7 minutes at half load
- Battery recharge time: 3 hours
- Replacement battery cartridge: RBC55
- Communications: serial via DB-9, SmartSlot expansion
- Surge protection: 480 Joules, RJ45 data line protection
- Typical transfer time: 2 ms
- Efficiency at full load: 96%
- Operating temperature: 0 to 40 C
- Dimensions (H x W x D): 222 x 483 x 660 mm
- Weight: 97.73 kg

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What outlets does the SUA5000RMI5U provide?
A: It provides 8x IEC C13 and 2x IEC C19 outlets, plus 4 IEC jumper outlets.

Q: Can it be installed in a rack and as a tower?
A: Yes. It is a 5U unit that can be rack mounted or stood as a tower, and rack mounting hardware is included.

Q: Can I add network management to this UPS?
A: Yes. It has a SmartSlot for an optional Web/SNMP network management card, and a serial (DB-9) port for communications and automatic shutdown.

Q: What is the runtime of this UPS?
A: Runtime is 9.4 minutes at full load and 26.7 minutes at half load.

Q: Which replacement battery does it use?
A: It uses the RBC55 replacement battery cartridge, and the battery is hot-swappable.

Q: What input and output voltage does it use?
A: It has a 230V nominal input and delivers a sine wave output in the 220 to 240 VAC range.

APC Replacement Battery Finder

How Do I Choose the Right APC UPS Battery?

Finding the correct replacement battery for your APC UPS can be confusing Our APC Battery Finder makes it easy. Simply enter your UPS model to get the exact battery match, the correct quantity required, and guidance if your unit is end-of-life with upgrade options.

Designed for fast, accurate results, this tool helps Australian businesses & IT teams avoid downtime and order the right APC UPS battery the first time.

Find My APC Battery
