APC

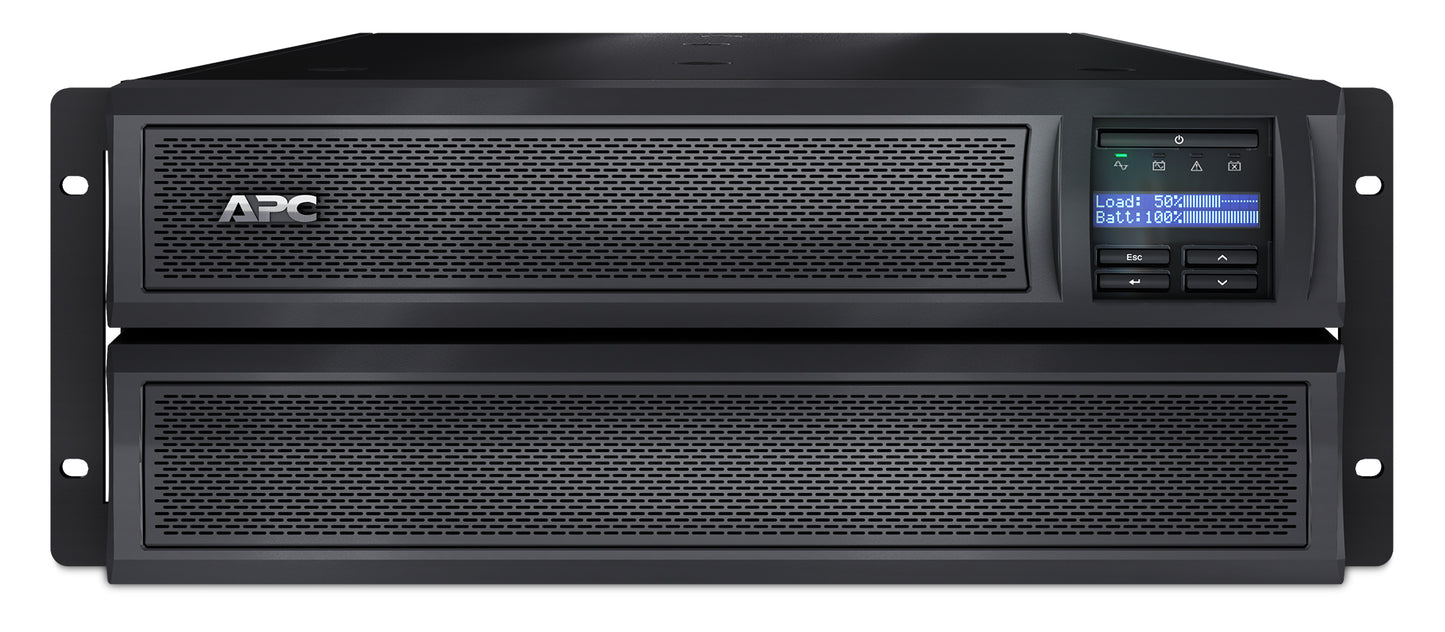

APC SMX2200HV | Smart-UPS X 2200VA Rack/Tower UPS, 1980W, LCD, C13/C19

APC SMX2200HV | Smart-UPS X 2200VA Rack/Tower UPS, 1980W, LCD, C13/C19

Authorised APC Partner

SMX2200HV

$3,297.86 inc. GST
$2,998.05 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

In stock:6

Description

The Smart-UPS X 2200VA is a line-interactive, sine wave UPS rated 1980W in a 4U rack/tower convertible chassis, built to protect servers and network equipment on 200-240V supply. It combines an LCD status and control console with 8x IEC C13 and 2x IEC C19 outlets and an extended-runtime battery option, so runtime can scale as the load grows.

A SmartSlot and USB port allow network management cards and shutdown software to be added, with three switchable outlet groups for granular load management and sequenced shutdown and reboot. Full-time multi-pole noise filtering and surge protection, a hot-swappable battery and auto recognition of external battery packs keep the unit serviceable and the runtime accurate.

Features

- Extended runtime via external battery packs (SMX120BP)
- Auto recognition of external batteries adjusts runtime automatically
- Rack/tower convertible 4U chassis
- Three switchable outlet groups for granular load management
- Sequenced network shutdown and reboot
- Hot-swappable battery
- Cold-start capable
- Energy meter showing actual kWh usage
- Green mode for very high operating efficiency
- Emergency Power Off (EPO) support

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Output capacity: 2200VA / 1980W
- Topology: Line-interactive, sine wave output
- Nominal output voltage: 230V (also 208, 220, 240V)
- Nominal input voltage: 208V, 230V (also 220, 240V)
- Input voltage range for main operations: 140 - 280V
- Input connection: IEC-320 C20, cord length 1.83 m
- Output connections: 8x IEC 320 C13, 2x IEC 320 C19, 2x IEC jumpers
- Transfer time: 2-4 ms
- Battery: maintenance-free sealed lead-acid, typical recharge time 3 hours
- Replacement battery: APCRBC143 (1 RBC)
- Interfaces: USB, 1x SmartSlot
- Control panel: LED status display with multi-function LCD status and control console
- Surge energy rating: 645 Joules
- Form factor: 4U rack/tower convertible
- Operating temperature: 0 to 40 C

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What outlets does the SMX2200HV provide?
A: It provides 8x IEC 320 C13 and 2x IEC 320 C19 outlets, plus 2x IEC jumpers, arranged in three switchable outlet groups.

Q: Can the runtime be extended?
A: Yes. External battery packs such as the SMX120BP can be connected, and the UPS automatically recognises them and adjusts the estimated runtime.

Q: Can it be mounted in a rack?
A: Yes. It is a 4U rack/tower convertible unit, so it can be installed in a rack or used as a tower.

Q: Does it support network management?
A: It has one SmartSlot for an optional network management card and a USB port for local connection and shutdown software.

Q: What input voltage does it require?
A: It is designed for 200-240V supply (nominal 208V or 230V) with an IEC-320 C20 inlet, and accepts input in the 140 - 280V range before switching to battery.

Q: Which replacement battery does it use?
A: It uses one APCRBC143 replacement battery cartridge, which is hot-swappable.
