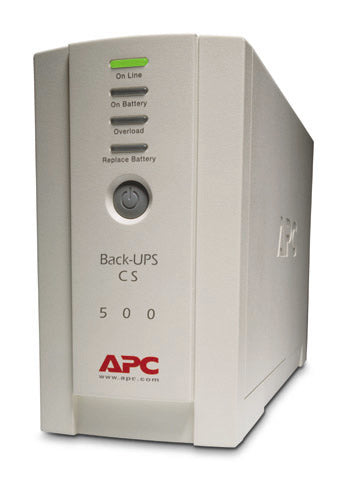

• APC BK500EI 500VA UPS with green LED indicators and power button
1 1

APC

APC BK500EI | Back-UPS CS 500VA/300W Tower UPS, 230V, 4x IEC C13, USB/Serial

APC BK500EI | Back-UPS CS 500VA/300W Tower UPS, 230V, 4x IEC C13, USB/Serial

Authorised APC Partner

BK500EI

In stock:10

$199.87 inc. GST
$181.70 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC Back-UPS CS BK500EI is a 500VA/300W standby tower UPS for 230V supplies, providing battery backup and surge protection for computers, routers and small office network equipment. It offers four IEC C13 outlets, USB and RS-232 serial communications, and a user-replaceable sealed lead-acid battery in a compact tower form factor.

Three outlets are battery backed and one is surge only, with data line protection on an RJ-45 port for phone, modem or DSL connections. Automatic voltage regulation helps stabilise fluctuating input voltage, while PowerChute Personal Edition software and the USB/serial connection allow a safe, orderly system shutdown during extended outages. The replacement battery cartridge is the RBC2.

Features

- Battery backup and surge protection for computers and network equipment
- User-replaceable battery restores backup capacity (RBC2 sold separately)
- Data line protection guards against surges on phone, modem and DSL lines
- LED display shows unit and utility power status
- Compact tower size suits a variety of environments
- Automatic voltage regulation (AVR) stabilises input voltage fluctuations
- Safe system shutdown via USB/serial and bundled software

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- 500VA / 300W output capacity
- Standby (offline) topology
- 230V nominal input and output voltage, 10A input
- Stepped approximation to a sinewave output
- 4 x IEC 60320 C13 outlets (3 battery backup + 1 surge only)
- 2 x IEC jumper cords (surge only)
- Sealed lead-acid (VRLA) battery, 12V 7Ah
- Replacement battery cartridge: RBC2
- Transfer time: 6 ms typical, 10 ms maximum
- Data line protection via RJ-45 telephone/modem/DSL port
- USB and RS-232 serial communication
- PowerChute Personal Edition software
- Tower form factor, approx. 16.5 x 9.1 x 28.4 cm, approx. 6.3 kg

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What type of UPS is the APC BK500EI?
A: It is a standby (offline) tower UPS rated at 500VA/300W for 230V supplies, suited to desktop computers, routers and small network equipment.

Q: How many outlets does it have and which are battery backed?
A: It has four IEC C13 outlets. Three provide battery backup and surge protection, and one is surge protection only.

Q: Can I replace the battery myself?
A: Yes. The battery is user replaceable. The replacement battery cartridge is the RBC2, sold separately.

Q: How does the UPS communicate with a computer?
A: It provides USB and RS-232 serial connections, and works with PowerChute Personal Edition software to enable a safe system shutdown.

Q: Does it protect phone or DSL lines?
A: Yes. An RJ-45 data line port provides surge protection for telephone, modem or DSL connections.

Q: Is it suitable for servers or rack equipment?
A: It is a compact tower UPS designed for small office and network equipment. It is not a rack-mount unit, and its 300W capacity should be checked against your total load.

APC Replacement Battery Finder

How Do I Choose the Right APC UPS Battery?

Finding the correct replacement battery for your APC UPS can be confusing Our APC Battery Finder makes it easy. Simply enter your UPS model to get the exact battery match, the correct quantity required, and guidance if your unit is end-of-life with upgrade options.

Designed for fast, accurate results, this tool helps Australian businesses & IT teams avoid downtime and order the right APC UPS battery the first time.

Find My APC Battery
