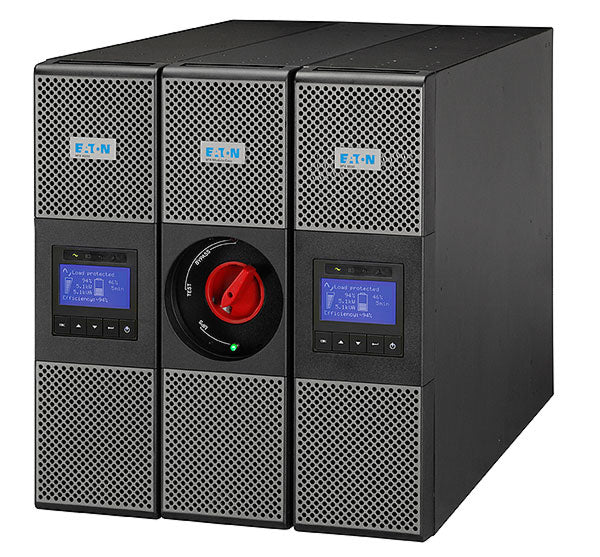

• Eaton 9PXMEZ11KI 9PX ModularEasy 11kVA UPS with perforated panels and red switch
1 1

Eaton

Eaton 9PXMEZ11KI | 9PX ModularEasy Parallel & Bypass Module, 8kVA/11kVA

Eaton 9PXMEZ11KI | 9PX ModularEasy Parallel & Bypass Module, 8kVA/11kVA

Authorised Eaton Partner

9PXMEZ11KI

Stock Status: Enquire

$5,410.44 inc. GST
$4,918.58 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.
End of life
This product is end of life. Contact us for alternatives.

Description

The Eaton 9PX ModularEasy 9PXMEZ11KI is a parallel and system bypass module for connecting two 9PX 8kVA or 11kVA UPS units into a parallel or redundant system. It has a hardwired (terminal block) input and bypass input, with an output of 4 x IEC C19 (16A) plus terminal blocks for load distribution.

The built-in maintenance bypass lets you service or replace a UPS without interrupting the connected load. The module is 3U high and fits in a rack or stands as a tower beside the UPS units. A rack mounting kit is not included.

Features

- Connects two 9PX 8kVA or 11kVA UPS units for added capacity or redundancy
- Built-in system (maintenance) bypass allows UPS service or replacement without interrupting the load
- Hardwired input with 4 x C19 outputs plus terminal block outputs for load distribution
- Fits 3U in a rack or stands as a tower alongside the 9PX UPS
- Rack mounting kit is not included

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Replacement Battery Finder

Technical Specifications

- Parallel and system bypass module for 2 x 9PX 8kVA/11kVA UPS
- Input and bypass: terminal blocks (hardwired)
- Output: 4 x IEC C19 (16A) plus terminal blocks
- Nominal voltage: 200-250 V AC, 50/60 Hz
- Input nominal current: 100 A
- Maximum power: 22000 VA
- Dimensions: 690 x 440 x 130 mm (3U)
- Weight: 15 kg
- Operating temperature: 0 to 40 C
- Humidity: 0 to 95% non-condensing
- Safety standard: IEC/EN 62040-1
- CE marked

FAQs

Q: Which UPS models does the 9PXMEZ11KI work with?
A: It is designed for two Eaton 9PX 8kVA or 11kVA UPS units, connected in parallel or redundant operation.

Q: Is the input plug-in or hardwired?
A: The input and bypass input use terminal blocks, so the module is hardwired to the supply.

Q: What outputs does the module provide?
A: It provides 4 x IEC C19 (16A) outlets plus terminal block outputs for load distribution.

Q: Can I service a UPS without shutting down the load?
A: Yes. The built-in system bypass lets you service or replace a UPS without interrupting the connected load.

Q: What bypass breaker is recommended?
A: For parallel operation, a D curve 125A breaker is recommended with 9PX11000 units and 100A with 9PX8000 units. For redundancy only, use 63A with 9PX11000 and 50A with 9PX8000.

Q: Does it come with a rack mounting kit?
A: No. The module is 3U and fits a rack or stands as a tower, but the rack mounting kit is not included.
