Yealink MB-12X PRO | MeetingBoard Pro PTZ Camera, 12x Optical Zoom, 4K/30fps
Yealink MB-12X PRO | MeetingBoard Pro PTZ Camera, 12x Optical Zoom, 4K/30fps
Authorised Yealink Partner
SKU:MB-12X Pro
In stock: 38
Couldn't load pickup availability
Description
Description

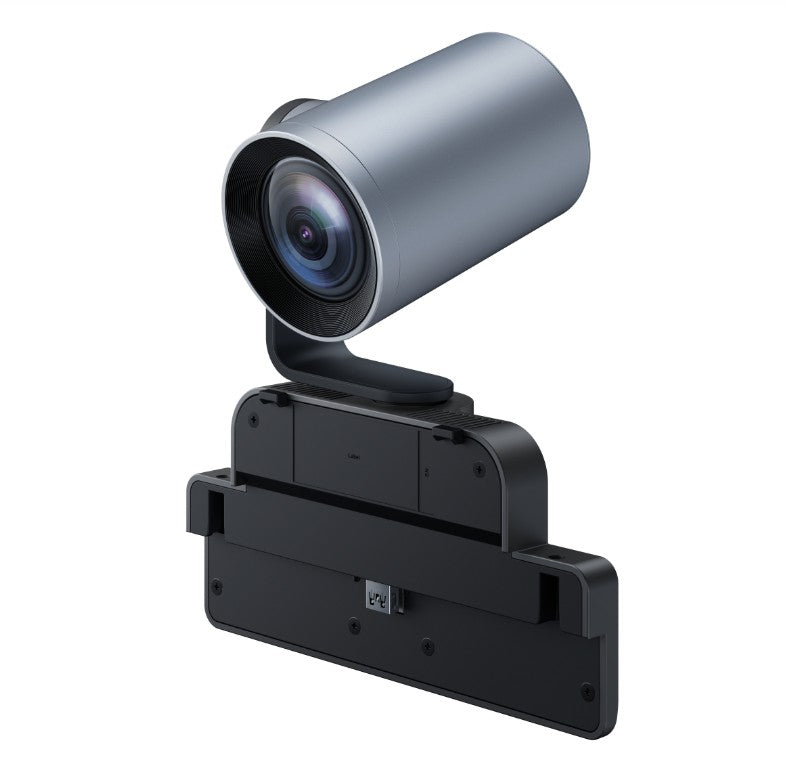

The Yealink MB-12X Pro is a 4K PTZ camera module with 12x optical zoom, built for the second-generation Yealink MeetingBoard Pro. It mounts directly on top of the board through a custom slot with no extra cables or brackets, and works with the built-in wide-angle lens to form a triple-camera 4K system for medium to large meeting rooms.
AI algorithms handle voice positioning, auto framing, speaker tracking and picture-in-picture, while an 8MP Sony image sensor delivers 4K/30fps video. Pan of ±100° and tilt to -90° give flexible room coverage, and an electric privacy shutter provides added control for shared meeting spaces.
Features
Features
- 12x optical zoom for medium to large meeting rooms
- Precise and fast camera tracking
- Plug and play custom slot mounts directly on top of MeetingBoard Pro without extra cables or brackets
- Forms a triple-camera 4K system with the built-in wide-angle lens
- AI voice positioning, auto framing, speaker tracking and picture-in-picture
- Electric privacy shutter
Warranty
Warranty
Yealink offers a 36-month limited hardware warranty on most devices, including SIP phones, video conferencing systems, Teams-certified hardware, and headsets. This warranty covers defects in materials and workmanship from the date of purchase.
Extended Warranty Options:
IP Trading can provide extended warranty solutions for Yealink productsup to 5.5 years total coverage. Contact us to customise a plan that suits your deployment.
https://www.yealink.com/website-service/attachment/library-file/documents/20230920/20230920021310144a2ab989c4cafa71e0ab9cc4478ef.pdf
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Video output: 4K/30fps
- Zoom: 12x optical
- Lens angle: DFOV 90°, HFOV 80°, VFOV 49°
- Focal length: 3.4 - 40.4 mm
- Aperture: F1.8 - F3.62
- Pan range: ±100°
- Tilt range: 0° / -90°
- Image sensor: 8MP Sony
- Minimum illumination: 0.5 lux (day), 0.1 lux (night)
- Signal-to-noise ratio: >63 dB
- Automatic exposure and automatic white balance
- Electric privacy shutter: auto
- Physical port: Yealink custom port
- Installation: MeetingBoard custom slot
- Power consumption: average 8.8 W, peak 13.3 W, standby 8.4 W
- Weight: 1 kg net
- Package contents: MB-12X Pro, Quick Start Guide, screwdriver, mounting screws
FAQs
Q: Which Yealink devices is the MB-12X Pro compatible with?
A: The MB-12X Pro is designed for the second-generation Yealink MeetingBoard Pro and mounts through the board's custom slot.
Q: Do I need extra cables or brackets to install it?
A: No. The camera module attaches directly on top of the MeetingBoard Pro via the custom slot using the supplied mounting screws, with no extra cables or brackets.
Q: What video resolution and zoom does it support?
A: It outputs 4K at 30fps and provides 12x optical zoom using an 8MP Sony image sensor.
Q: How does it work with the built-in camera on the MeetingBoard Pro?
A: It operates with the board's built-in wide-angle lens to form a triple-camera system, enabling AI auto framing, speaker tracking and picture-in-picture.
Q: What room size is it suited to?
A: The 12x optical zoom and AI tracking make it suited to medium to large meeting rooms.
Q: Does it include a privacy feature?
A: Yes. It includes an electric privacy shutter that operates automatically.
