Yealink UVC8X Mount Kits | UVC8X Camera Mount Kit, Wall, TV Stand, Ceiling

Name: Yealink UVC8X Mount Kits | UVC8X Camera Mount Kit, Wall, TV Stand, Ceiling
Brand: Yealink
SKU: UVC8X Mount Kits
Price: 50.05 AUD
Availability: BackOrder

Authorised Yealink Partner

SKU:UVC8X Mount Kits

Stock Status: Enquire

$50.05 inc. GST

$45.50 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Yealink UVC8X Mount Kit is a camera mounting kit for the Yealink UVC84 USB PTZ camera and UVC86 intelligent tracking camera. It supplies wall, TV stand and inverted ceiling mounts in one package, so the camera can be installed on the surface that suits each meeting room.

The TV stand mount fits displays up to 70 mm thick, and every mount uses the same 1/4"-20 camera screw, so installers can switch between configurations without special tools. All installation hardware is included.

Features

- Wall mounting option

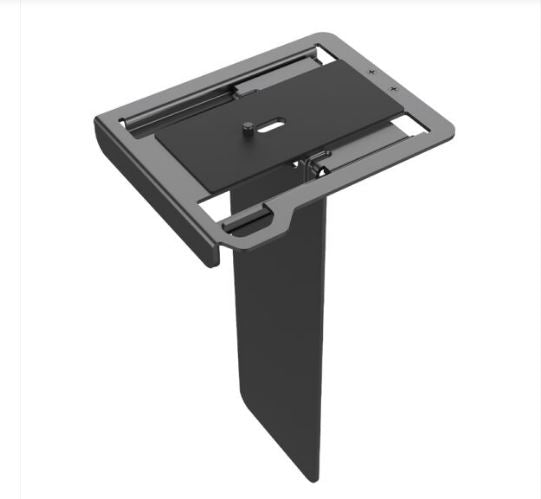

- TV or monitor top stand mount
- Inverted bracket for ceiling mounting
- All installation hardware included
- Same 1/4"-20 camera screw on every mount, so installers can switch between configurations without special tools

Warranty

Yealink offers a 36-month limited hardware warranty on most devices, including SIP phones, video conferencing systems, Teams-certified hardware, and headsets. This warranty covers defects in materials and workmanship from the date of purchase.
Extended Warranty Options:
IP Trading can provide extended warranty solutions for Yealink products—up to 5.5 years total coverage. Contact us to customise a plan that suits your deployment.
https://www.yealink.com/website-service/attachment/library-file/documents/20230920/20230920021310144a2ab989c4cafa71e0ab9cc4478ef.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Compatible with Yealink UVC84 USB PTZ Camera and UVC86 Intelligent Tracking Camera
- Includes wall mount, TV stand mount and inverted ceiling bracket
- Camera screw: 1/4"-20
- TV stand fits displays up to 70 mm (2.76") thick
- Dimensions, TV stand: 232 x 131 x 113.5 mm
- Dimensions, wall mount: 185 x 144 x 46.6 mm
- Dimensions, inverted bracket: 163 x 133 x 14.8 mm
- Installation hardware included

FAQs

Q: Which cameras does the UVC8X Mount Kit fit?
A: It is designed for the Yealink UVC84 USB PTZ camera and the Yealink UVC86 intelligent tracking camera.

Q: What mounting options are included?
A: The kit includes a wall mount, a TV stand mount and an inverted ceiling bracket, along with installation hardware.

Q: How thick a display can the TV stand mount accommodate?
A: The TV stand mount fits displays up to 70 mm (2.76") thick.

Q: How does the camera attach to the mounts?
A: The camera attaches with a 1/4"-20 screw, and the same screw size is used across all the mounts in the kit.

Q: Do I need to buy separate hardware for installation?
A: No. Installation hardware is included with the kit.
