Yealink

Yealink CTP18-STD | CTP18 8in Touch Panel for A20/A30, PoE Adapter, Bracket

Yealink CTP18-STD | CTP18 8in Touch Panel for A20/A30, PoE Adapter, Bracket

Authorised Yealink Partner

SKU:CTP18-STD

$614.79 inc. GST
$558.90 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

In stock: 24

Description

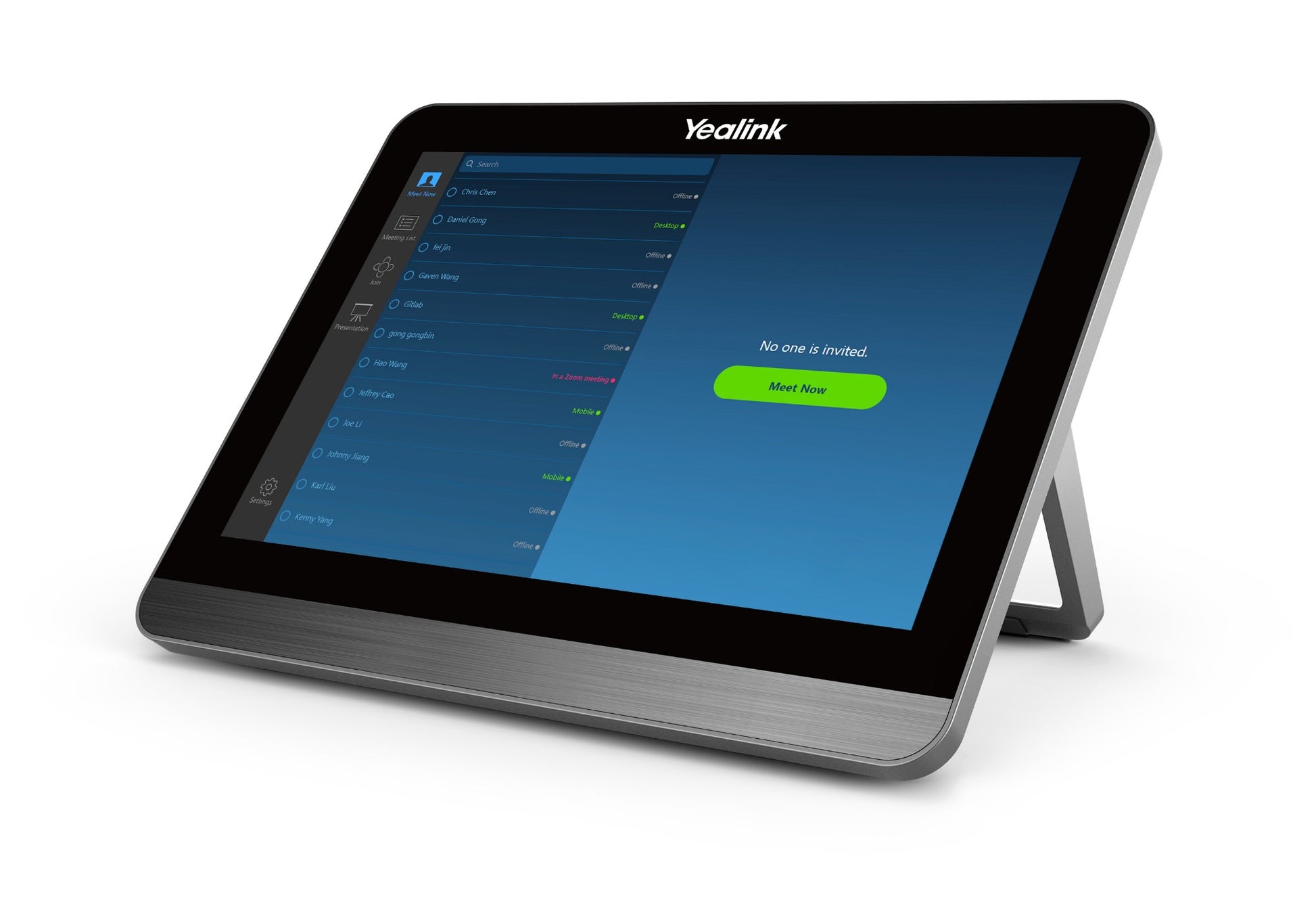

The Yealink CTP18-STD is an 8-inch IPS multi-touch collaboration touch panel for small and medium meeting rooms, supplied as the A20/A30 MeetingBar kit with wall mount bracket, PoE adapter and 7.5m Ethernet cable. It lets users create or join Microsoft Teams or Zoom meetings from the home screen, preview and adjust the camera, change participant layouts, record and annotate shared content.

The CTP18 connects to its paired Yealink video conferencing endpoint over PoE Ethernet or built-in dual-band Wi-Fi, with a single cable carrying both data and power to keep table cabling tidy. An integrated bracket gives a stepless 28 to 50 degree viewing angle, and the panel can be installed on a tabletop or wall mounted. It also works with the Yealink WPP20 Wireless Presentation Pod to annotate or control shared content directly on the panel.

Features

- Touch control to create or join meetings from the home screen
- Camera preview and adjustment, participant layout changes and recording from the panel
- Annotation on shared content
- Works with the Yealink WPP20 Wireless Presentation Pod to annotate or control shared content directly on the panel
- Connects to the paired endpoint via PoE cable or Wi-Fi
- Single PoE cable carries data and power, reducing table cabling
- Paired devices can be configured directly on the CTP18
- Adjustable screen angle with wall mount or tabletop installation

Warranty

Yealink offers a 36-month limited hardware warranty on most devices, including SIP phones, video conferencing systems, Teams-certified hardware, and headsets. This warranty covers defects in materials and workmanship from the date of purchase.
Extended Warranty Options:
IP Trading can provide extended warranty solutions for Yealink products—up to 5.5 years total coverage. Contact us to customise a plan that suits your deployment.
https://www.yealink.com/website-service/attachment/library-file/documents/20230920/20230920021310144a2ab989c4cafa71e0ab9cc4478ef.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- 8-inch IPS FHD capacitive touch screen, 1280 x 800 (16:10)
- 10-point multi-touch
- Android 10.0 based
- Power over Ethernet (IEEE 802.3af), PoE 48V 0.27A
- Built-in dual-band Wi-Fi (2.4GHz/5GHz) and Bluetooth
- 1 x RJ45 Ethernet, 1 x USB-C (debugging), 1 x reset slot
- Security: SRTP/TLS, AES 256-bit encryption, 802.1X
- Power consumption: 7W normal, 8W maximum
- Adjustable angle 28 to 50 degrees
- Dimensions (W x D x H): 202 x 151 x 100 mm at 50 degrees, 202 x 151 x 91.5 mm at 28 degrees
- In the box: CTP18, 7.5m and 3m Ethernet cables, cable lock box, PoE adapter, mounting bracket and accessories, Quick Start Guide

FAQs

Q: Which Yealink devices is the CTP18-STD kit intended for?
A: This kit is supplied for the Yealink MeetingBar A20 and A30. The CTP18 is also on the accessory compatibility lists for Microsoft Teams Rooms and Zoom Rooms.

Q: How is the CTP18 powered?
A: It is powered over Ethernet (IEEE 802.3af, 48V 0.27A). A PoE adapter is included in the box, so a single cable carries both data and power.

Q: Can it connect over Wi-Fi?
A: Yes. It has built-in dual-band Wi-Fi (2.4GHz/5GHz) and Bluetooth, and can connect to the paired endpoint via cable or Wi-Fi.

Q: What is included in the box?
A: The CTP18 panel, a 7.5m Ethernet cable, a 3m Ethernet cable, a cable lock box, a PoE adapter, a mounting bracket and accessories, and a Quick Start Guide.

Q: Can the panel be wall mounted?
A: Yes. A wall mount bracket is included, and the integrated bracket also allows tabletop use with a stepless 28 to 50 degree angle adjustment.

Q: Can users annotate shared content on the panel?
A: Yes. The CTP18 supports annotation on shared content, and with the Yealink WPP20 Wireless Presentation Pod it can annotate or control shared content directly on the panel.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
