Yealink

Yealink CM20 | SkySound CM20 Beamforming Ceiling Microphone, Grey, PoE

Yealink CM20 | SkySound CM20 Beamforming Ceiling Microphone, Grey, PoE

Authorised Yealink Partner

SKU:CM20

$1,414.27 inc. GST
$1,285.70 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

In stock: 80

Description

The Yealink CM20 is a grey SkySound beamforming ceiling array microphone built for medium to large conference rooms. It combines 16 omnidirectional microphones with 8 independent pickup zones for 360° voice capture, covering 30 sqm full-duplex and up to 60 sqm effective. A single PoE (IEEE 802.3af, Class 3) Ethernet cable carries both power and audio.

A built-in DSP provides acoustic echo cancellation, noise reduction and reverberation cancellation, so no external audio processor is needed when pairing with Yealink MVC systems. The 8 beam outputs support speaker tracking and camera tracking integration, and AES67 support suits networked audio deployments. In-ceiling, pendant and on-ceiling mounting options with a removable magnetic mesh cover keep the room looking tidy.

Features

- 16 omnidirectional microphones providing 360° capture across 8 independent pickup zones
- Noise reduction, echo cancellation and reverberation cancellation for clear audio
- 8 beam outputs for speaker tracking, with integration with room cameras for camera tracking
- Integrated DSP for plug-and-play with Yealink MVC systems, with no external audio processor needed
- AES67 support and PoE, so a single Ethernet cable carries power and audio
- In-ceiling, pendant and on-ceiling installation options

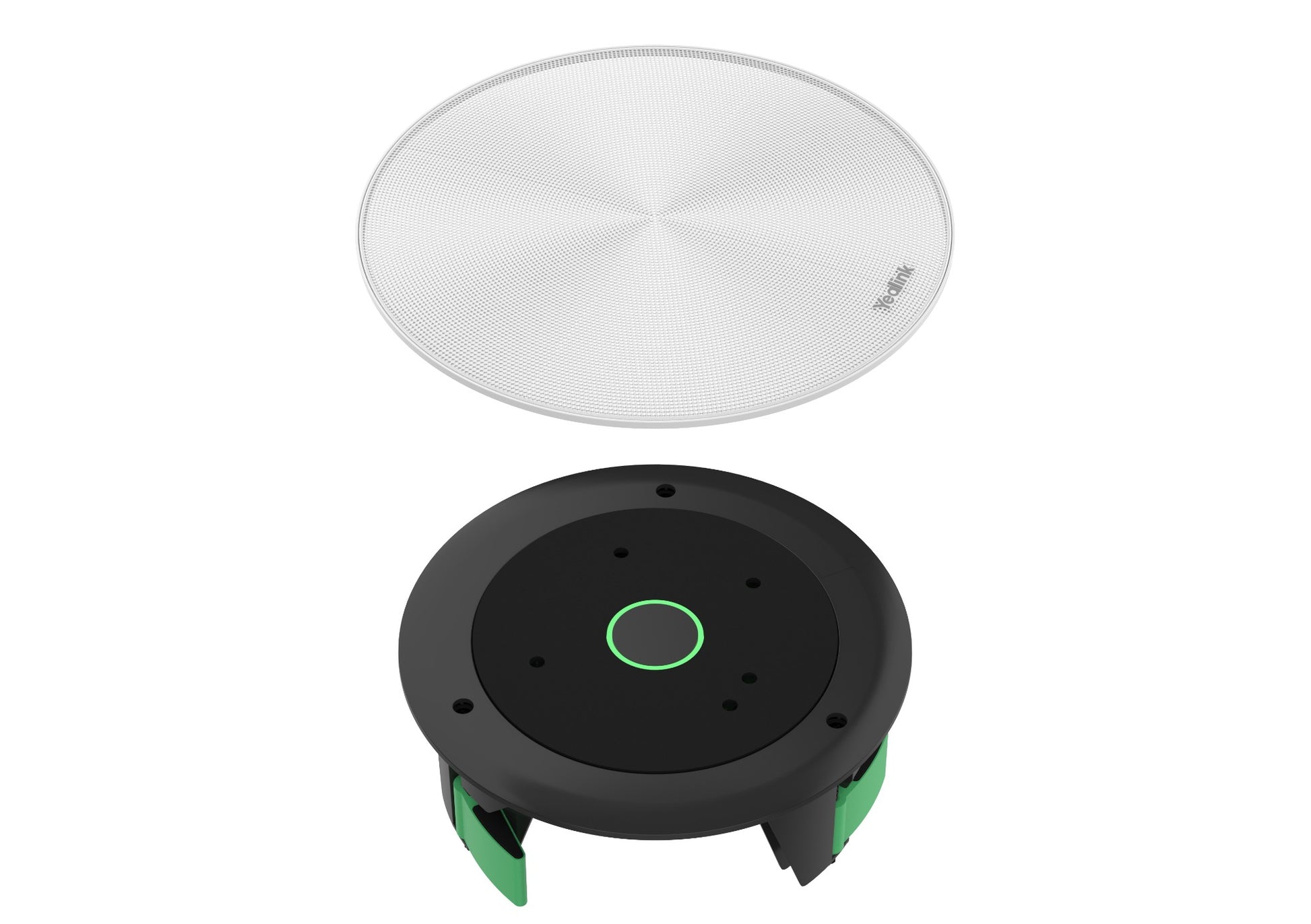

- Removable magnetic mesh cover that is discreet and easy to maintain

Warranty

Yealink offers a 36-month limited hardware warranty on most devices, including SIP phones, video conferencing systems, Teams-certified hardware, and headsets. This warranty covers defects in materials and workmanship from the date of purchase.
Extended Warranty Options:
IP Trading can provide extended warranty solutions for Yealink products—up to 5.5 years total coverage. Contact us to customise a plan that suits your deployment.
https://www.yealink.com/website-service/attachment/library-file/documents/20230920/20230920021310144a2ab989c4cafa71e0ab9cc4478ef.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Microphone: 16 omnidirectional elements, 360° pickup
- 8 independent pickup zones and 8 beam outputs
- Coverage: 30 sqm full-duplex (3.2 m radius), up to 60 sqm effective (4.5 m radius)
- Frequency response: 120 Hz - 16 kHz
- Maximum SPL: 122 dBSPL
- Signal-to-noise ratio: 86 dB @ <1% THD
- Sensitivity: 0 dBV/Pa, 94 dBSPL @ 1 kHz
- Built-in DSP with AEC, noise reduction and reverberation cancellation
- Interface: 1 x RJ-45
- Power: PoE (IEEE 802.3af, Class 3), 5.7 W typical, 9 W rated
- AES67 support
- Size: Φ223 x H83 mm (with mesh cover)
- Weight: 615 g
- Operating temperature: 0 to 50 C
- Mounting: in-ceiling, pendant and on-ceiling
- Colour: Grey

FAQs

Q: How is the Yealink CM20 powered?
A: It is powered over Ethernet using PoE (IEEE 802.3af, Class 3) through its single RJ-45 port, so one network cable carries both power and audio. Typical power draw is 5.7 W.

Q: What room size does the CM20 cover?
A: It provides 30 sqm of full-duplex coverage (3.2 m radius) and up to 60 sqm of effective coverage (4.5 m radius), based on a 2.8 m ceiling height.

Q: Does the CM20 need an external audio processor?
A: No. It has an integrated DSP with echo cancellation, noise reduction and reverberation cancellation, and is designed for plug-and-play use with Yealink MVC systems.

Q: What mounting options are available?
A: The CM20 supports in-ceiling, pendant and on-ceiling installation. A length-adjustable pole and suspend pole adapter are available as optional extras for pendant mounting.

Q: Does the CM20 support camera tracking?
A: Yes. Its 8 beam outputs support speaker tracking and can be integrated with room cameras for camera tracking.

Q: Does the CM20 support networked audio?
A: Yes. It supports AES67, which suits networked audio deployments alongside its PoE connection.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
