Ubiquiti WAVE-PICO | UISP Wave Pico 60 GHz PtMP Station, 2 Gbps, 5 GHz Backup
Ubiquiti WAVE-PICO | UISP Wave Pico 60 GHz PtMP Station, 2 Gbps, 5 GHz Backup
Authorised Ubiquiti Partner
SKU:Wave-Pico
In stock: 52
Couldn't load pickup availability
Description
Description

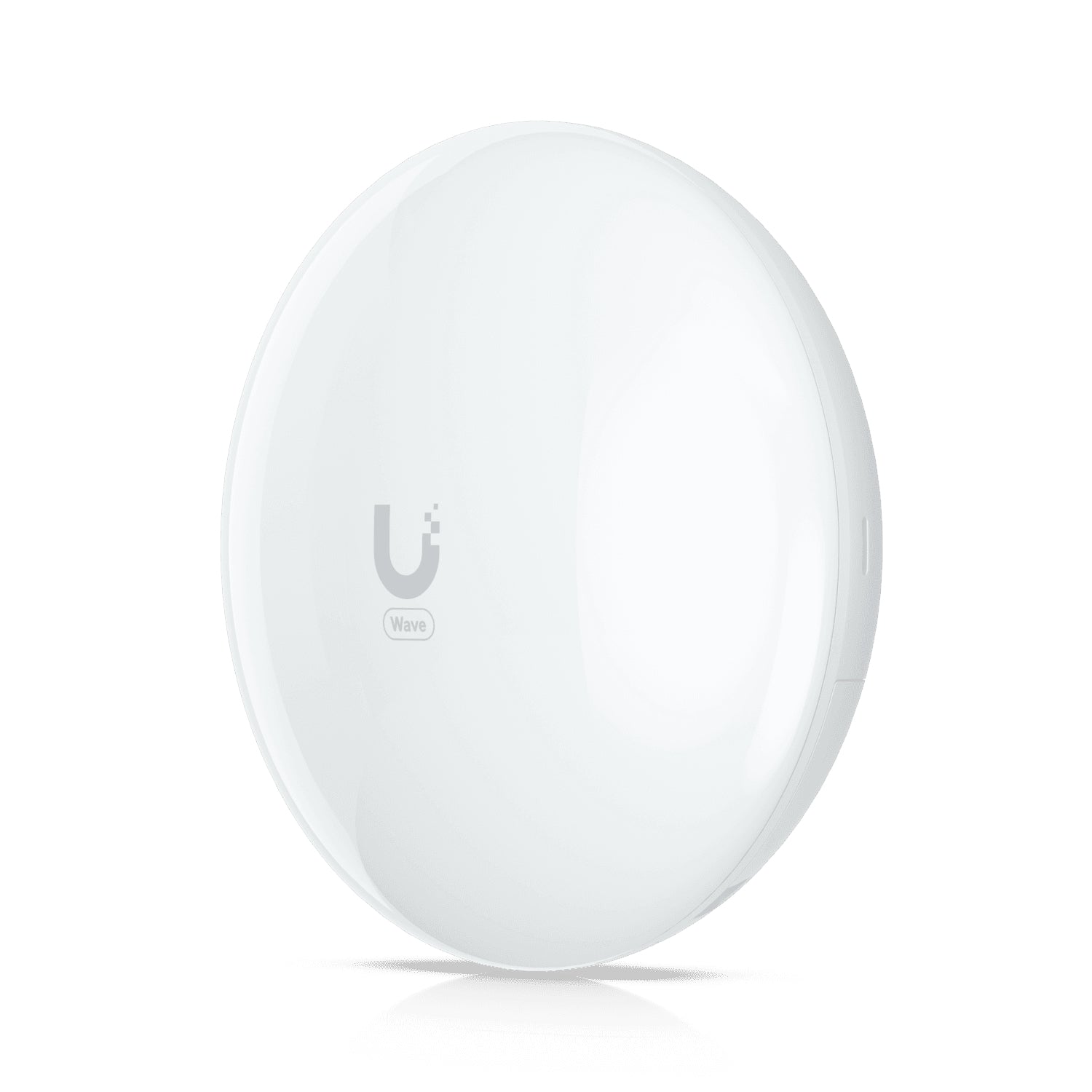

The UISP Wave Pico is a compact 60 GHz point-to-multipoint (PtMP) station built on Ubiquiti's Wave Technology, designed for high-capacity wireless links of up to 1.3 km when paired with a Wave AP. It delivers up to 2 Gbps of total throughput through a 27.7 dBi 60 GHz antenna, and also operates as a point-to-point link with a range of up to 1.5 km. A 5 GHz Wi-Fi 6 backup radio keeps the connection available when the 60 GHz path is disrupted.
The Wave Pico is powered over passive PoE and ships with a 48V 0.5A gigabit PoE adapter. Its UV-stabilised polycarbonate enclosure is rated IPX6 and operates from -40 to 60 C, with a pole mount for straightforward installation. It is managed through UISP, with Wave AI, antenna alignment, site survey, speed test and traceroute tools, and it is NDAA compliant.
Features
Features
- Powered by Wave Technology
- 60 GHz PtMP station with 5 GHz Wi-Fi 6 backup link
- Operates in PtP and PtMP Station modes
- Managed through UISP, with Wave AI, antenna alignment, site survey, speed test and traceroute tools
- Traffic shaping with burst support, SNMP, ping watchdog and NTP client
- Bridge and Router modes
- UV-stabilised polycarbonate enclosure with pole mount
Warranty
Warranty
Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.
Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- 60 GHz PtMP station / PtP link, 57-71 GHz operating frequency
- Up to 2 Gbps total throughput
- PtMP range up to 1.3 km with Wave AP, up to 0.9 km with Wave AP Micro or Wave AP Gen2; PtP up to 1.5 km
- 27.7 dBi 60 GHz antenna, vertically-linear polarisation, 6 degree azimuth and elevation beamwidth
- 60 GHz channel bandwidth: 2160, 1080, 540 MHz; modulation: 16QAM, QPSK
- 5 GHz 802.11ax (Wi-Fi 6) backup radio, 9 dBi antenna, 20/40/80 MHz channels
- (1) GbE RJ45 port
- Passive PoE, 44-54V DC or 22-27V DC; 48V 0.5A gigabit PoE adapter included
- Maximum power consumption 10 W
- Dual-core ARM Cortex-A53 1 GHz processor, 512 MB memory
- IPX6 weatherproofing, -40 to 60 C operating temperature
- Dimensions: 152.1 x 55.8 mm diameter, weight 347 g without mount
- Pole mount for 20 to 53.1 mm diameter poles
- WPA2-PSK (AES) encryption
- NDAA compliant; FCC, IC, CE certified
FAQs
Q: What range does the UISP Wave Pico achieve?
A: In PtMP mode it reaches up to 1.3 km when connected to a Wave AP, or up to 0.9 km with a Wave AP Micro or Wave AP Gen2. In PtP mode it reaches up to 1.5 km.
Q: Is a PoE adapter included?
A: Yes. A 48V 0.5A gigabit PoE adapter is included. The unit uses passive PoE and accepts 44-54V DC or 22-27V DC.
Q: What does the 5 GHz backup radio do?
A: It is an 802.11ax (Wi-Fi 6) radio that provides a backup link, helping maintain connectivity if the 60 GHz path is affected.
Q: How is the Wave Pico managed?
A: It is managed through UISP. Management and diagnostic tools include Wave AI, antenna alignment, site survey, speed test and traceroute. UISP web 2.4.61 or later is required.
Q: Is it suitable for outdoor installation?
A: Yes. It has an IPX6-rated UV-stabilised polycarbonate enclosure, operates from -40 to 60 C and mounts on poles with a diameter of 20 to 53.1 mm.
Q: What operating modes does it support?
A: It supports PtP and PtMP Station modes, with Bridge and Router operation available.
