Teltonika PR2VM20M | SMA Extension Cable, 2m, SMA Female to SMA Male, 50 Ohm
Teltonika PR2VM20M | SMA Extension Cable, 2m, SMA Female to SMA Male, 50 Ohm
Authorised Teltonika Partner
SKU:PR2VM20M
In stock: 30
Couldn't load pickup availability
Description
Description

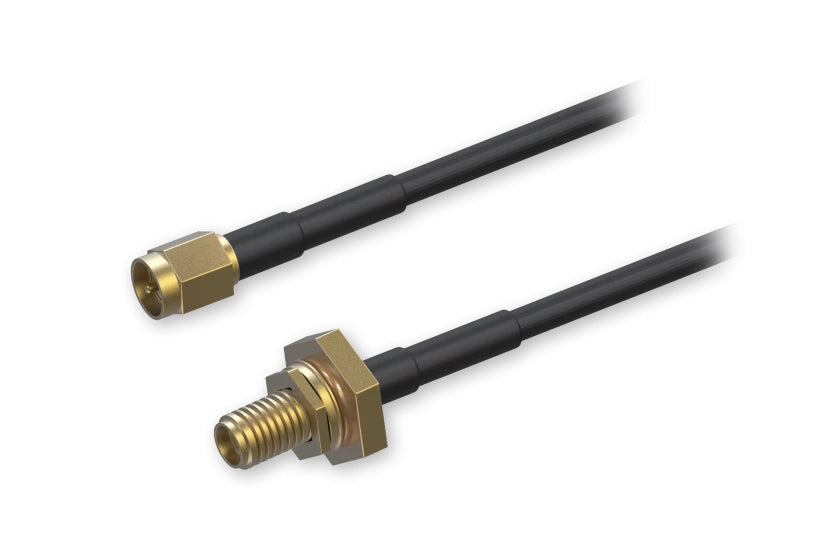

The PR2VM20M is a 2 m SMA extension cable with an SMA female connector at one end and an SMA male connector at the other. It extends the antenna connection on most Teltonika routers and gateways, letting you mount the antenna away from the device for better signal placement. Supporting frequencies from 0 to 6000 MHz at 50 Ohm impedance, it suits cellular, Wi-Fi and other wireless deployments.
Built with a low VSWR of 1.35 maximum and cable attenuation of 3.5 dB at 2700 MHz, the cable keeps signal loss controlled over its 2 m run. It operates across a wide temperature range of -55 C to +155 C and is rated for at least 500 mating cycles, making it practical for both fixed installations and field service work.
Features
Features
- Extends the antenna reach of Teltonika routers and gateways
- Wide 0-6000 MHz frequency compatibility
- Wide operating temperature range of -55 C to +155 C
- Rated for at least 500 mating cycles
- 50 Ohm impedance with low VSWR
Warranty
Warranty
Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Connector 1: SMA (female)
- Connector 2: SMA (male)
- Cable length: 2000 mm (2 m)
- Frequency range: 0 - 6000 MHz
- Impedance: 50 Ohm
- VSWR: 1.35 max
- Cable attenuation: 3.5 dB @ 2700 MHz
- Operating temperature: -55 C to +155 C
- Working voltage: 335 Vmax
- Withstand voltage: 1000 Vrms
- Durability: 500 cycles or more
- Weight: 50 g
FAQs
Q: What connectors does the PR2VM20M have?
A: It has an SMA female connector at one end and an SMA male connector at the other, so it sits between a device antenna port and an SMA antenna.
Q: How long is this extension cable?
A: The cable length is 2000 mm (2 m).
Q: What frequency range does it support?
A: It supports frequencies from 0 to 6000 MHz, covering common cellular and Wi-Fi bands.
Q: What is the impedance of this cable?
A: The cable has a 50 Ohm impedance with a maximum VSWR of 1.35.
Q: Will it work with Teltonika routers and gateways?
A: Yes, it is designed to extend the antenna connection on most Teltonika routers and gateways that use SMA antenna connectors.
Q: What temperature range can the cable handle?
A: It operates from -55 C to +155 C, suitable for demanding indoor and outdoor installations.
