Ubiquiti USL-SMOKE-US | UniFi Protect Smoke and CO Alarm, US 915 MHz SuperLink

Authorised Ubiquiti Partner

SKU:USL-SMOKE-US

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

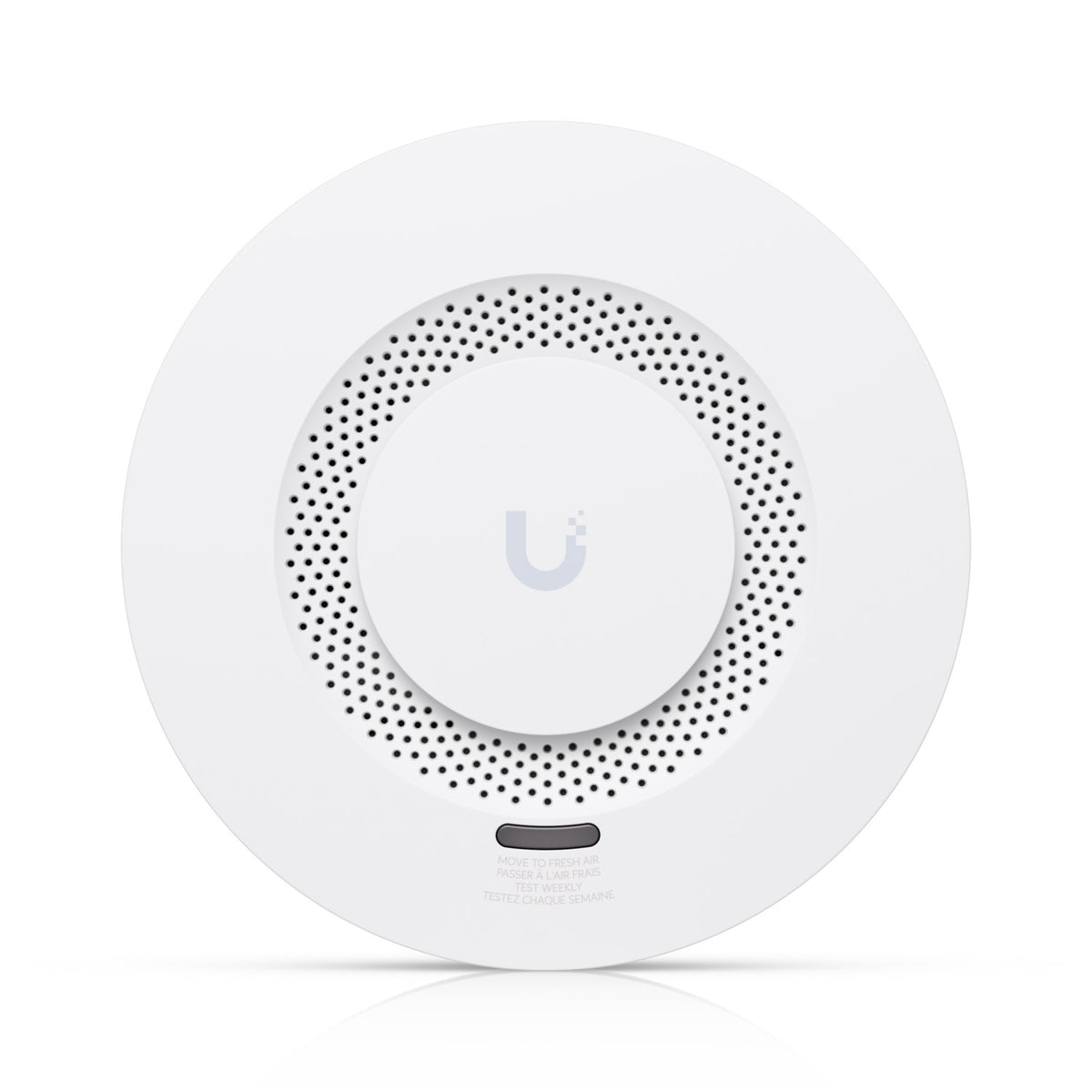

The UniFi Protect SuperLink Smoke and CO Alarm is a battery-powered combination smoke and carbon monoxide detector that connects to UniFi Protect over Ubiquiti's proprietary SuperLink wireless protocol. This US model operates on 915.6-927.6 MHz, delivers up to 2 km of wireless range and sounds an 85 dB siren at 3 m, making it well suited to commercial, hospitality and multi-tenant sites already managed through UniFi.

The unit is rated for up to 10 years of battery life, mounts to a wall or ceiling, and includes a tamper switch and deactivation switch. It is certified to UL 217, UL 2034, EN 14604 and EN 50291-1, is NDAA compliant, and is managed through the UniFi Protect web interface and the iOS and Android apps.

Features

- Combined smoke and carbon monoxide detection in a single battery-powered unit
- SuperLink long-range wireless connectivity for integration with UniFi Protect
- Up to 10 years of battery life
- Built-in 85 dB siren
- Wall or ceiling mounting
- Tamper switch and deactivation switch
- Managed through UniFi Protect web and mobile apps (iOS and Android)
- NDAA compliant

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Combined smoke and CO sensors
- SuperLink wireless connectivity (proprietary), up to 2 km range
- Operating frequency (US model): 915.6-927.6 MHz
- Max. TX power (SuperLink): 14 dBm
- Alarm sound level: 85 dB at 3 m
- Battery: replaceable CR123A lithium (SuperLink), non-replaceable L91 lithium (smoke and CO)
- Battery life: up to 10 years
- Max. power consumption: 510 mW
- Wall and ceiling mount
- Dimensions: 120 x 48.5 mm (diameter x height)
- Weight: 311 g
- Enclosure material: Polycarbonate
- Buttons: function, factory reset, test/silence, tamper switch, deactivation switch
- Operating temperature: 0 to 40 C
- Operating humidity: 10 to 90% non-condensing
- Certifications: UL 217, UL 2034, EN 14604, EN 50291-1, CAN/ULC 531, CSA 6.19, CE, FCC, IC
- NDAA compliant

FAQs

Q: What does this alarm connect to?
A: It connects to UniFi Protect over Ubiquiti's proprietary SuperLink wireless protocol and is managed through the UniFi Protect web interface and the iOS and Android apps.

Q: Which frequency does the US model use?
A: The -US model operates on 915.6-927.6 MHz SuperLink with a maximum TX power of 14 dBm and a range of up to 2 km.

Q: How is the alarm powered?
A: It is battery powered. A replaceable CR123A lithium battery supports the SuperLink connection, and non-replaceable L91 lithium batteries power the smoke and CO alarm, with up to 10 years of battery life.

Q: How loud is the siren?
A: The built-in siren produces 85 dB at 3 m.

Q: Can it be mounted on a ceiling?
A: Yes. It supports both wall and ceiling mounting.

Q: What safety certifications does it hold?
A: It is certified to UL 217, UL 2034, EN 14604 and EN 50291-1, along with CAN/ULC 531, CSA 6.19, CE, FCC and IC, and is NDAA compliant.
