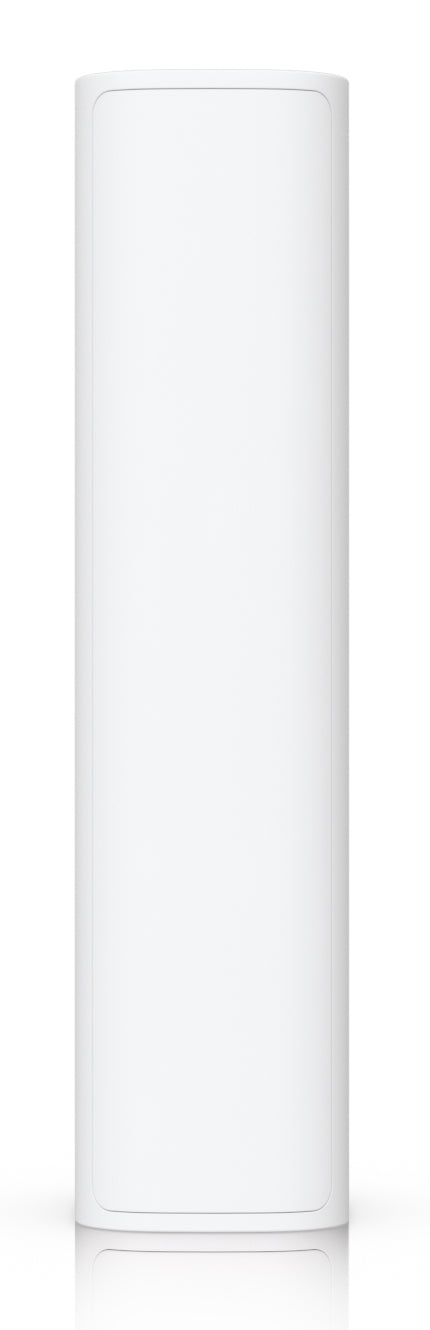

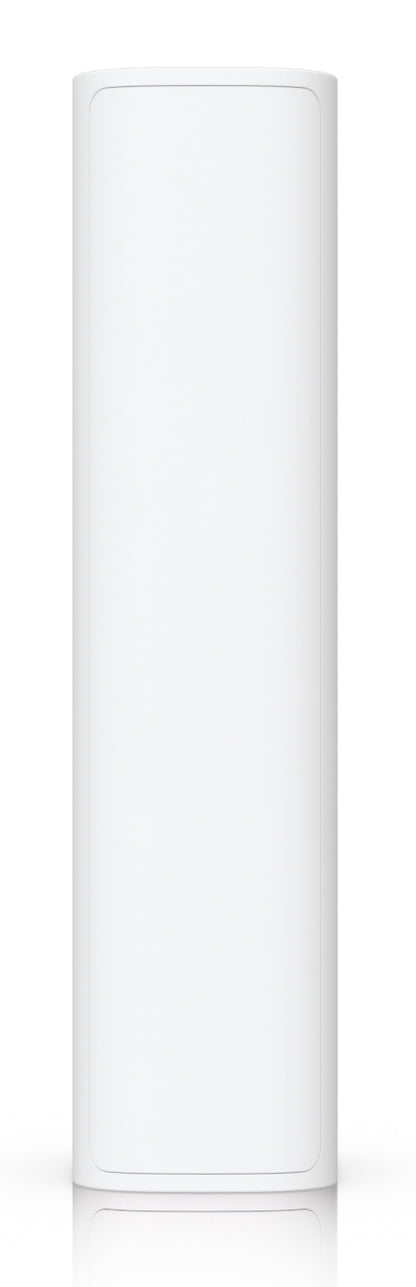

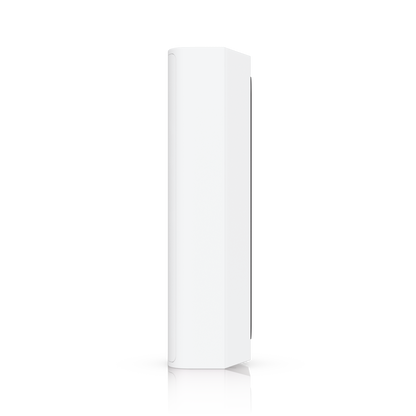

Ubiquiti USL-MOTION | UniFi SuperLink Wireless Motion Sensor, Dual PIR, 6-Year Battery

Ubiquiti USL-MOTION | UniFi SuperLink Wireless Motion Sensor, Dual PIR, 6-Year Battery

USL-MOTION

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

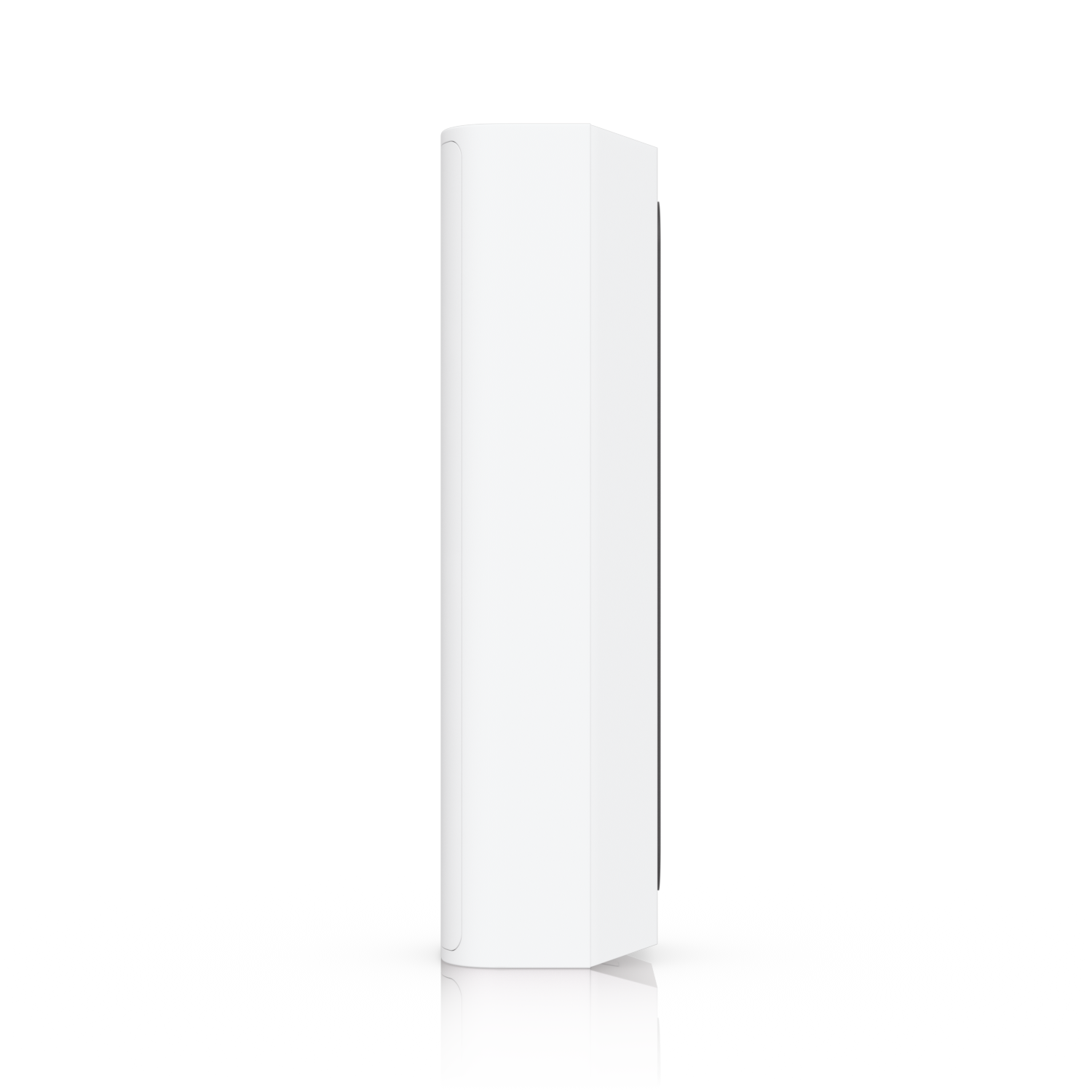

The Ubiquiti UniFi Motion Sensor (USL-MOTION) is a battery-powered SuperLink wireless motion sensor designed for seamless integration within the UniFi Protect ecosystem. Featuring dual PIR sensors — horizontal detection up to 1.5 m and vertical detection up to 6 m with built-in pet immunity — it provides reliable, low-false-alarm coverage for homes, offices, and commercial properties. With an impressive SuperLink wireless range of up to 2 km line-of-sight and up to 6 years of battery life on a single CR123A lithium battery, it delivers long-term, cable-free security monitoring without ongoing maintenance overhead.

The USL-MOTION supports both wall and corner mounting via adhesive or screw fasteners, making it easy to deploy in virtually any indoor location. Motion events trigger recordings, alerts, and automation natively through the UniFi Protect app on web, iOS, and Android — no third-party bridge or middleware required. A tamper detection switch adds an extra layer of device security. Note: a SuperLink Gateway is required for operation. Available now at iptrading.com.au — competitive prices and local support.

Features

- Battery-powered SuperLink wireless sensor for flexible, cable-free installation
- Dual PIR sensors: horizontal (1.5 m) and vertical (6 m) motion detection zones
- Vertical PIR sensor includes built-in pet immunity to minimise false alarms
- SuperLink wireless range up to 2 km line-of-sight for large property coverage
- Up to 6 years battery life on a single CR123A lithium battery

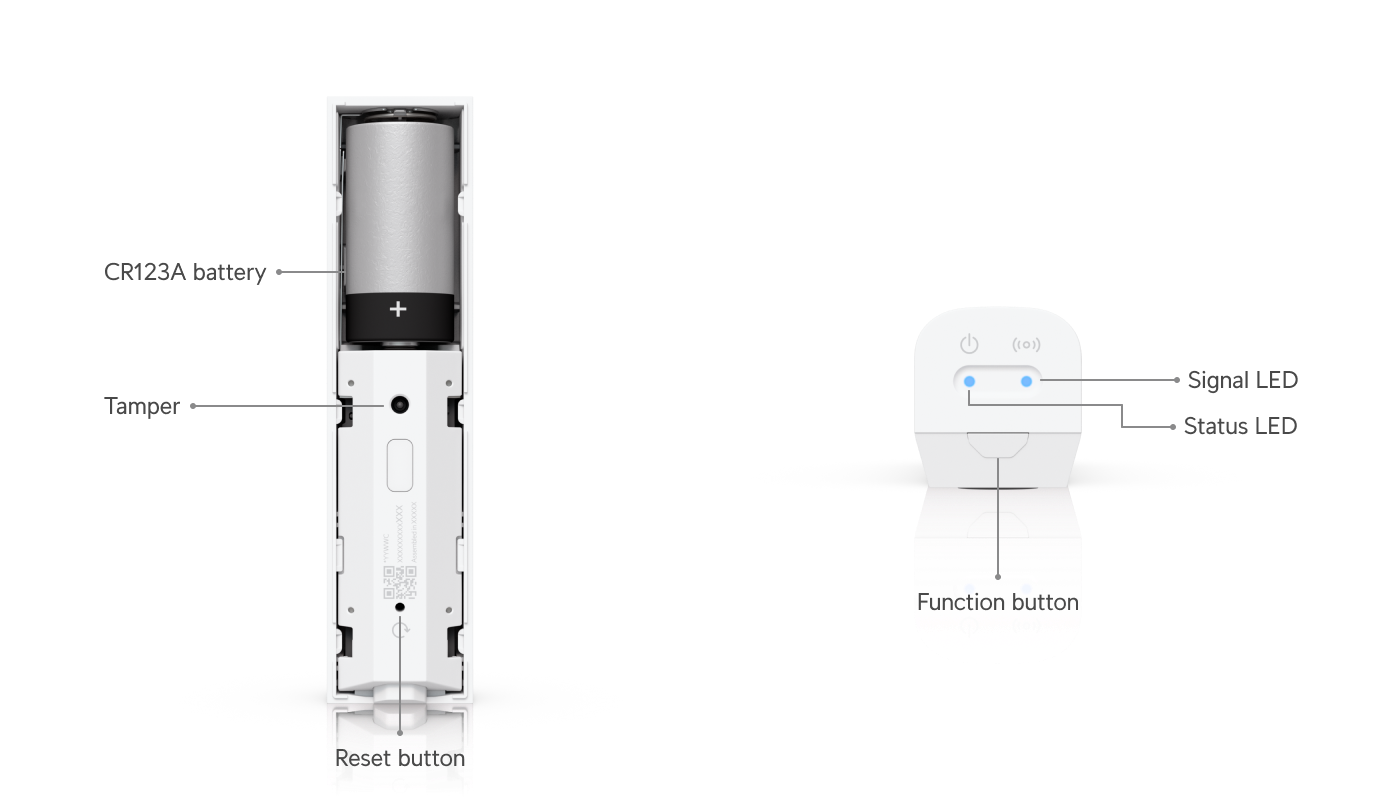

- Tamper detection switch for enhanced physical device security

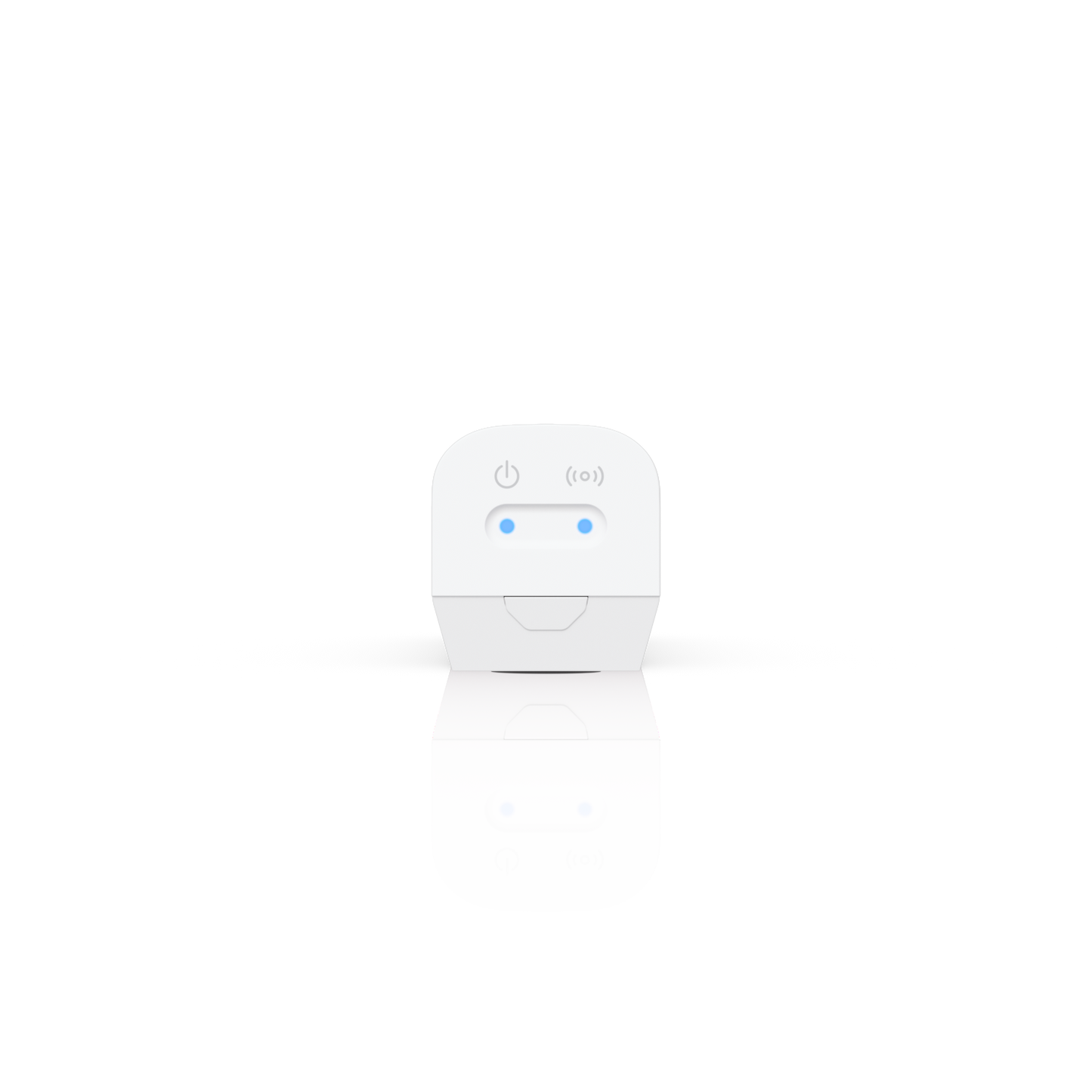

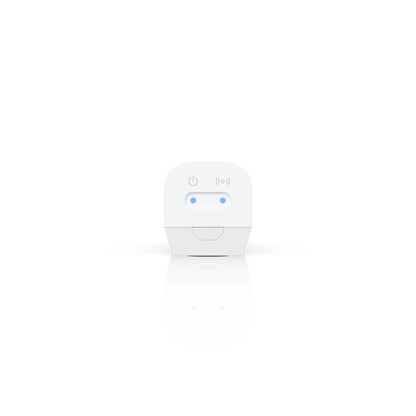

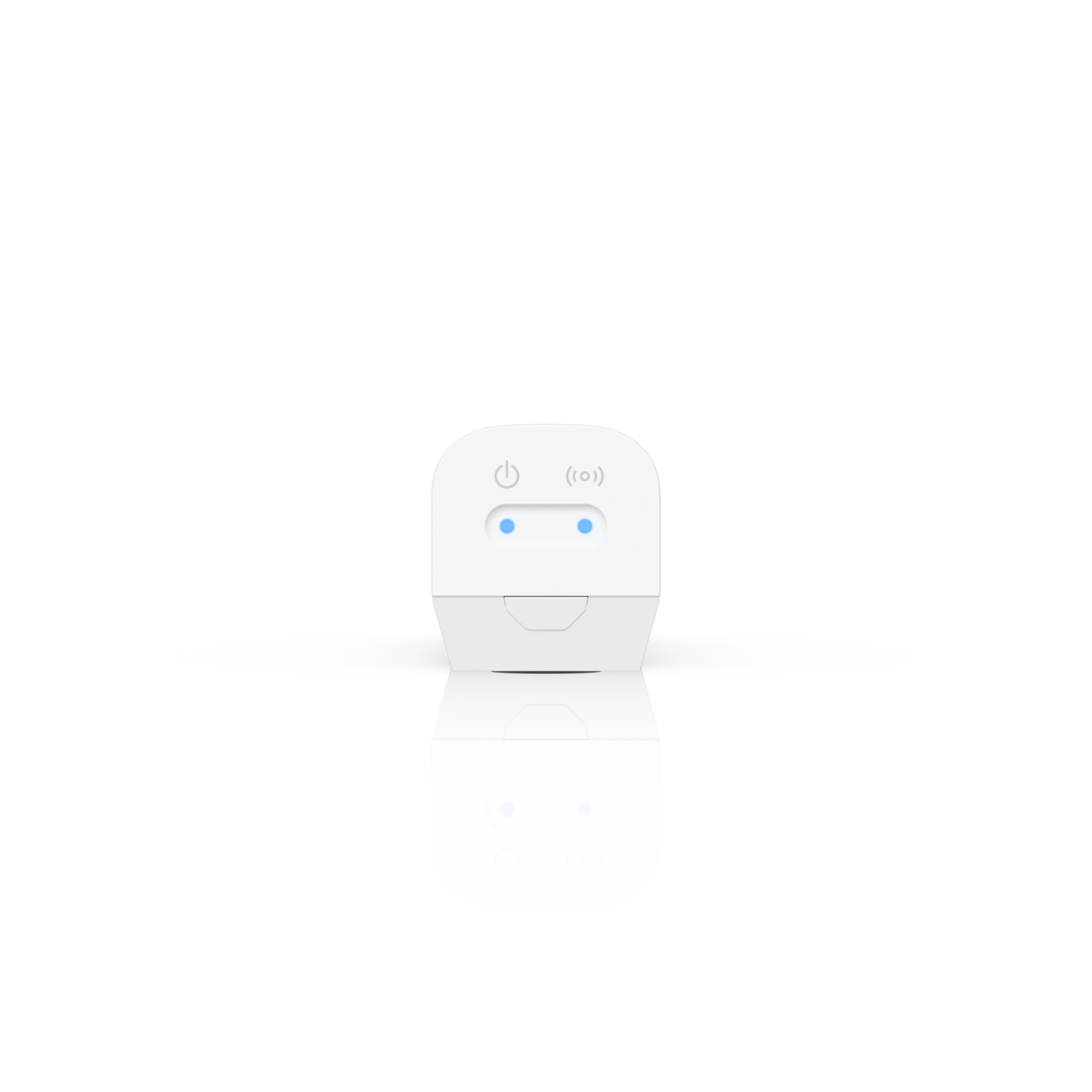

- Status and signal LEDs for quick visual diagnostics

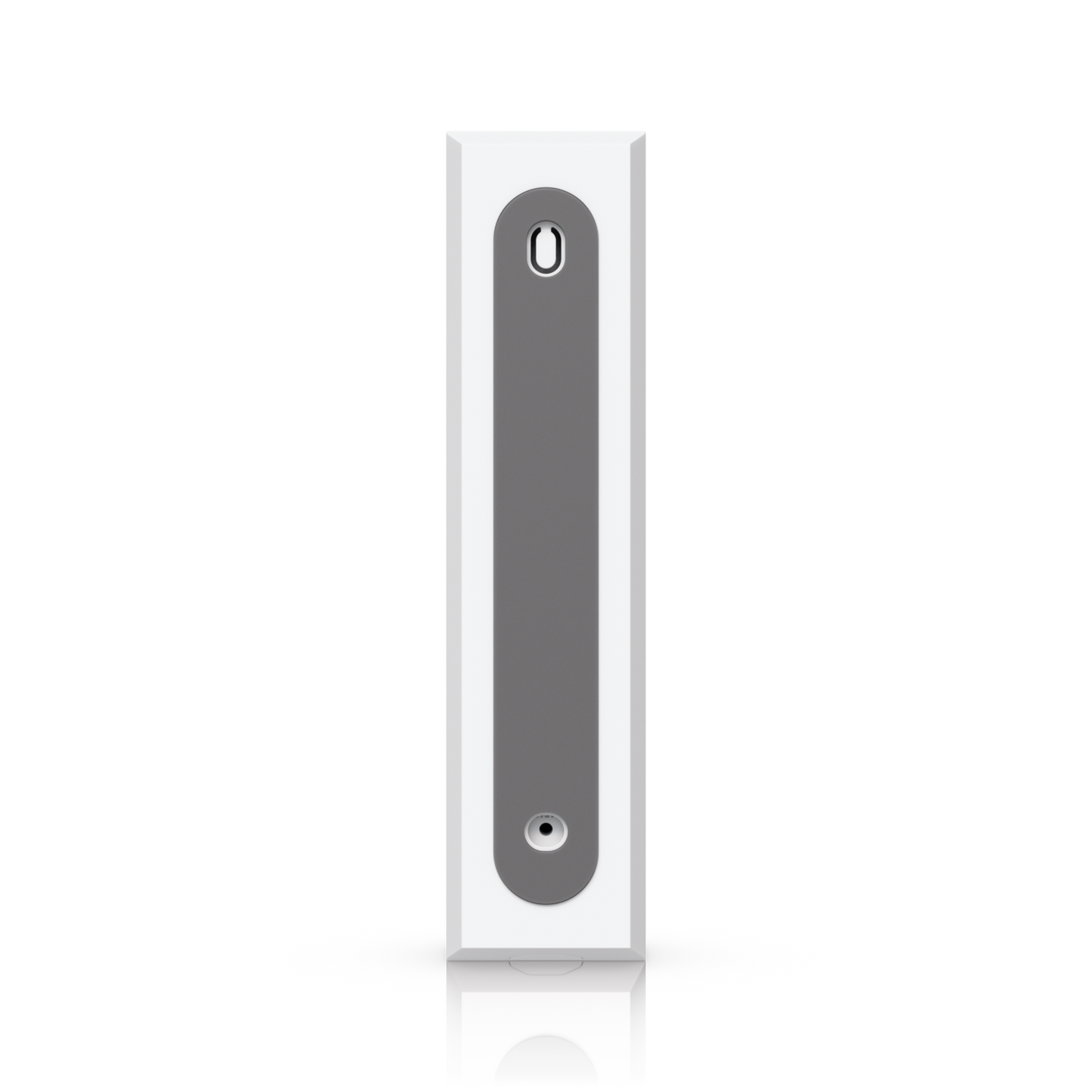

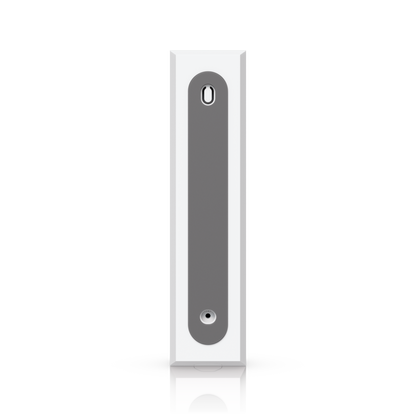

- Wall and corner mounting with adhesive or screw fasteners — no cabling required
- Native integration with UniFi Protect (web, iOS, and Android)
- Motion events trigger recordings, alerts, and automation in UniFi Protect
- No third-party bridge or middleware required within the UniFi ecosystem
- Durable polycarbonate and HDPE enclosure rated for 0–40°C operation
- NDAA-compliant with FCC, IC, and CE certifications

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Connectivity: SuperLink (Proprietary Wireless)
- Operating Frequency: US 915.6–927.6 MHz / EU 865.1–869.5 MHz
- Antenna Gain: 1 dBi (SuperLink)
- Max TX Power: 14 dBm
- Max Wireless Range: 2 km (1.2 mi) Line of Sight
- Horizontal PIR Detection Range: Up to 1.5 m (4.9 ft)
- Vertical PIR Detection Range: Up to 6 m (19.7 ft), with pet immunity
- Max Power Consumption: 22.6 mW

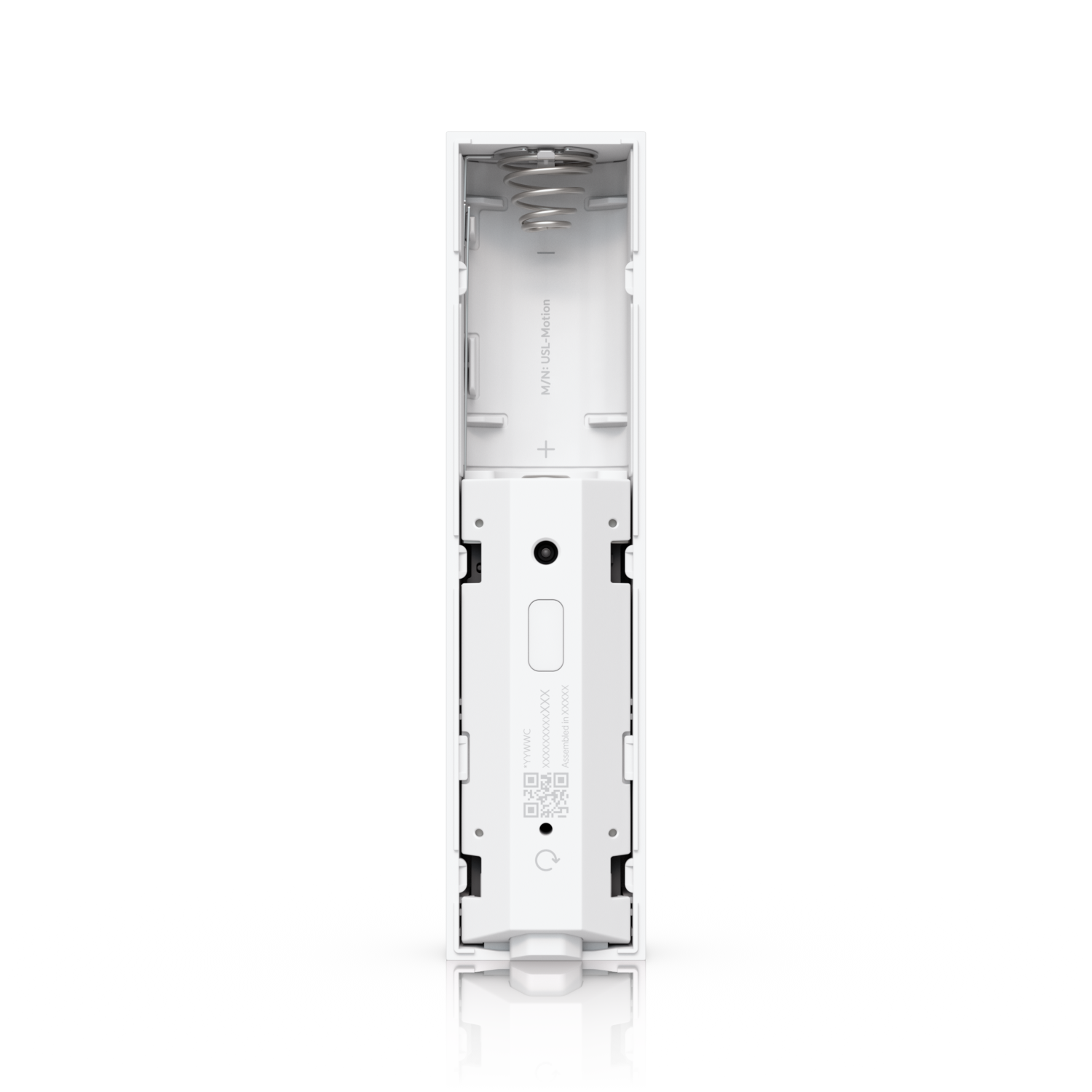

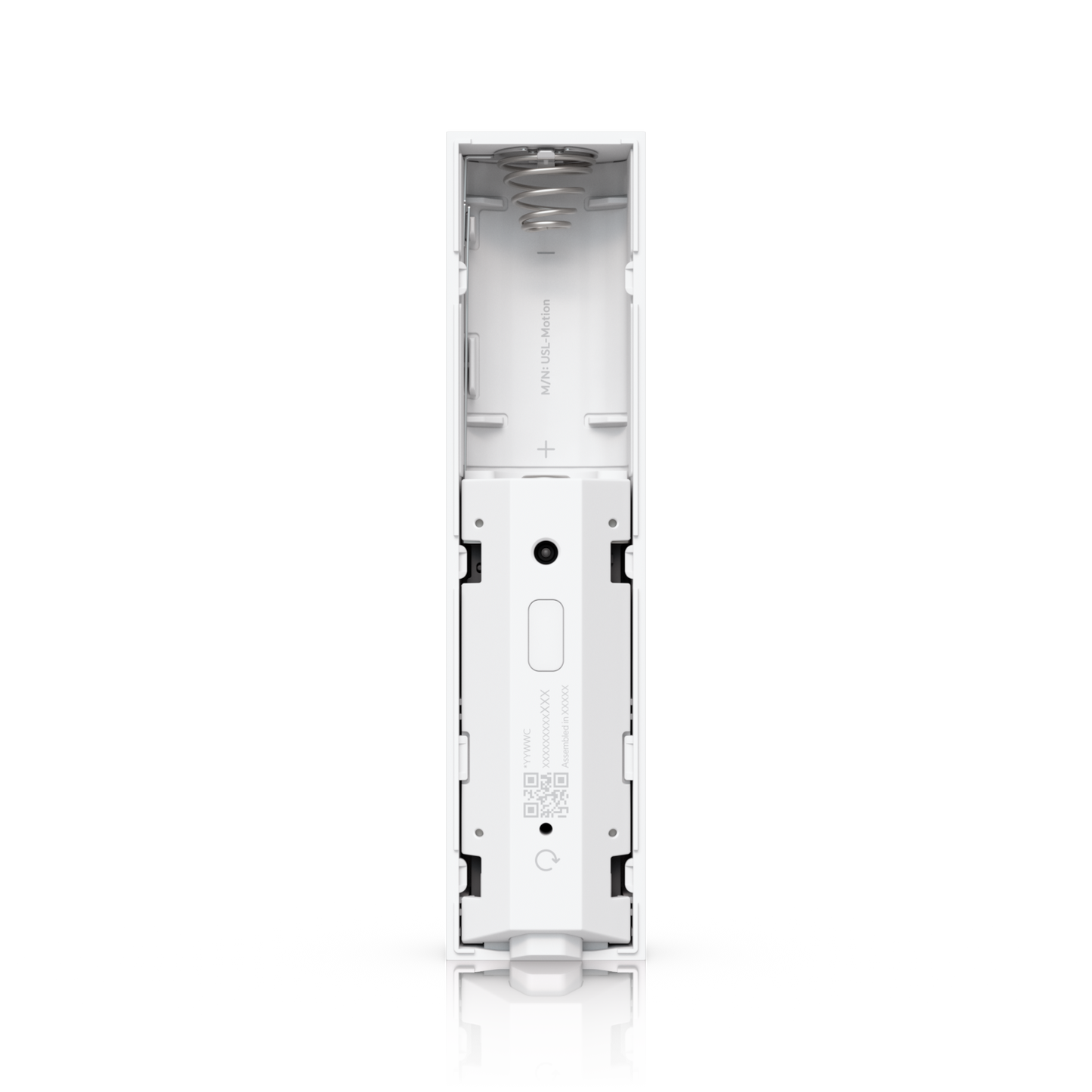

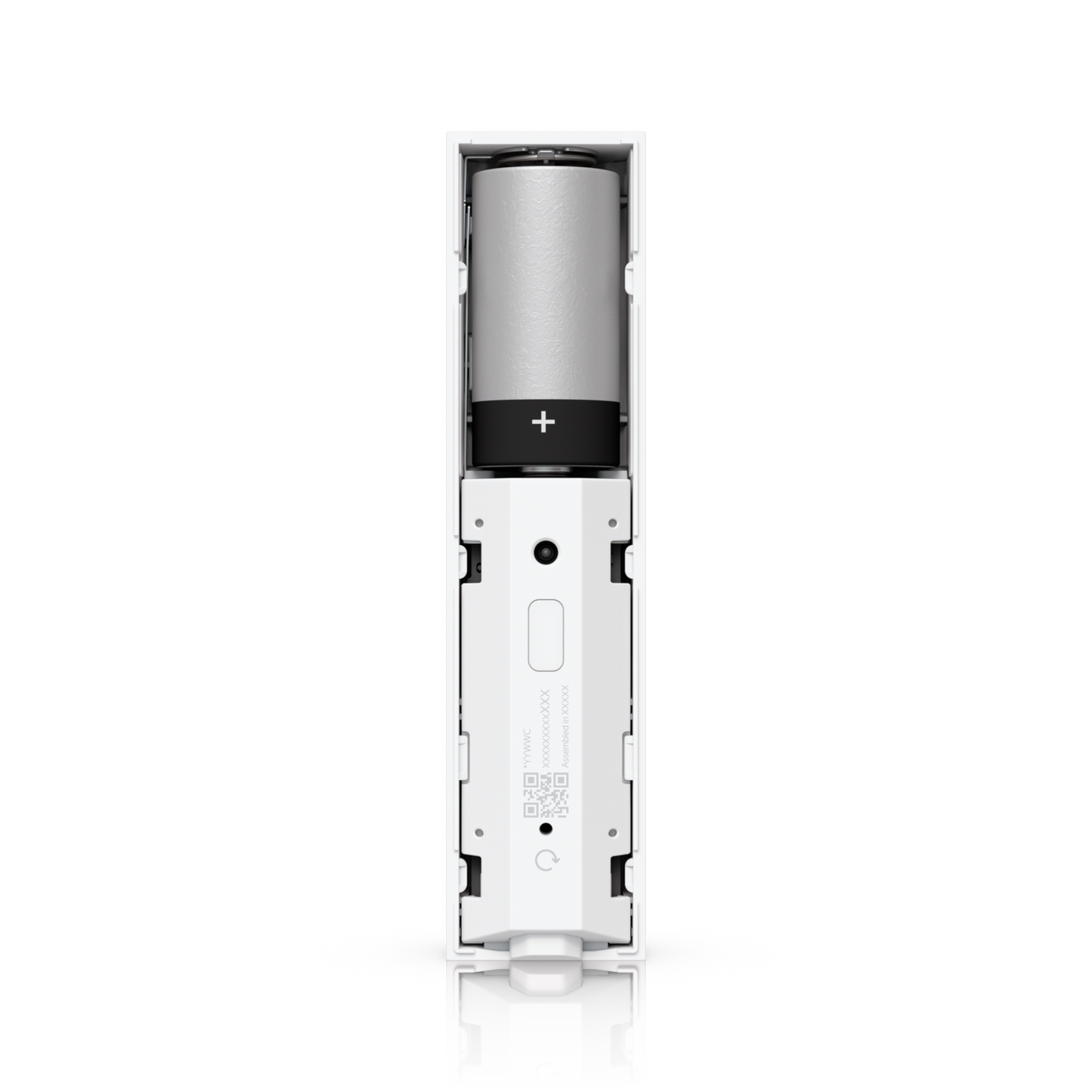

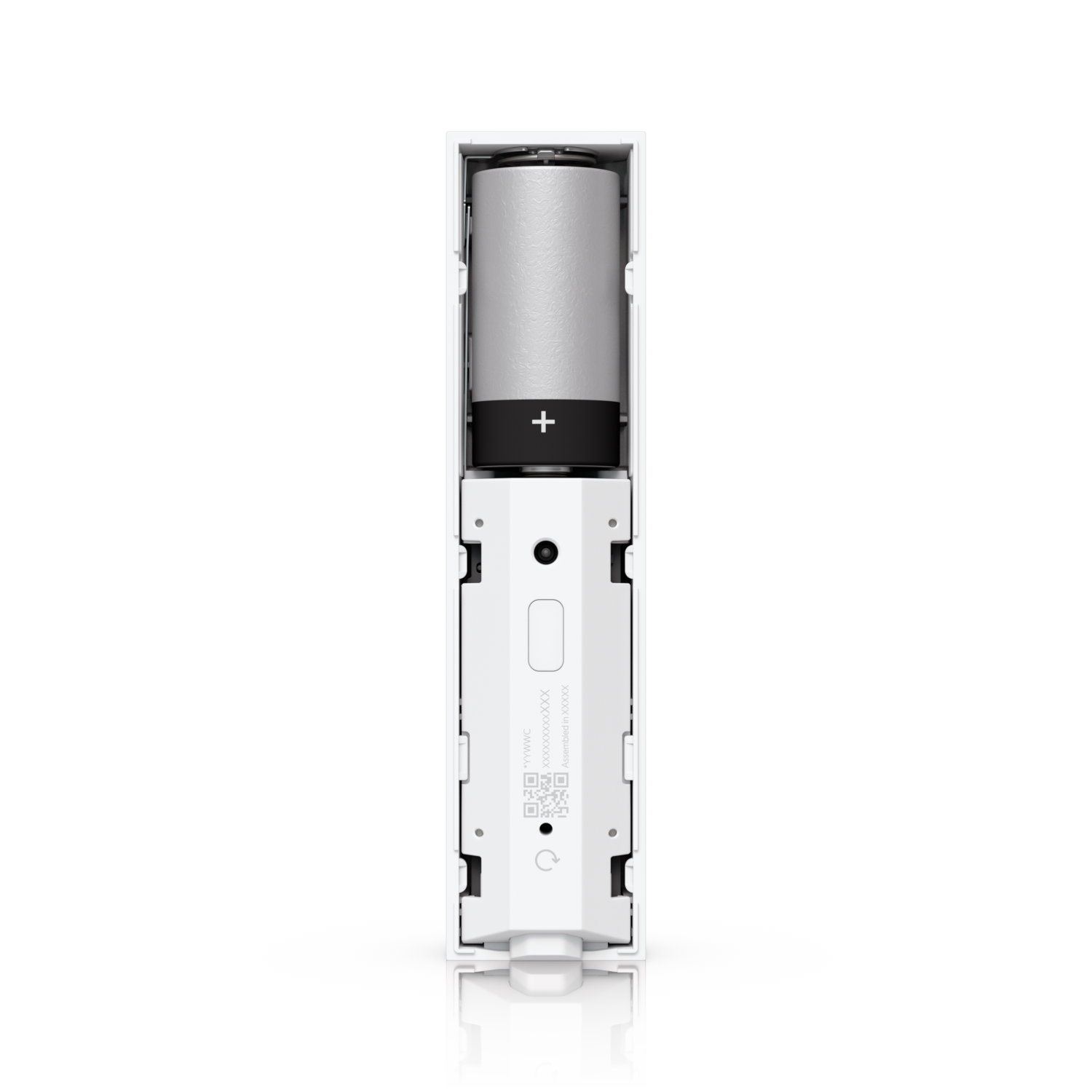

- Power Source: CR123A Lithium Battery (3V)
- Battery Life: Up to 6 years

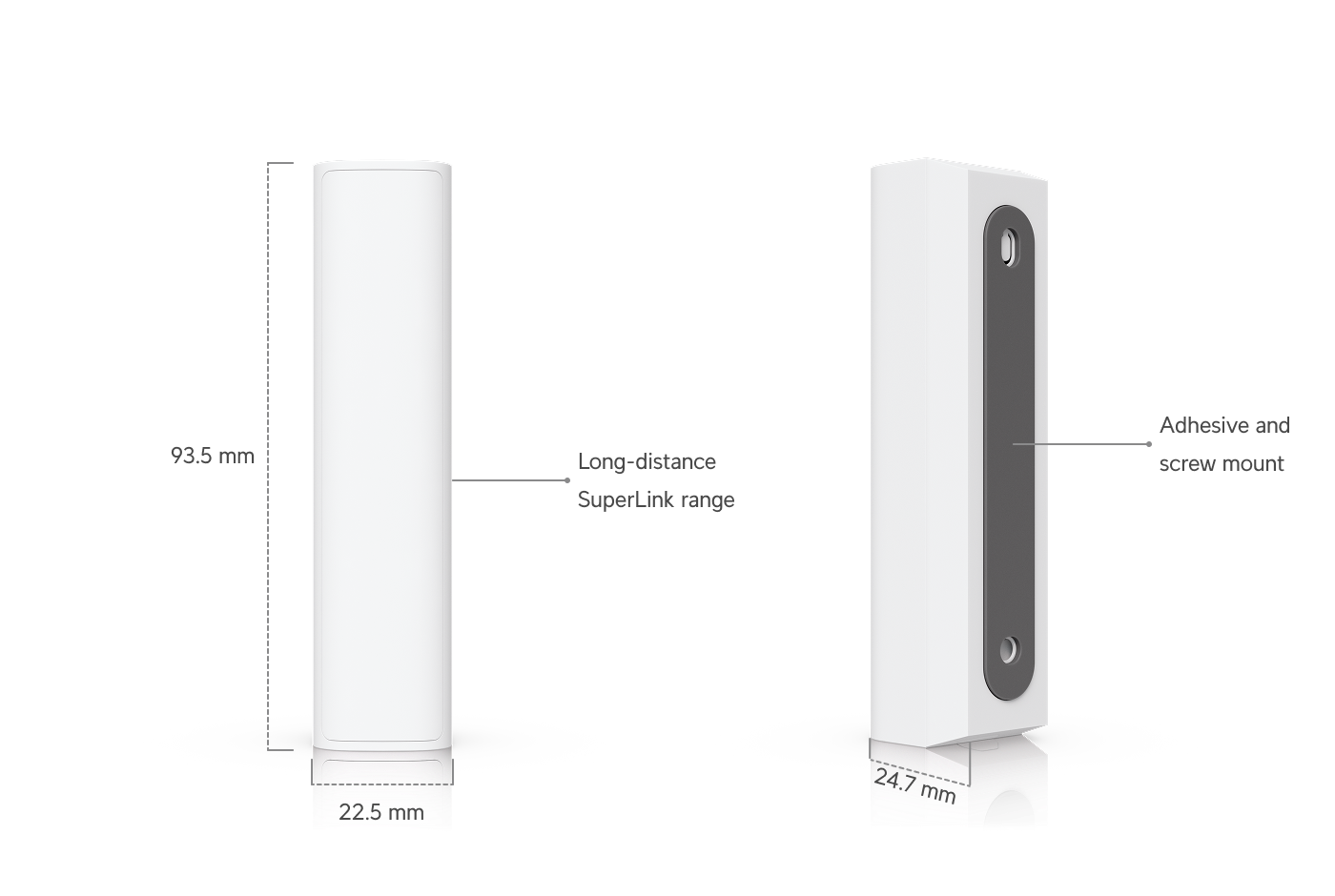

- Dimensions (Wall Mount): 93.5 x 22.5 x 24.7 mm
- Dimensions (Corner Mount): 93.5 x 22.5 x 27.9 mm
- Weight: 45 g

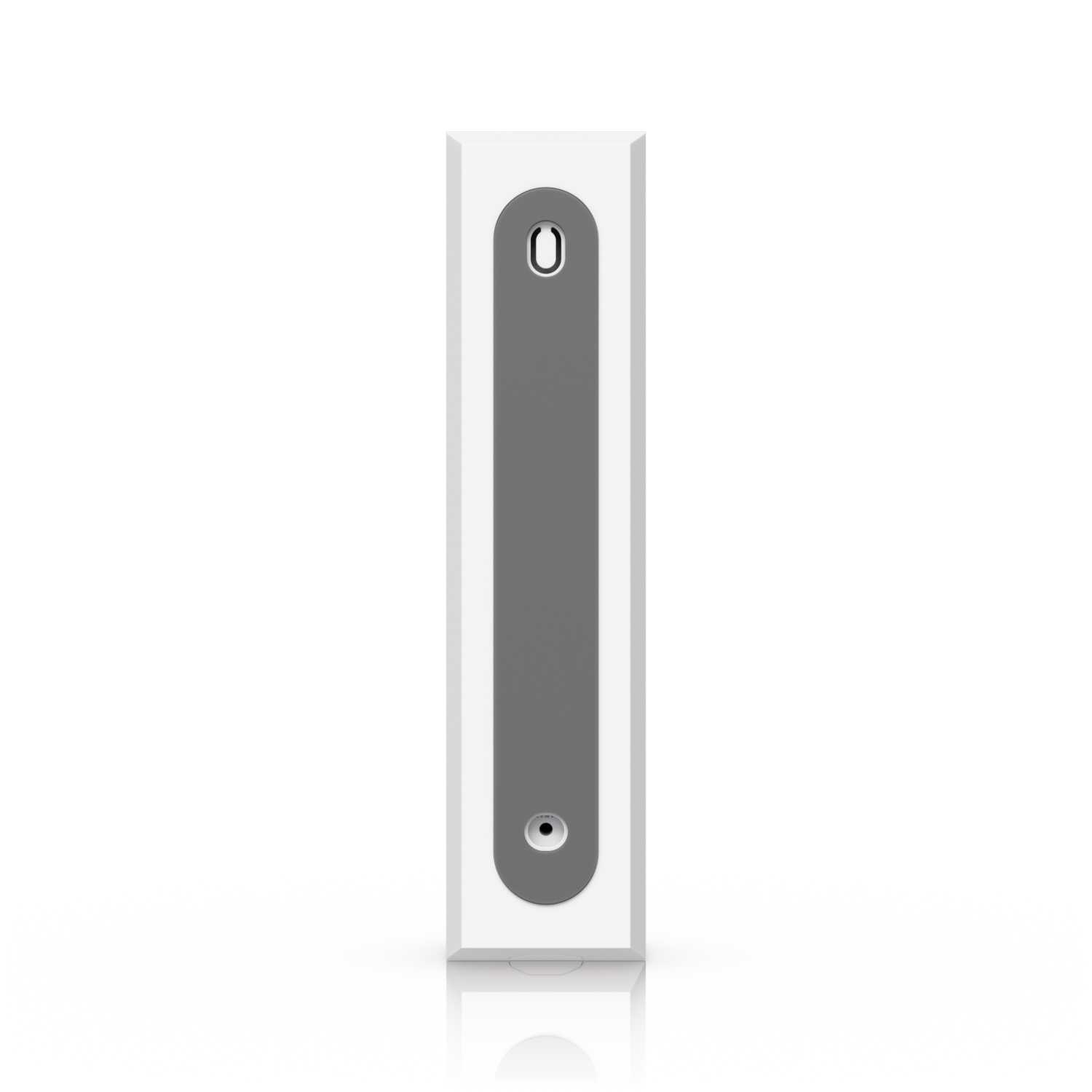

- Mounting: Adhesive and screw mount (wall and corner)
- Operating Temperature: 0–40°C
- Operating Humidity: 10–90% non-condensing
- Enclosure Material: Polycarbonate and HDPE
- Colour: White
- Certifications: NDAA, FCC, IC, CE
- UniFi Application Suite: Protect

FAQs

Q: Does the USL-MOTION require a hub or gateway to operate?

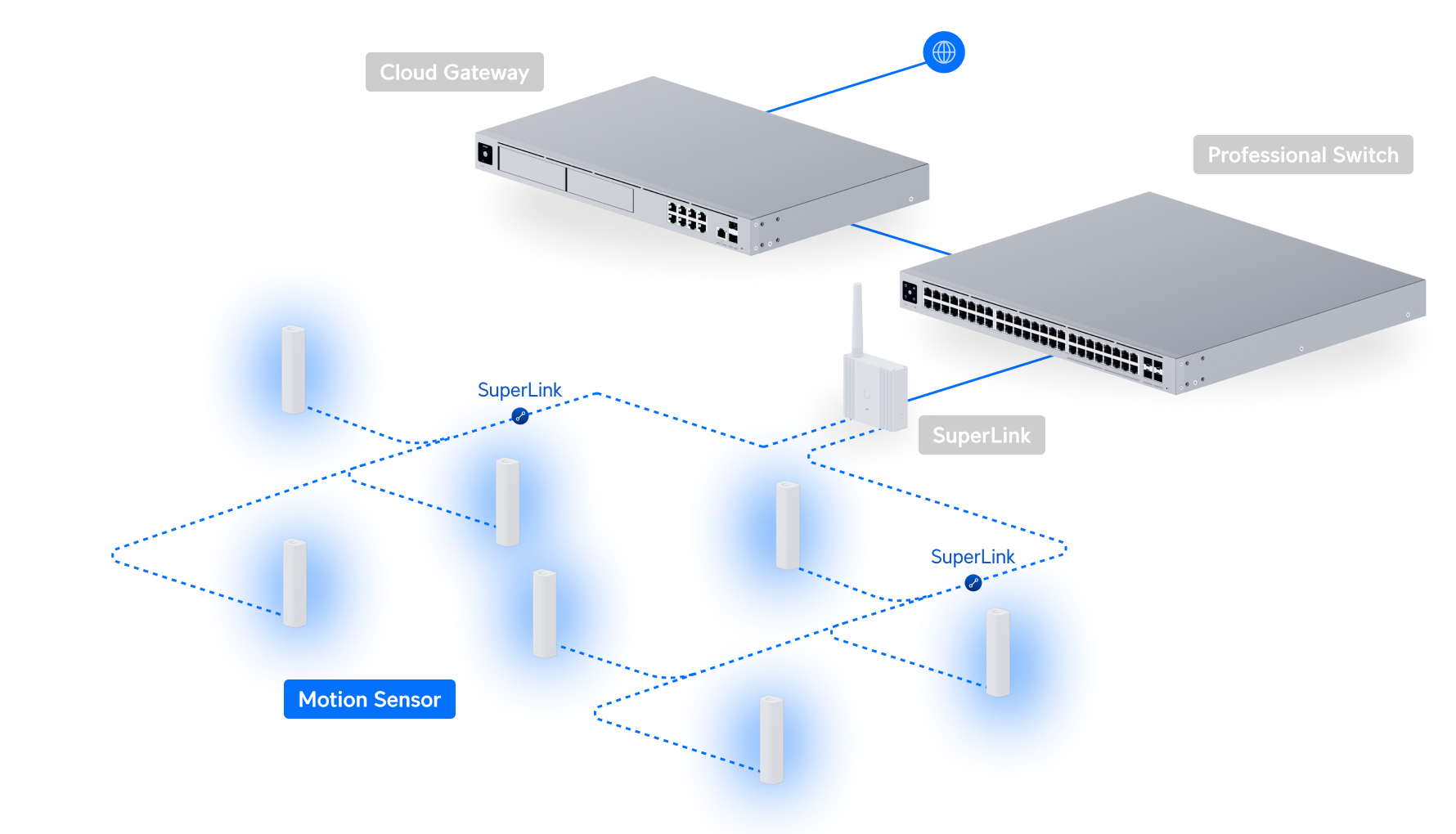

A: Yes. The USL-MOTION communicates via Ubiquiti's proprietary SuperLink wireless protocol and requires a SuperLink Gateway to connect to the UniFi Protect ecosystem. It cannot operate as a standalone device without the gateway.

Q: What is the detection range of the motion sensor?
A: The USL-MOTION features dual PIR sensors: a horizontal sensor with detection range up to 1.5 m (4.9 ft) and a vertical sensor with detection range up to 6 m (19.7 ft). The vertical sensor includes built-in pet immunity to reduce false alarms caused by small animals.

Q: How long does the battery last, and what battery does it use?
A: The USL-MOTION runs on a single CR123A lithium battery (3V) and delivers up to 6 years of battery life under normal operating conditions, making it a low-maintenance solution for long-term deployments.

Q: Can the USL-MOTION trigger camera recordings in UniFi Protect?
A: Yes. When integrated with UniFi Protect, motion events from the USL-MOTION can automatically trigger camera recordings, push alerts, and automation rules — all managed through the UniFi Protect web dashboard or iOS/Android apps with no third-party middleware required.

Q: What mounting options are available for the USL-MOTION?
A: The USL-MOTION supports both wall and corner installation, using either adhesive tape or screw fasteners. This flexibility allows it to be installed in virtually any indoor location without specialist tools or cabling.

Q: Can I purchase the Ubiquiti USL-MOTION in Australia from IP Trading?
A: Yes. The USL-MOTION is available now at iptrading.com.au. IP Trading is an Australian B2B IT hardware reseller offering competitive pricing and local support for Ubiquiti UniFi products.
