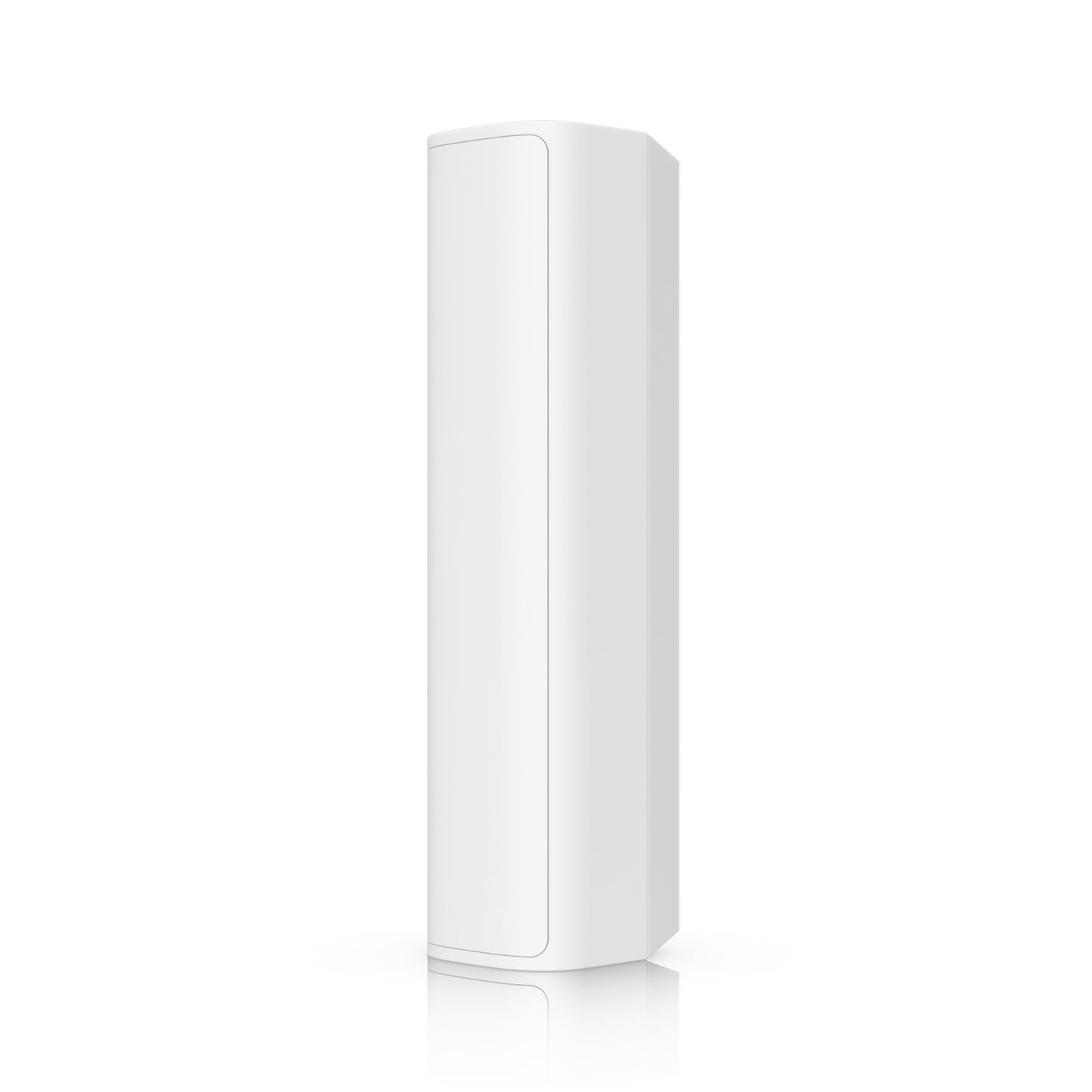

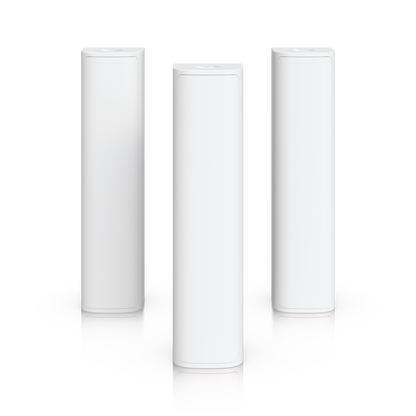

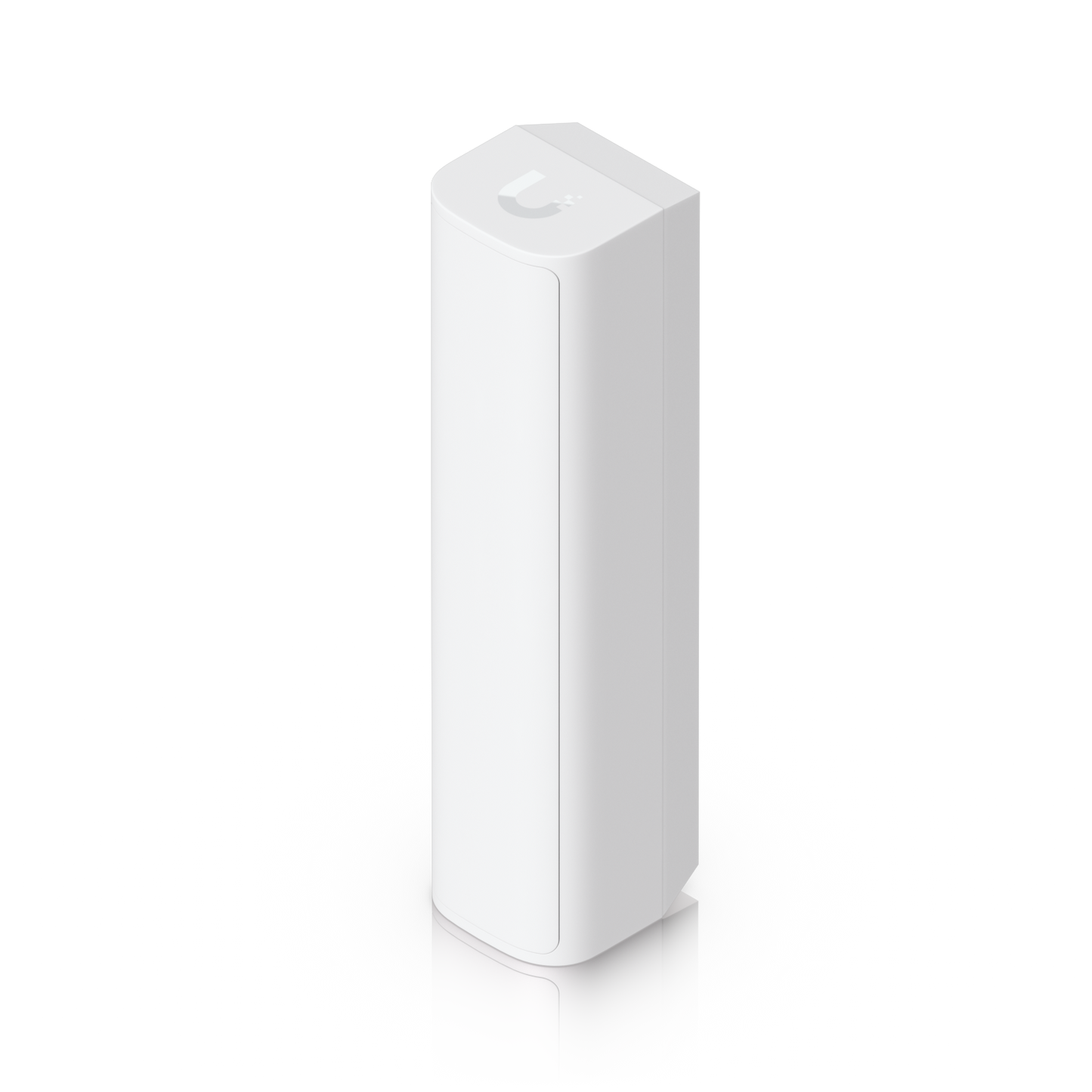

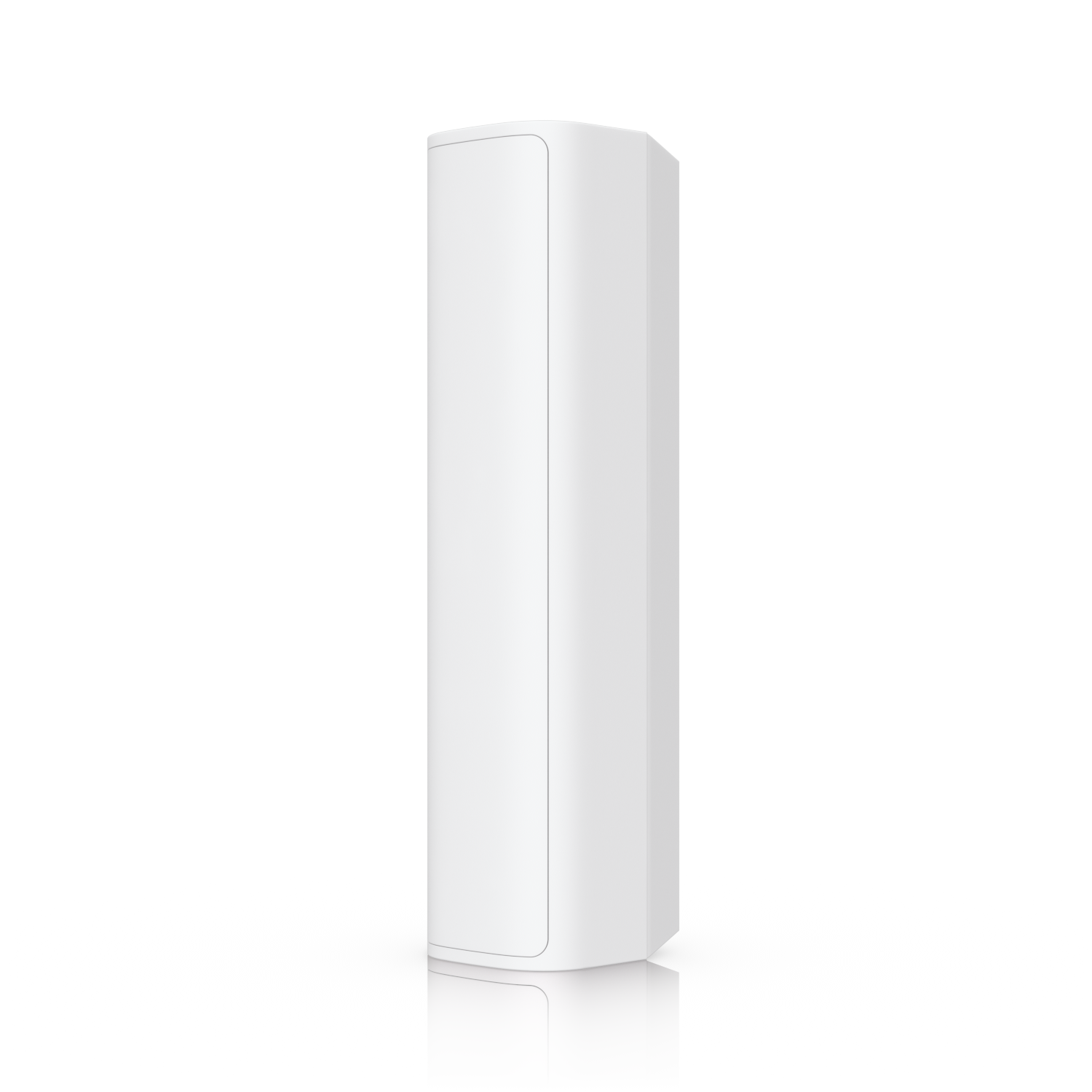

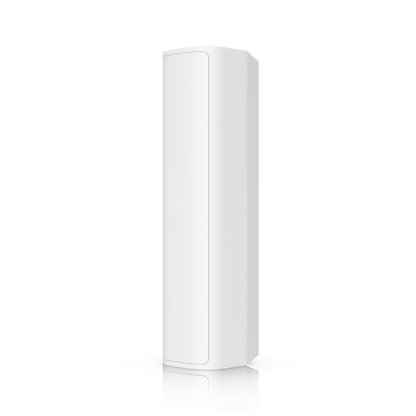

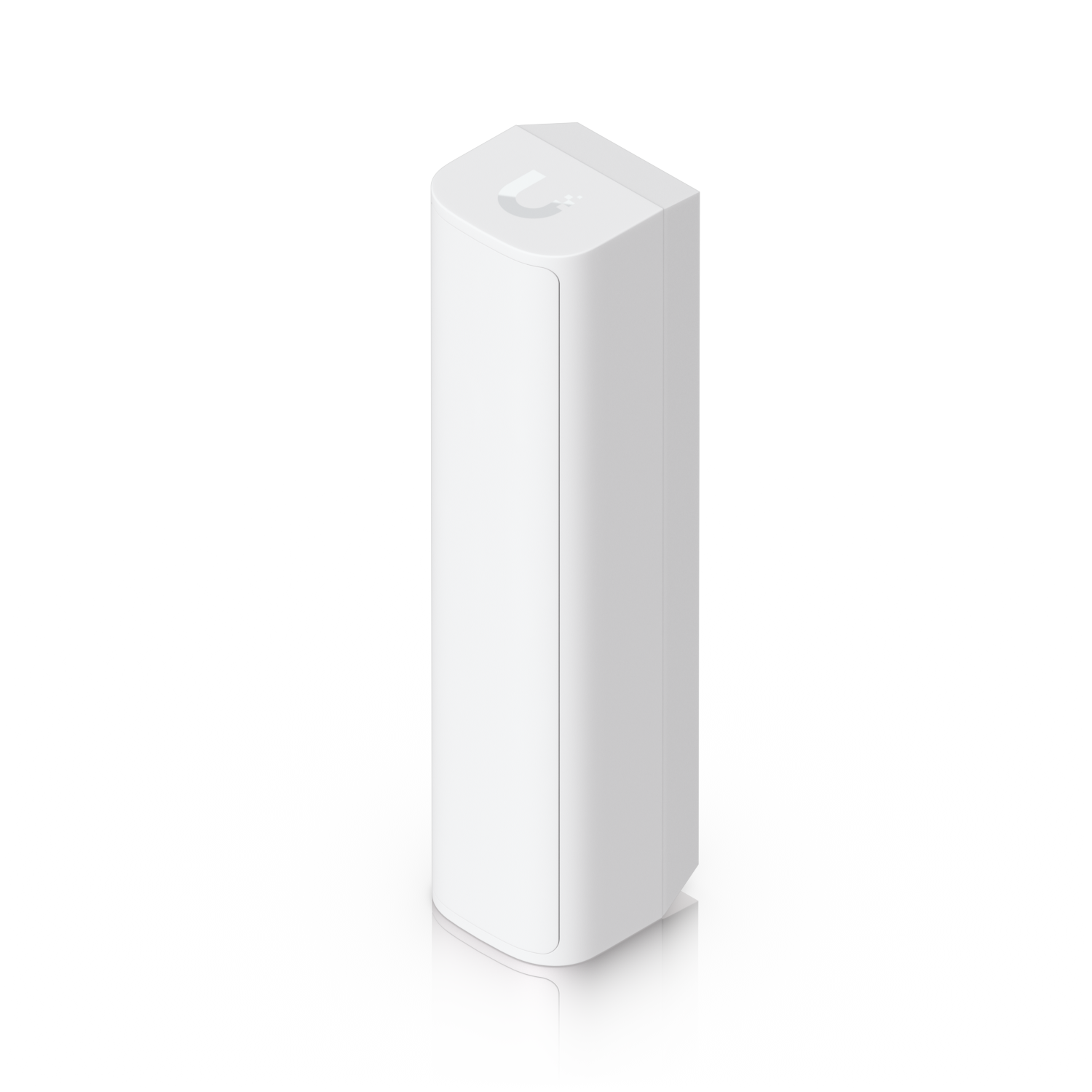

Ubiquiti USL-Motion-3 | UniFi SuperLink Motion Sensor 3-Pack, Dual PIR, 6yr Battery

Authorised Ubiquiti Partner

SKU:USL-Motion-3

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The UniFi SuperLink Motion Sensor 3-Pack delivers intelligent dual PIR motion detection for residential and commercial deployments within the UniFi ecosystem. Using Ubiquiti's proprietary SuperLink sub-GHz wireless technology, each sensor achieves a line-of-sight range of up to 2 km and offers both horizontal (1.5 m) and vertical (6 m) PIR detection zones — with pet immunity on the vertical sensor to minimise false alarms. A single CR123A lithium battery powers each unit for up to 6 years, making these sensors ideal for low-maintenance, wide-coverage security automation.

Each sensor integrates natively with UniFi Protect's Alarm Manager for rule-based automation, real-time alerts, and management across web, iOS, and Android platforms. Flexible wall and corner mounting via adhesive or screw ensures quick, tool-optional installation in virtually any location. A built-in tamper switch and status/signal LEDs round out the feature set. Requires a SuperLink Gateway. NDAA compliant.

Features

- SuperLink sub-GHz proprietary wireless delivers long-range connectivity up to 2 km LOS with low latency
- Dual PIR sensors (horizontal + vertical) provide comprehensive 360-degree motion coverage
- Pet immunity on vertical PIR sensor reduces false triggers from animals
- Up to 6 years of battery life per CR123A lithium battery — ideal for low-maintenance deployments
- Flexible adhesive or screw mounting supports wall and corner installation scenarios
- Native integration with UniFi Protect for centralised management via web, iOS, and Android
- Alarm Manager support enables rule-based automation, scheduling, and push notifications
- Built-in tamper switch detects and alerts on unauthorised physical access

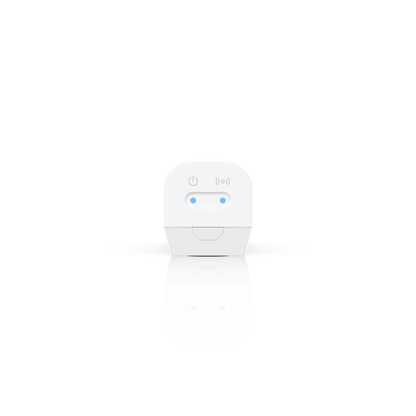

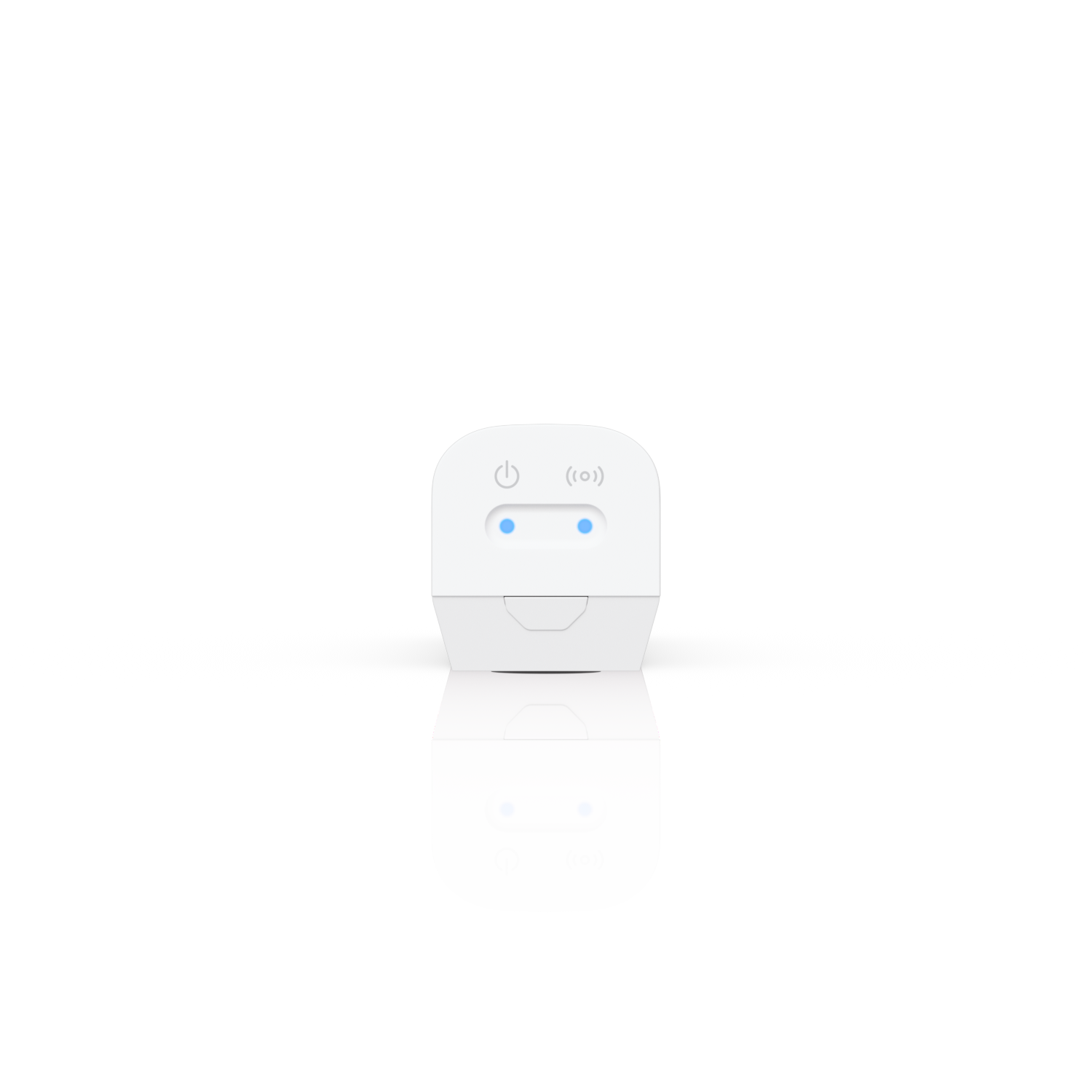

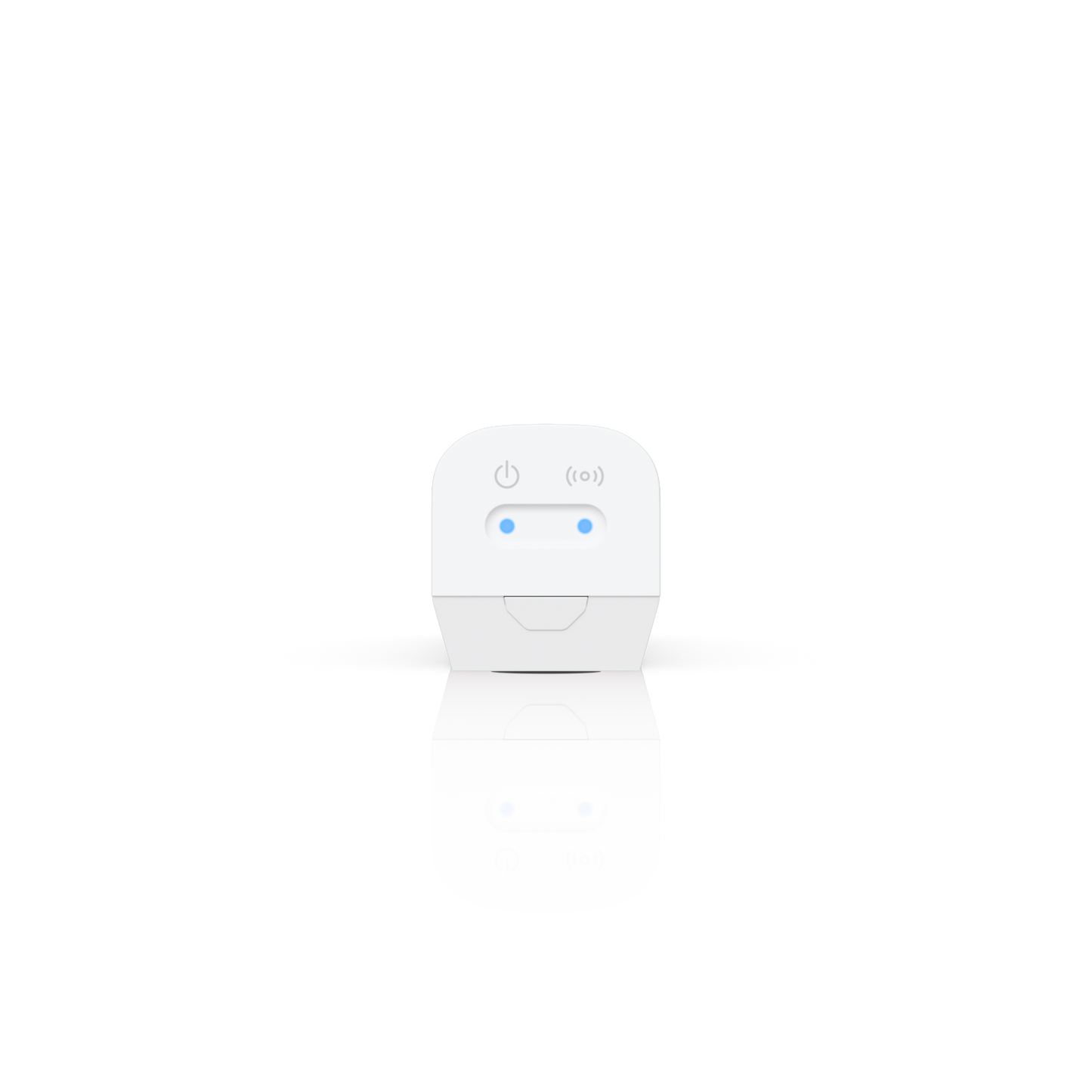

- Status and Signal LEDs for quick on-device diagnostics
- NDAA compliant — suitable for government and regulated environments
- Requires SuperLink Gateway for network connectivity and operation

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

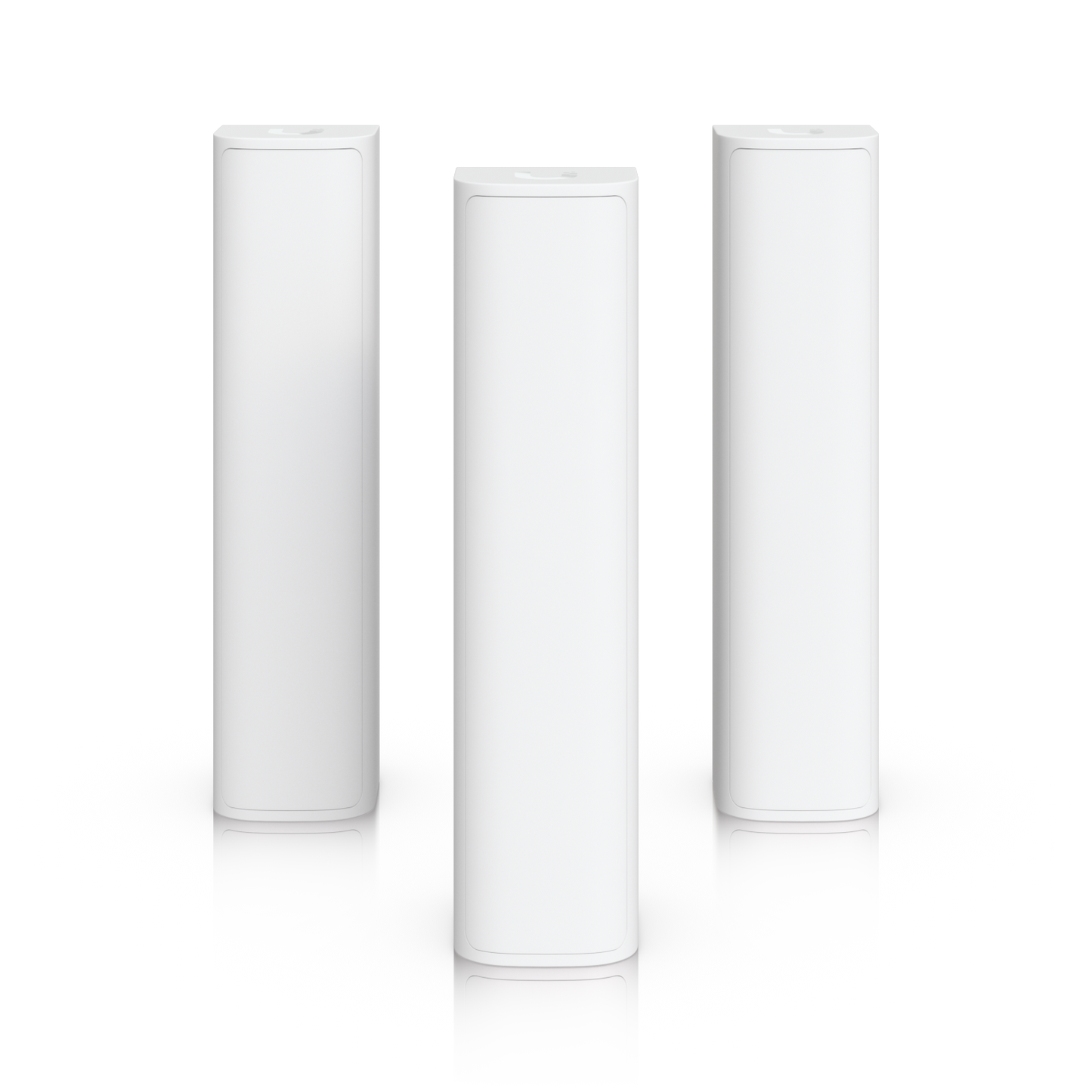

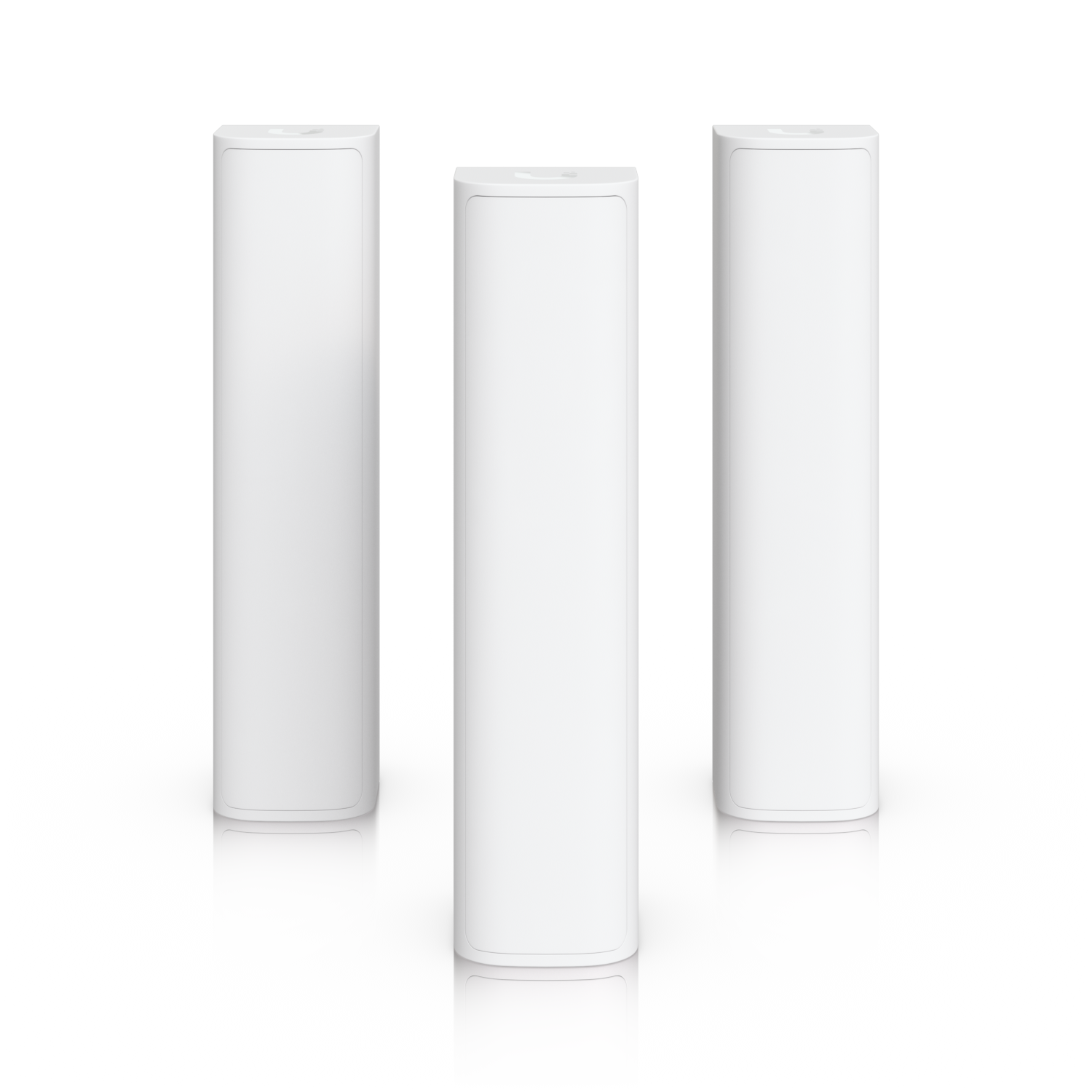

- Pack Quantity: 3 units
- Connectivity: SuperLink (Proprietary sub-GHz wireless)
- Operating Frequency (US): 915.6–927.6 MHz
- Operating Frequency (EU): 865.1–869.5 MHz
- Antenna Gain: 1 dBi
- Max TX Power: 14 dBm
- Max Range: 2 km (1.2 mi) Line of Sight
- Horizontal PIR Detection Range: Up to 1.5 m (4.9 ft)
- Vertical PIR Detection Range: Up to 6 m (19.7 ft) — with pet immunity
- Max Power Consumption: 22.6 mW

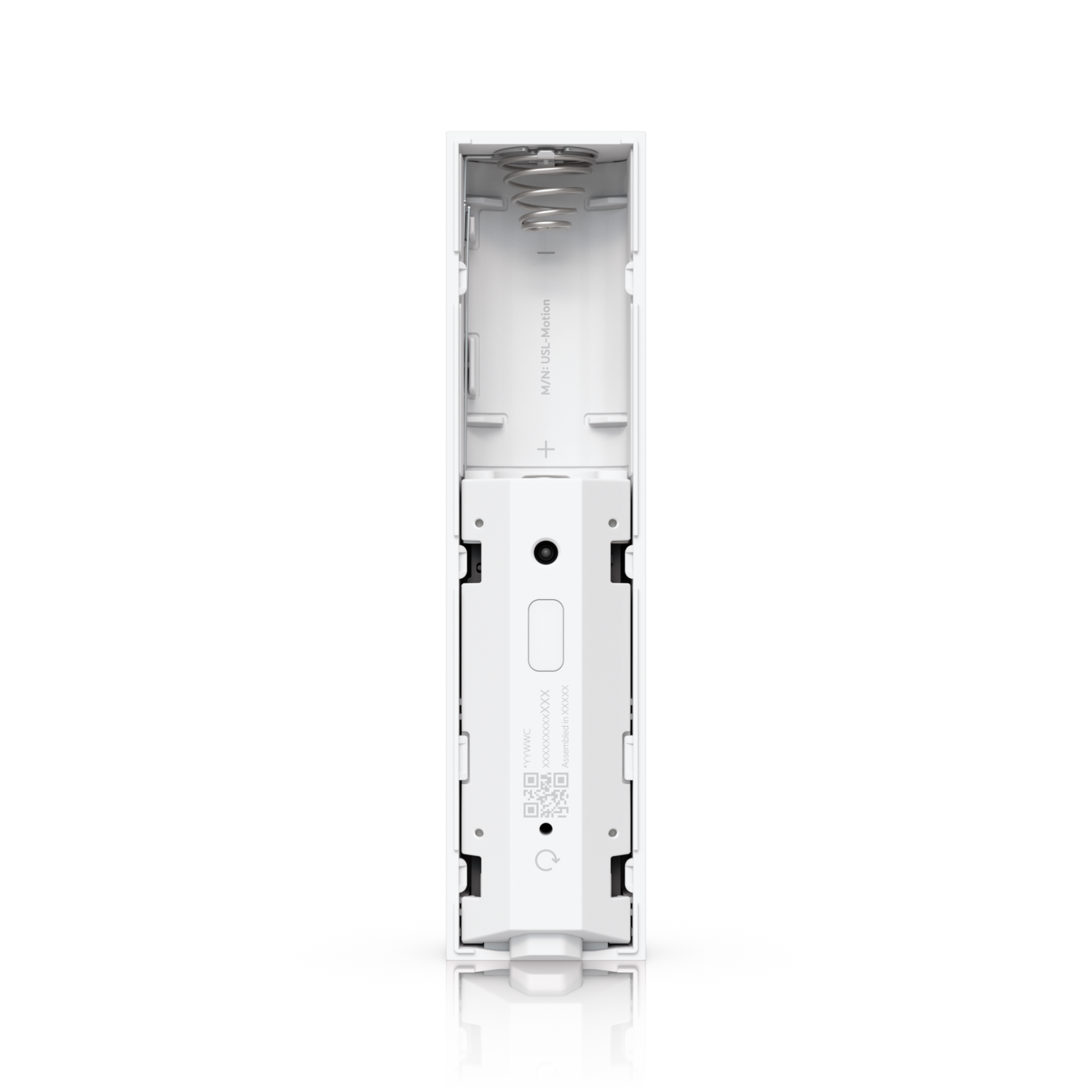

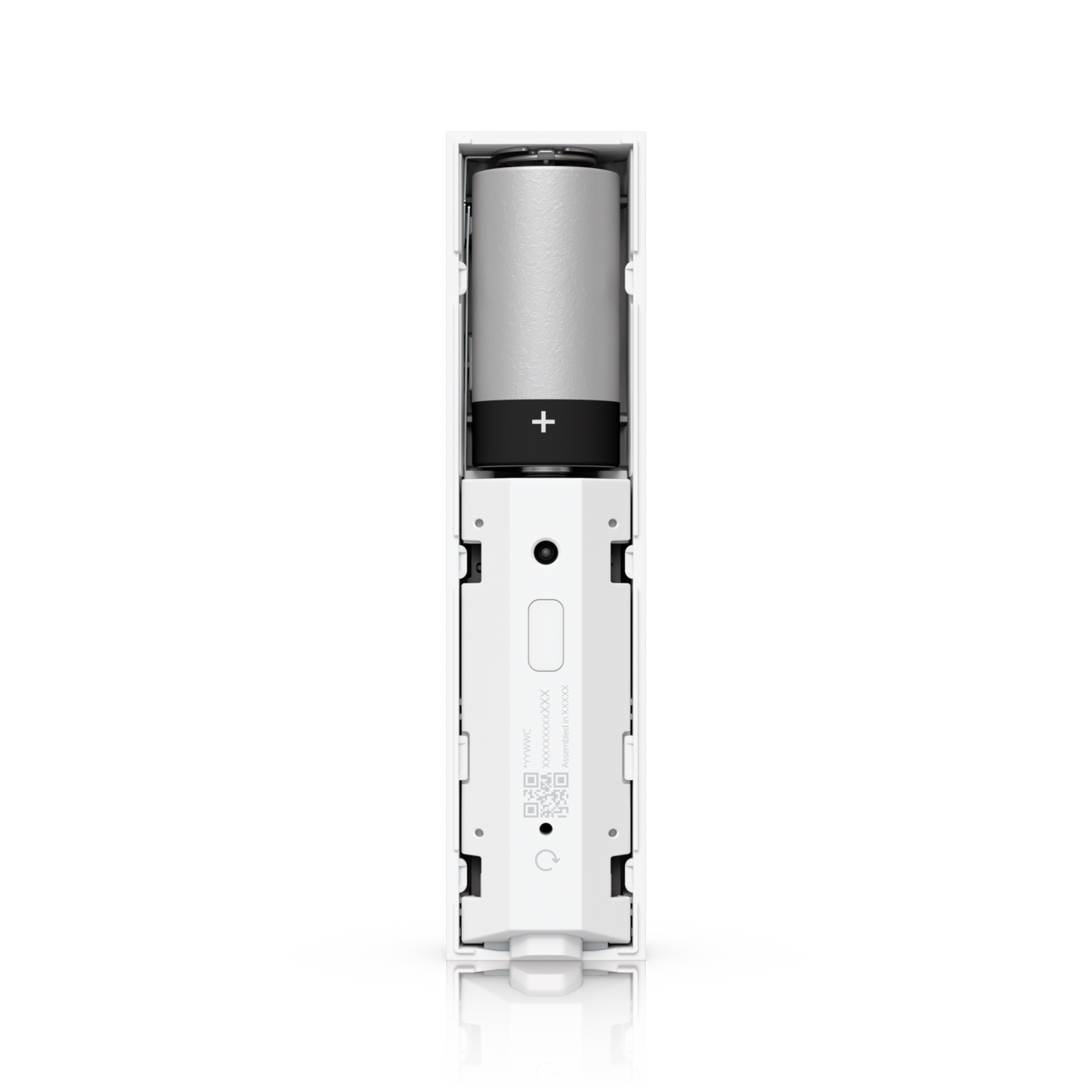

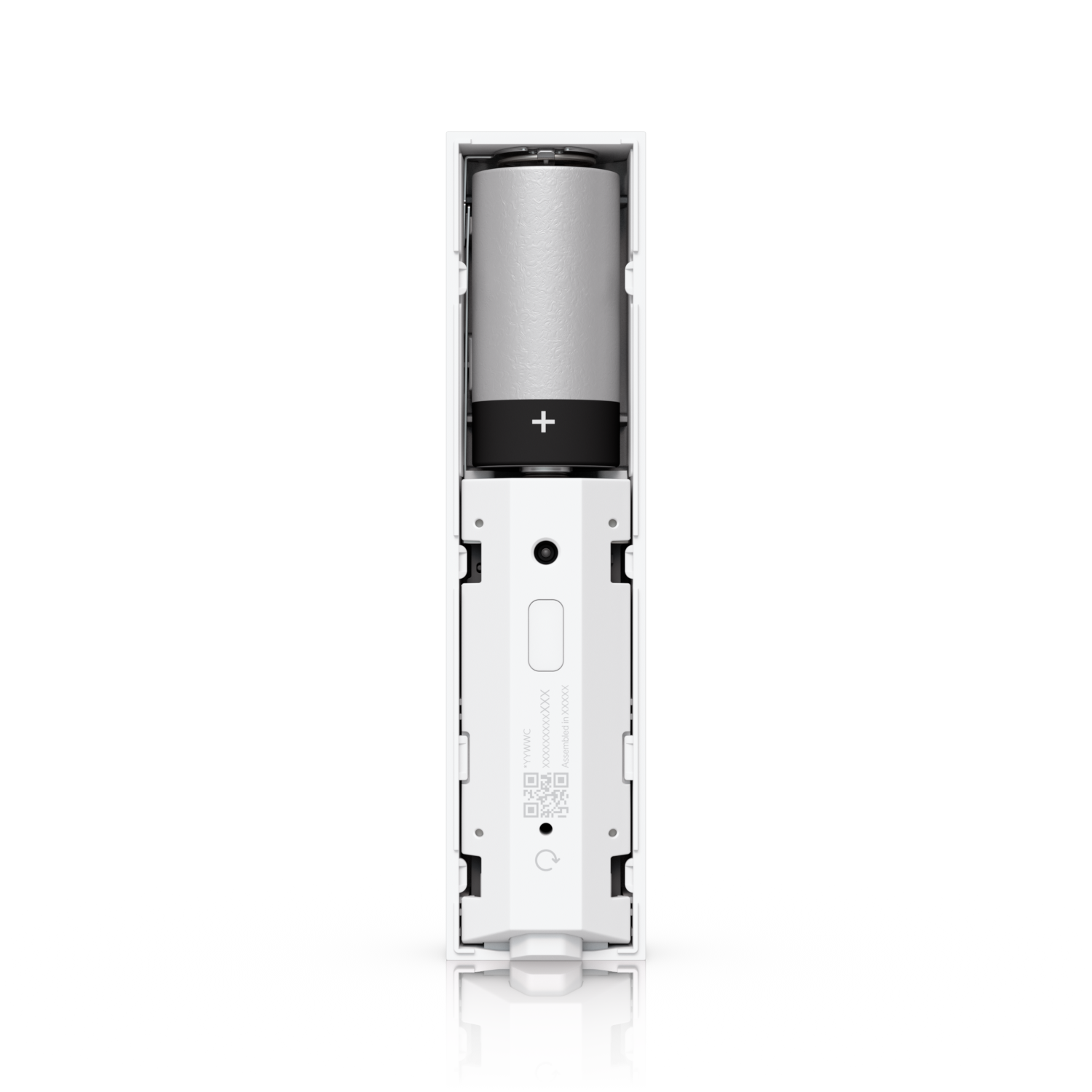

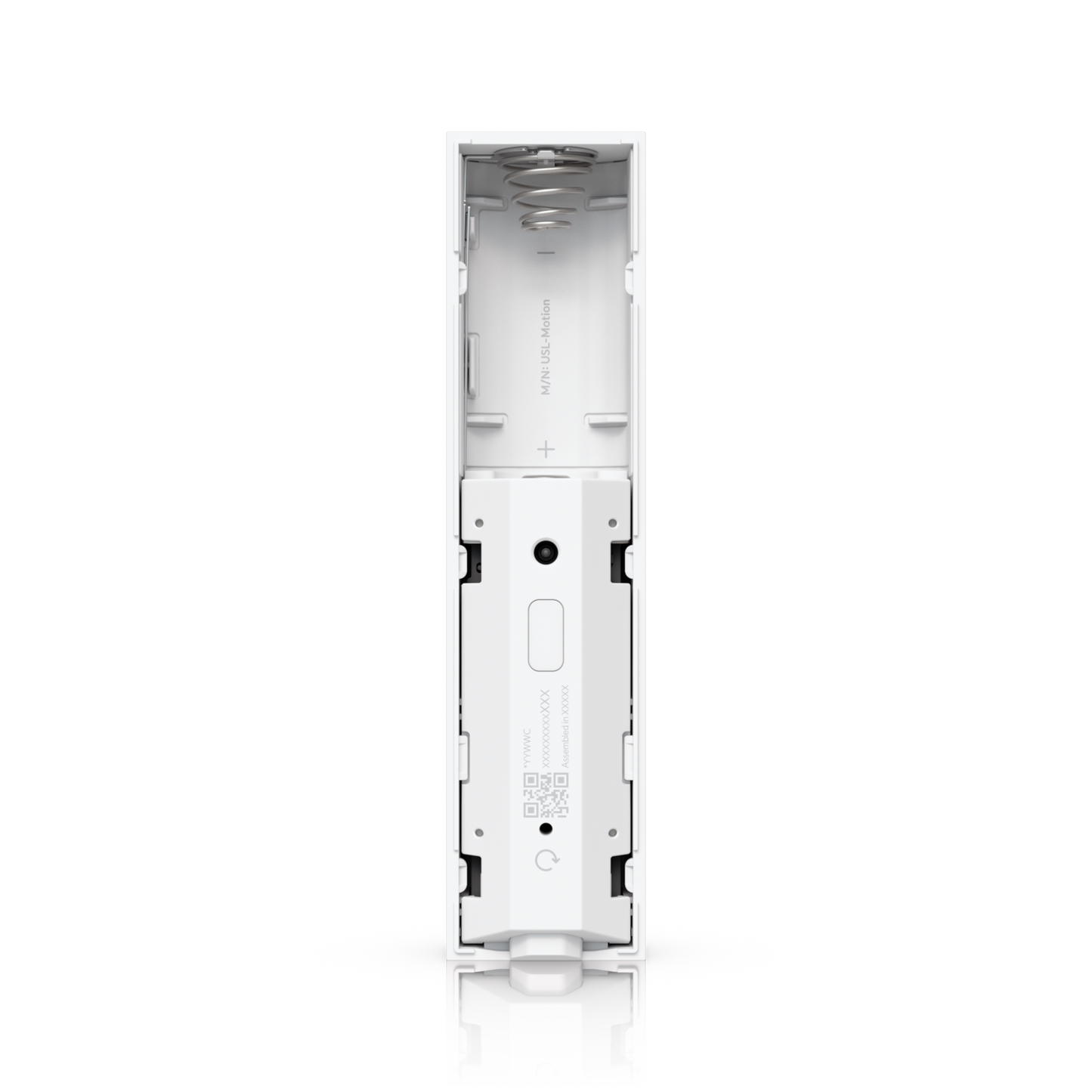

- Power Method: CR123A Lithium Battery (3V)
- Battery Life: Up to 6 years

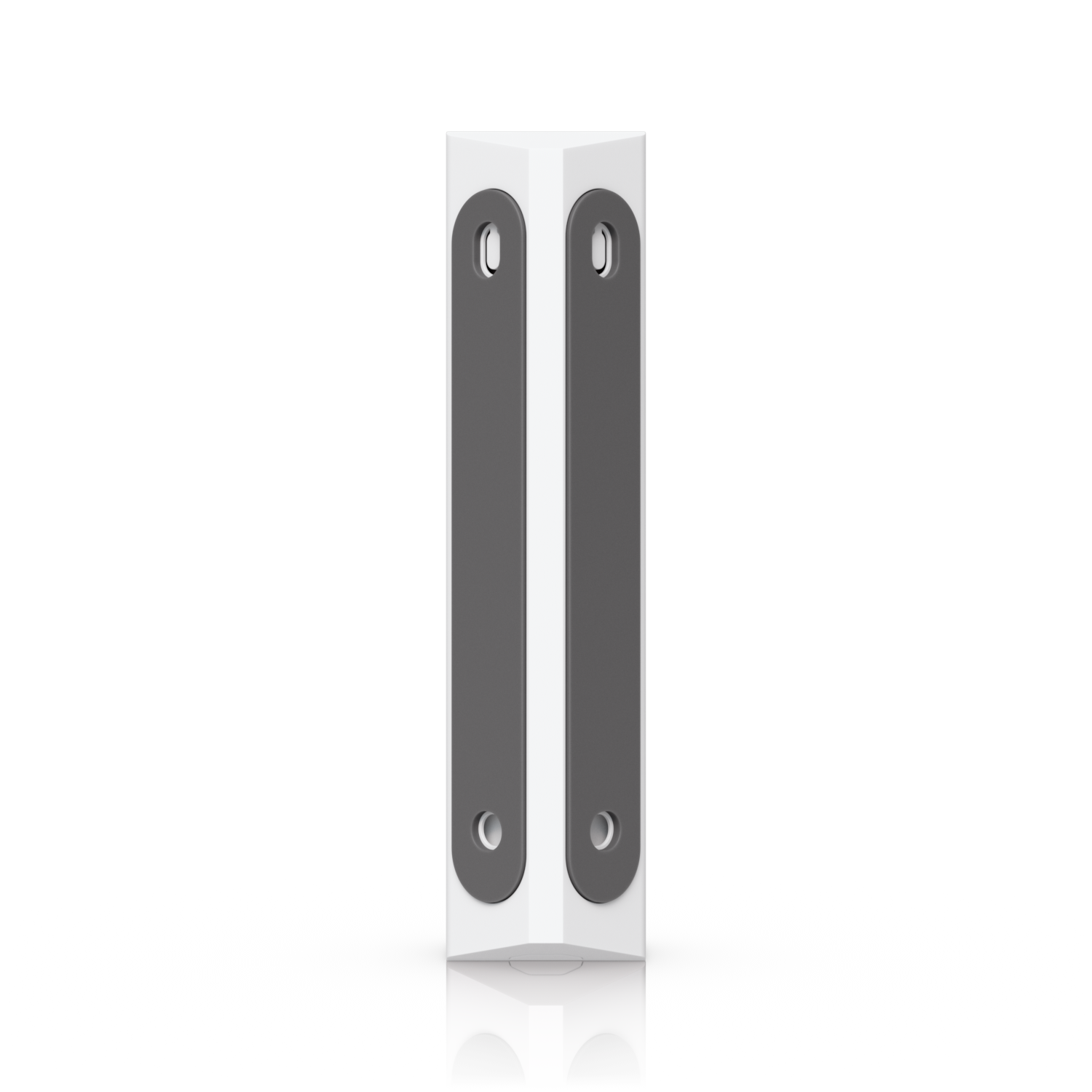

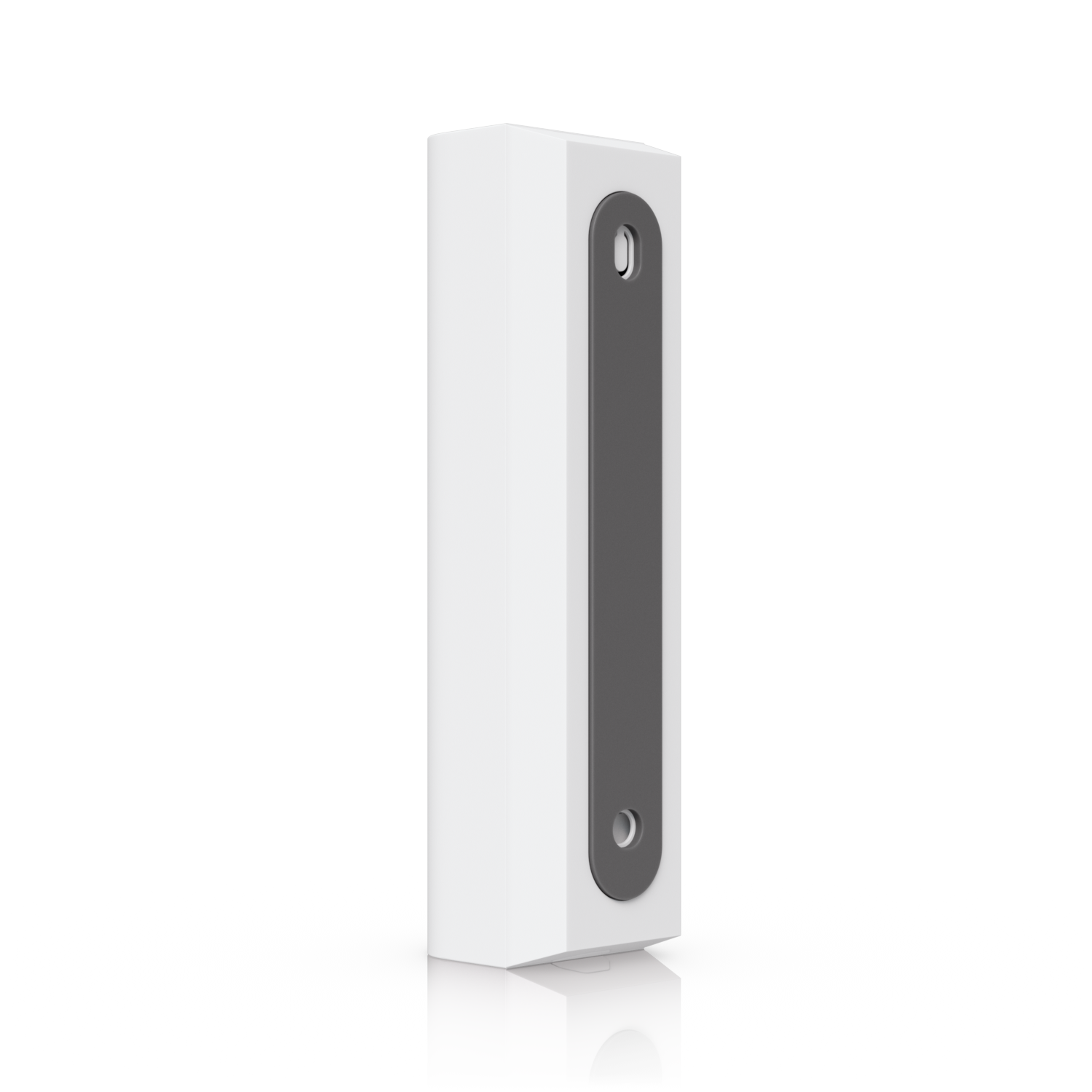

- Mounting Options: Adhesive or screw mount — wall or corner bracket
- Dimensions (Wall Mount): 93.5 x 22.5 x 24.7 mm
- Dimensions (Corner Mount): 93.5 x 22.5 x 27.9 mm

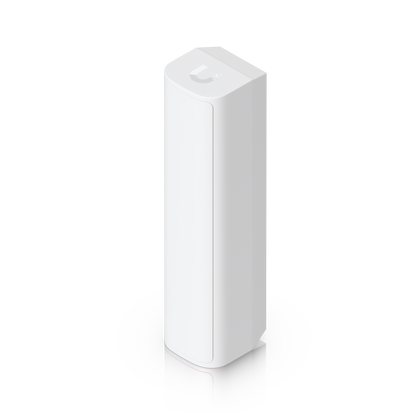

- Enclosure Material: Polycarbonate
- Operating Temperature: 0 to 40°C (32 to 104°F)
- Operating Humidity: 10–90% Non-condensing
- Certifications: FCC, IC, CE, NDAA Compliant

FAQs

Q: Does the USL-Motion-3 require any additional hardware to operate?
A: Yes — each USL-Motion sensor requires a UniFi SuperLink Gateway to communicate with the UniFi Protect ecosystem. The gateway handles the sub-GHz SuperLink wireless bridge to your UniFi network.

Q: What is the detection range of the motion sensors?
A: The horizontal PIR sensor detects motion up to 1.5 m (4.9 ft) away, while the vertical PIR sensor covers up to 6 m (19.7 ft) and includes pet immunity to reduce false alarms from small animals.

Q: How long do the batteries last and what type are required?
A: Each sensor is powered by a single CR123A lithium battery and rated for up to 6 years of battery life under normal operating conditions, significantly reducing ongoing maintenance overhead.

Q: Can these motion sensors be used outdoors?
A: The USL-Motion sensors are designed for indoor use, with an operating temperature range of 0–40°C and a polycarbonate enclosure. For outdoor perimeter security, consider pairing with outdoor-rated UniFi Protect cameras.

Q: How do the sensors integrate with UniFi Protect?
A: Once connected via a SuperLink Gateway, the sensors are managed through UniFi Protect's Alarm Manager. You can configure rule-based automations, receive real-time push notifications, and monitor status across the web dashboard or mobile apps on iOS and Android.

Q: Can I purchase the USL-Motion-3 in Australia from IP Trading?
A: Yes — IP Trading (iptrading.com.au) is an authorised Australian B2B reseller of Ubiquiti UniFi products. The USL-Motion-3 is available for purchase now with fast domestic fulfilment and reliable after-sales support.
