Ubiquiti USL-ENTRY-3-US | SuperLink Entry Door/Window Sensor 3-Pack, US, 2km

Authorised Ubiquiti Partner

SKU:USL-Entry-3-US

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

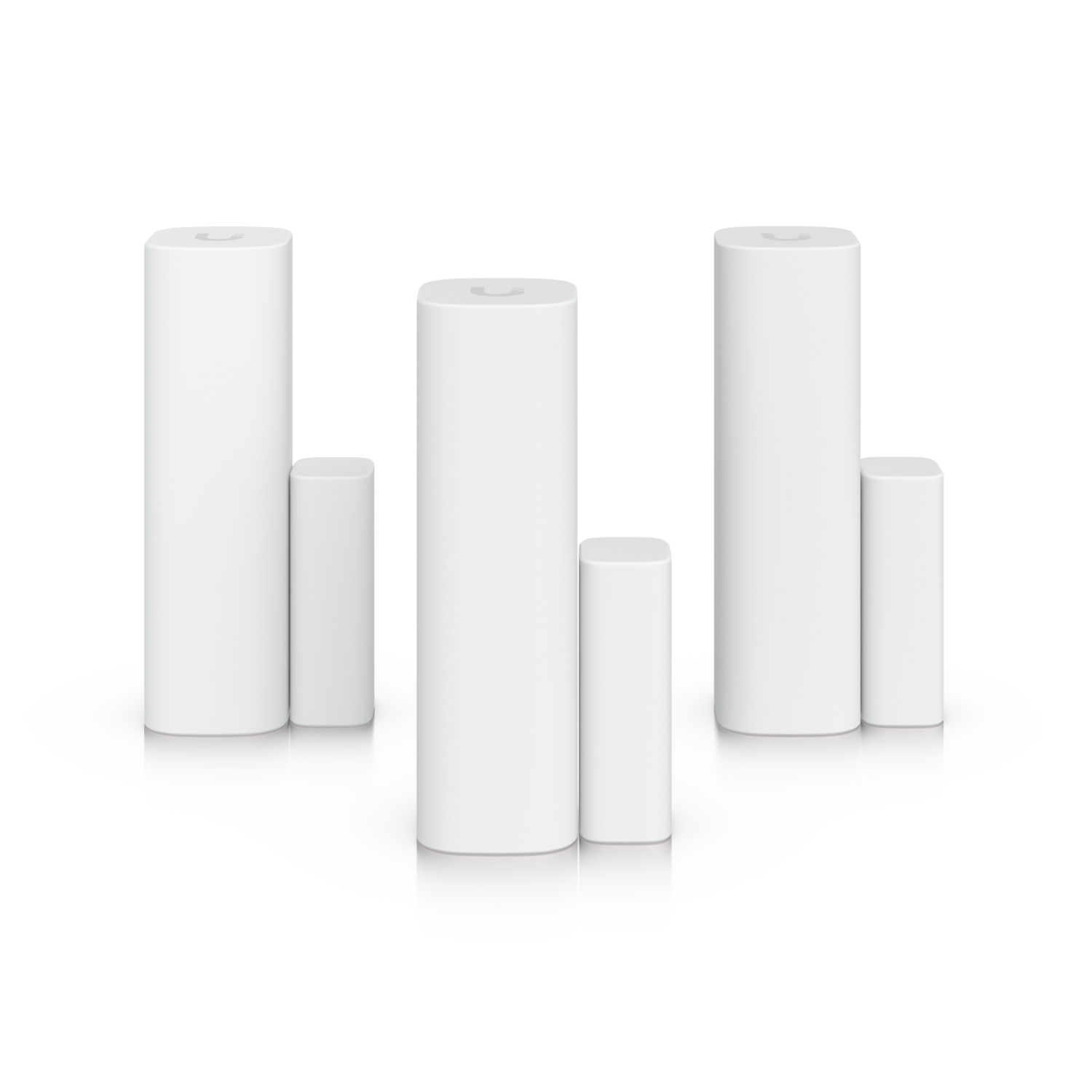

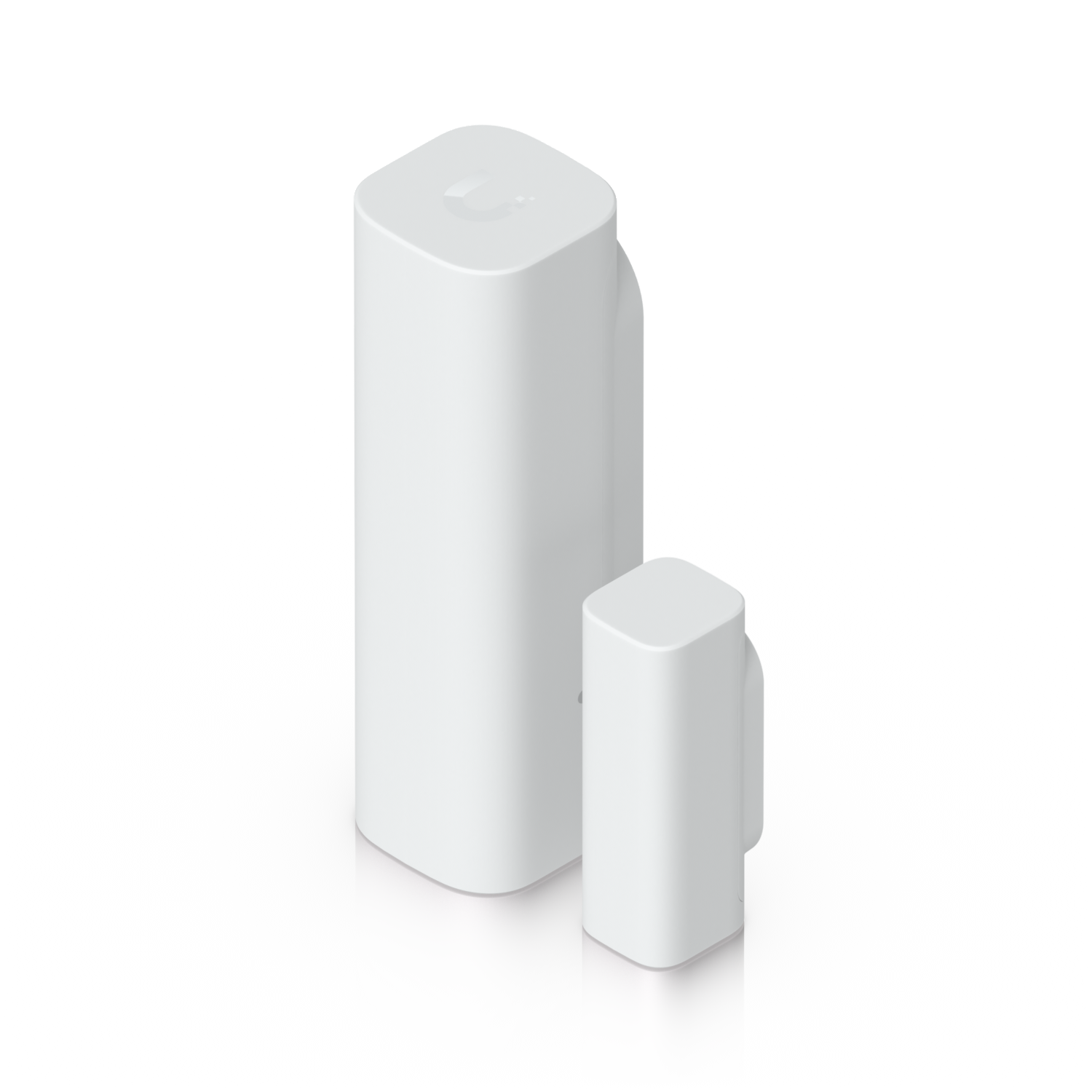

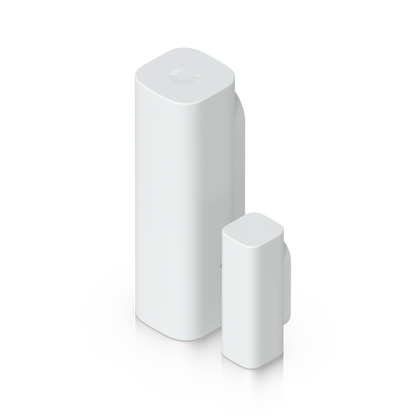

The UniFi SuperLink Entry Sensor 3-Pack (US model, 915.6-927.6 MHz) is a battery-powered wireless door and window sensor for UniFi Protect. Each of the three sensors uses an integrated reed switch with a tamper switch to report open and closed status, and connects over Ubiquiti's proprietary SuperLink protocol with a range of up to 2 km.

Each sensor runs on a single CR123A lithium battery for up to 6 years and mounts with adhesive or screws. Status and signal LEDs support on-site diagnostics, and the sensors are managed through the UniFi Protect web and mobile apps. A SuperLink Gateway is required and is sold separately.

Features

- Long-distance, low-power SuperLink wireless connection up to 2 km
- Monitors door and window open and closed status with an integrated reed switch
- Up to 6-year battery life on a single CR123A battery
- Built-in tamper switch for physical security
- Status and signal LED indicators for on-site diagnostics
- Flexible adhesive or screw mounting
- Managed through UniFi Protect web and mobile apps
- Three sensors per pack for multi-entry coverage

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Pack of 3 Entry Sensors (door/window)
- Connectivity: SuperLink (proprietary), up to 2 km (1.2 mi) range
- Operating frequency (US model): 915.6-927.6 MHz
- Antenna gain (SuperLink): 0 dBi
- Max. TX power (SuperLink): 14 dBm
- Sensing: reed switch with tamper switch

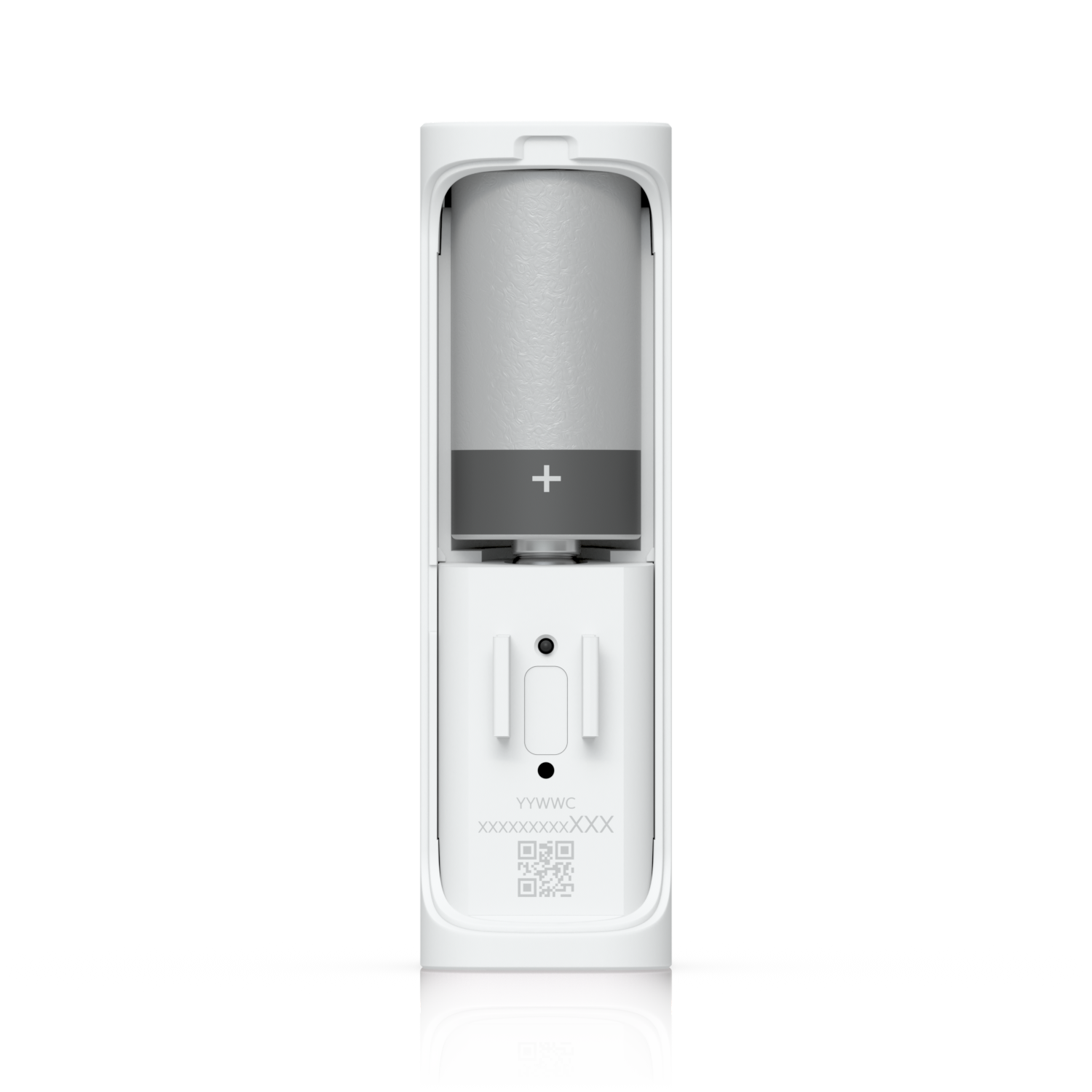

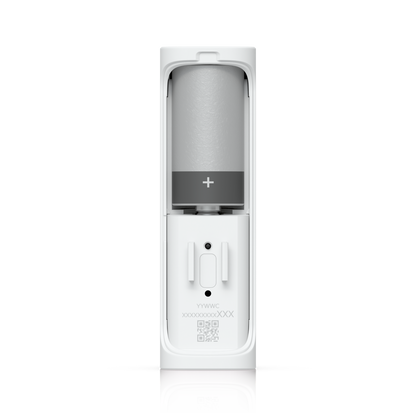

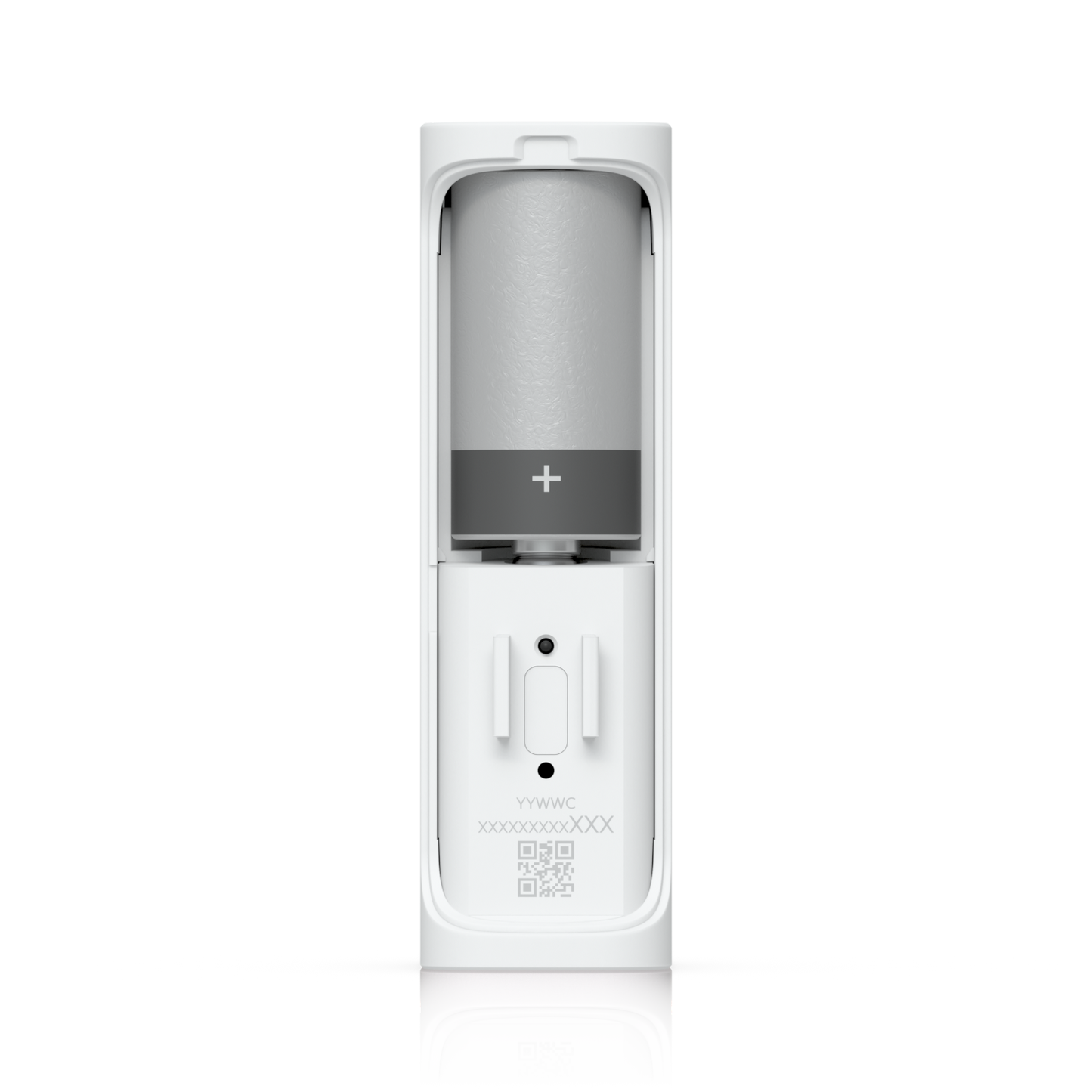

- Power: CR123A lithium battery, up to 6 years battery life
- Max. power consumption: 27.7 mW
- Supported voltage range: 3V
- Device dimensions (per sensor): 75.5 x 23.5 x 22.5 mm
- Magnet dimensions: 39 x 15.1 x 12.9 mm
- Device weight: 41 g, magnet weight: 22 g
- Enclosure and mount material: polycarbonate
- Buttons: factory-reset, function button, tamper switch
- LEDs: status (R/B/W) and signal (B/R)
- Mounting: adhesive and screw mount
- Operating temperature: 0 to 40 C (32 to 104 F)
- Operating humidity: 10 to 90% noncondensing
- Certifications: FCC, IC, CE; NDAA compliant
- Management: UniFi Protect web application and iOS and Android mobile apps

FAQs

Q: What is required to use the SuperLink Entry Sensors?
A: They require UniFi Protect and a SuperLink Gateway (UP-SuperLink / USL-Gateway). The gateway is not included in this 3-pack and is sold separately.

Q: How many sensors are in this pack?
A: This SKU contains three Entry Sensors, suitable for monitoring several doors or windows.

Q: What frequency does the US model use?
A: The US model operates on 915.6-927.6 MHz using Ubiquiti's proprietary SuperLink protocol.

Q: What is the wireless range and battery life?
A: SuperLink supports a range of up to 2 km (1.2 mi). Each sensor runs on a single CR123A lithium battery for up to 6 years.

Q: How are the sensors mounted?
A: Each sensor and its magnet can be fixed with adhesive or screws. The enclosure and mount are polycarbonate.

Q: Do the sensors detect tampering?
A: Yes. Each sensor has a built-in tamper switch in addition to the reed switch used for open and closed sensing.
