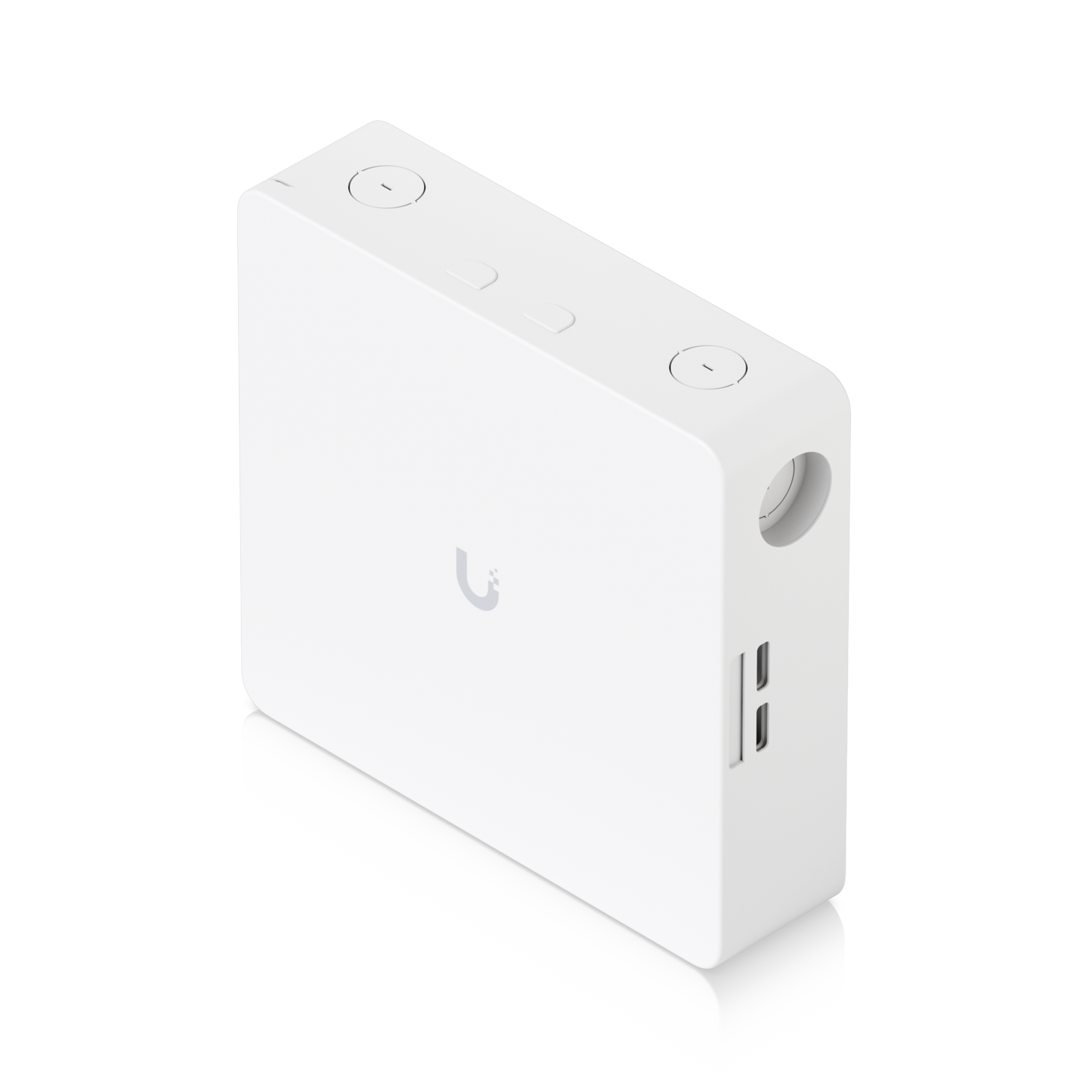

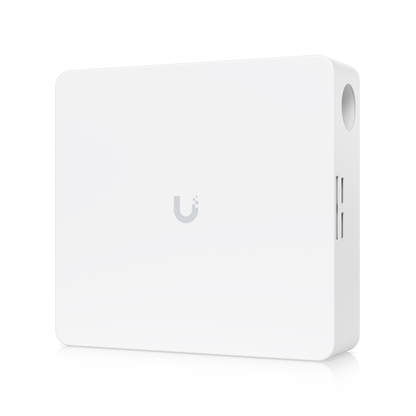

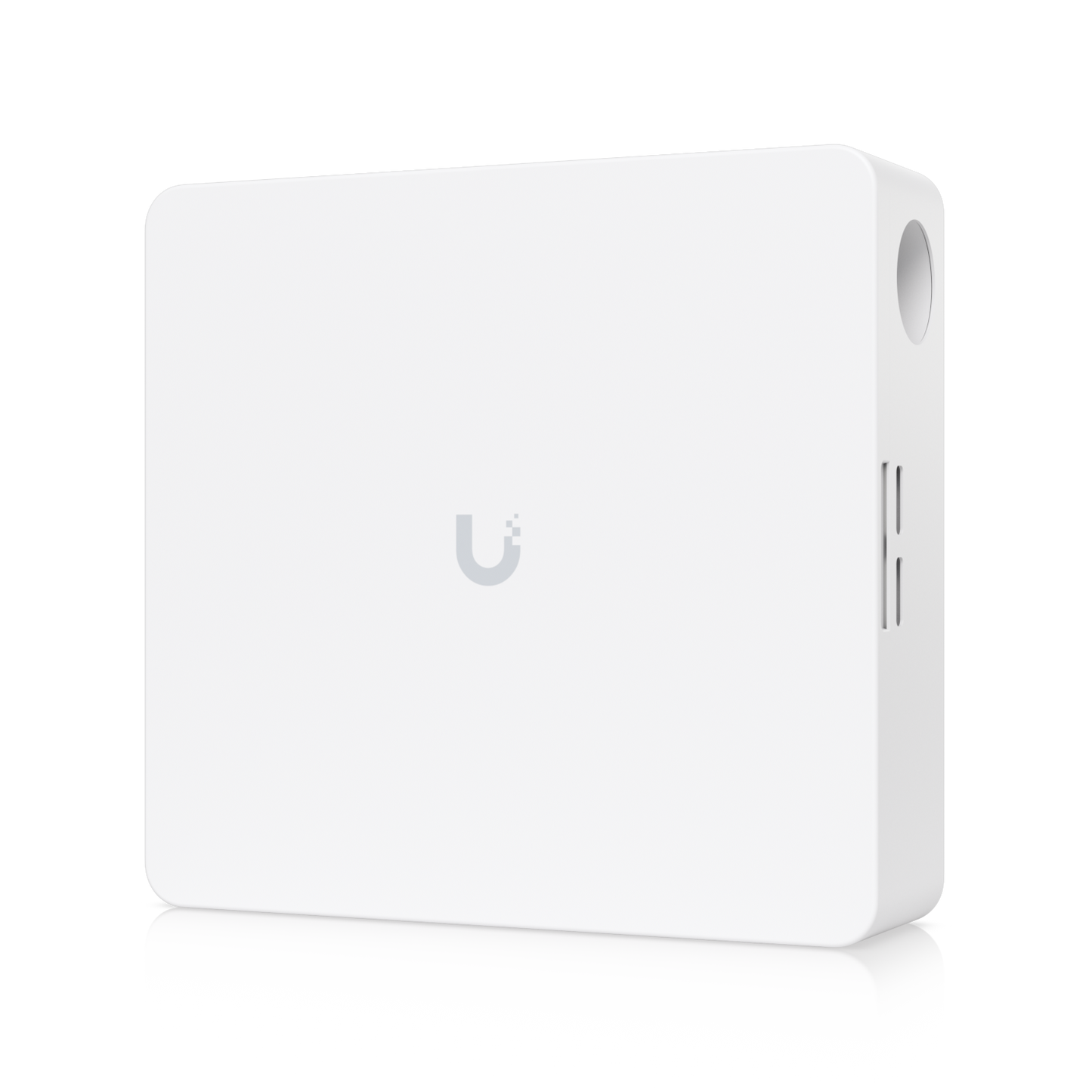

Ubiquiti UP-AlarmHub-Kit | UniFi Protect 32-Zone Wired Alarm Control Hub Kit

Ubiquiti UP-AlarmHub-Kit | UniFi Protect 32-Zone Wired Alarm Control Hub Kit

UP-AlarmHub-Kit

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

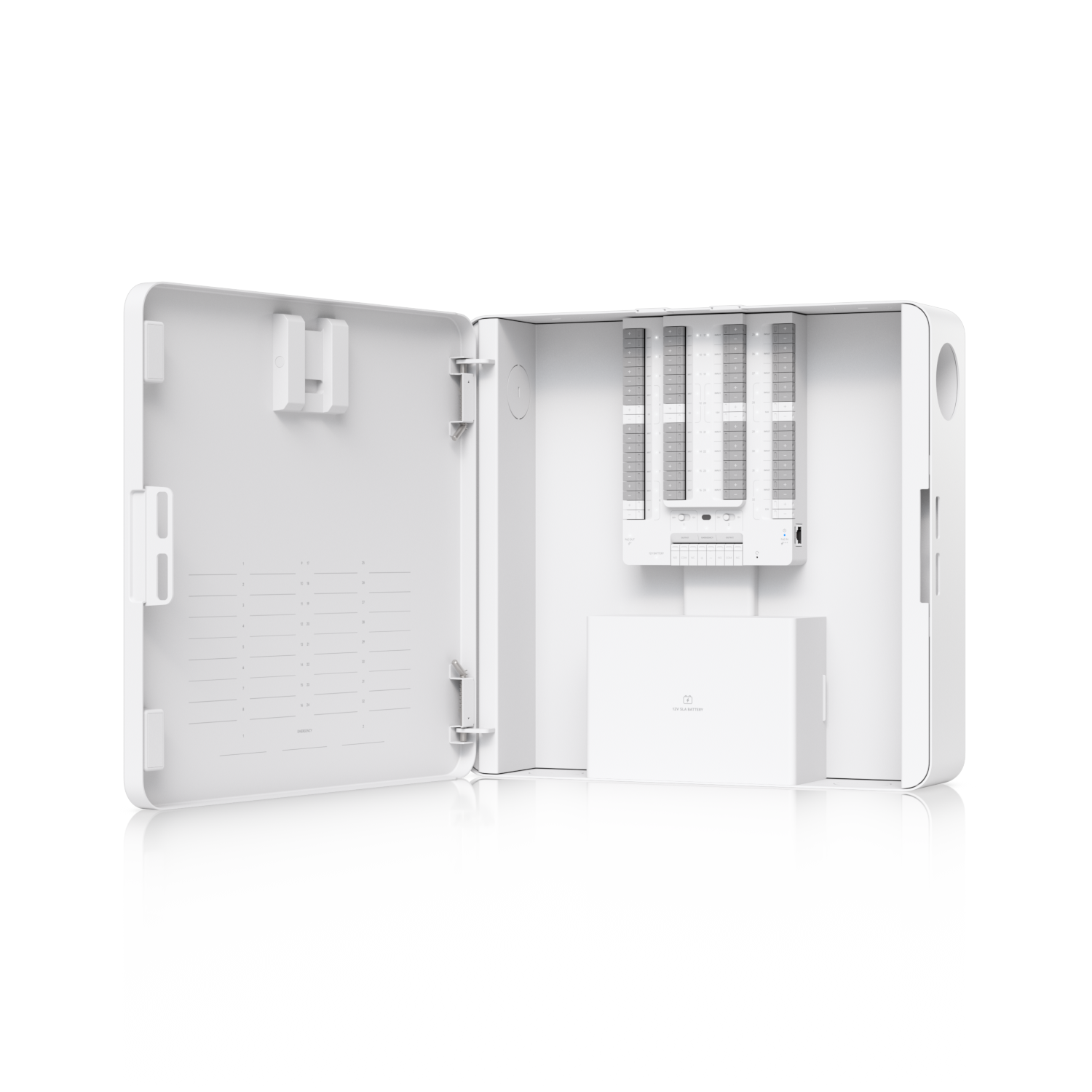

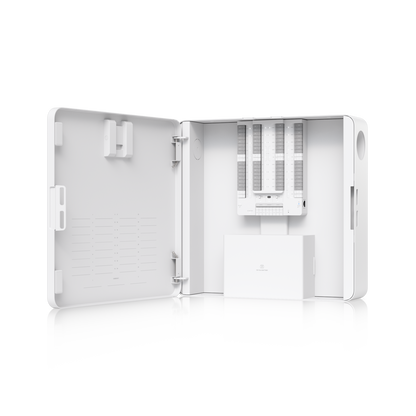

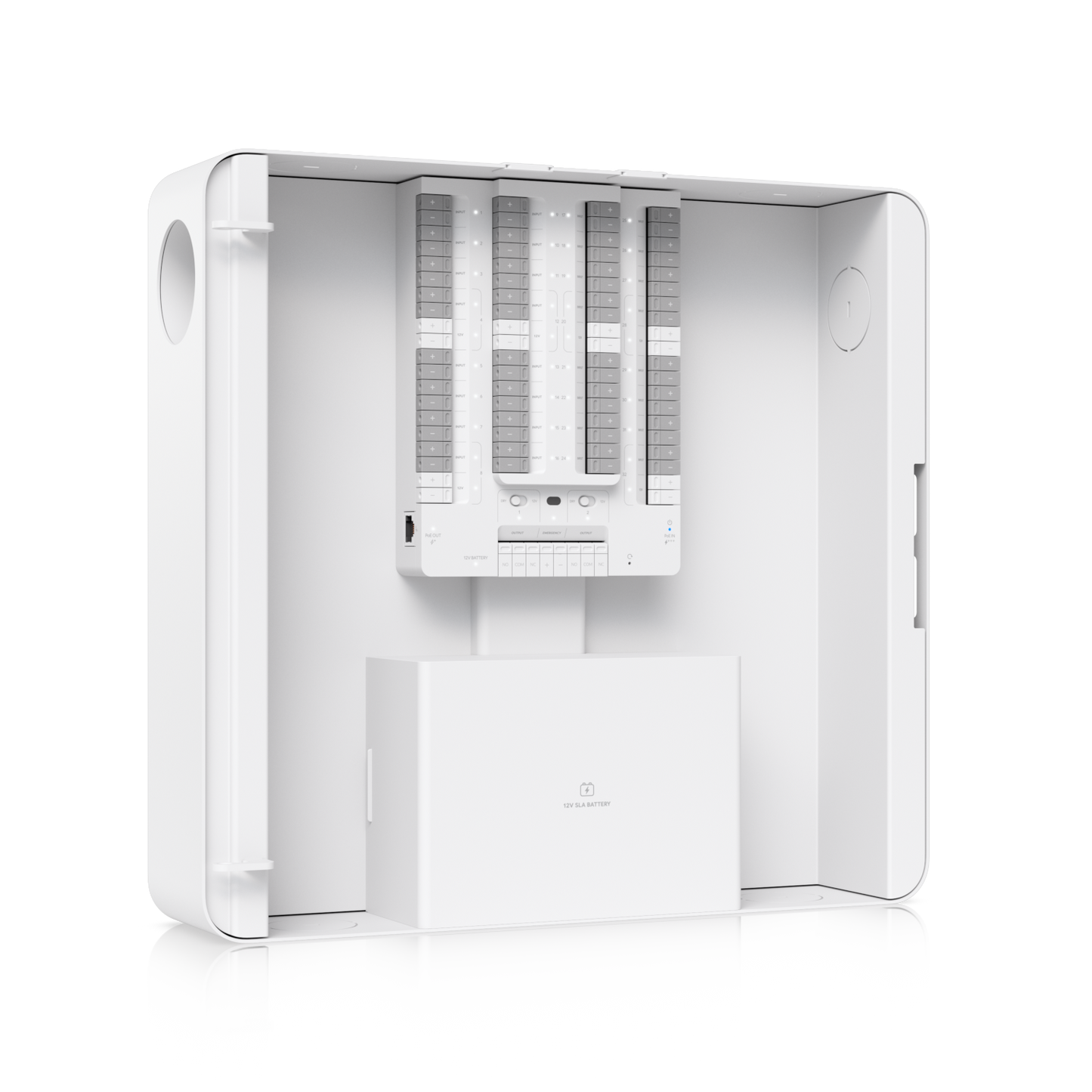

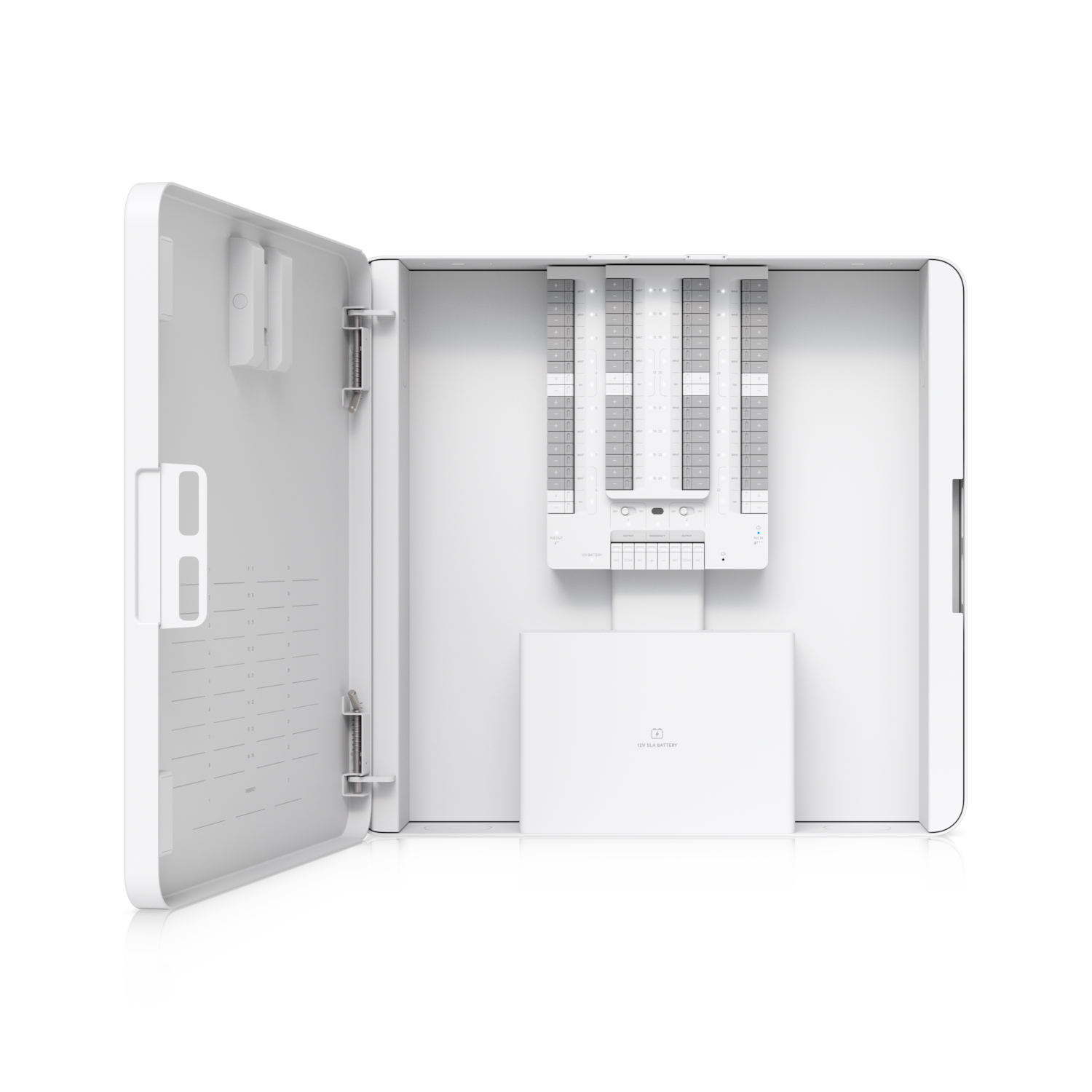

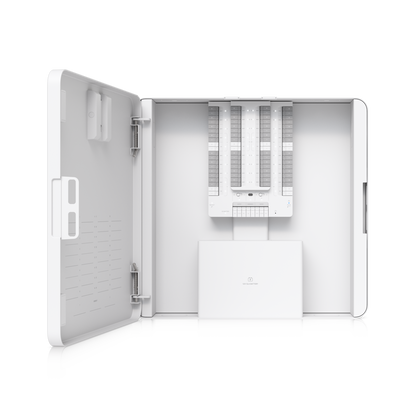

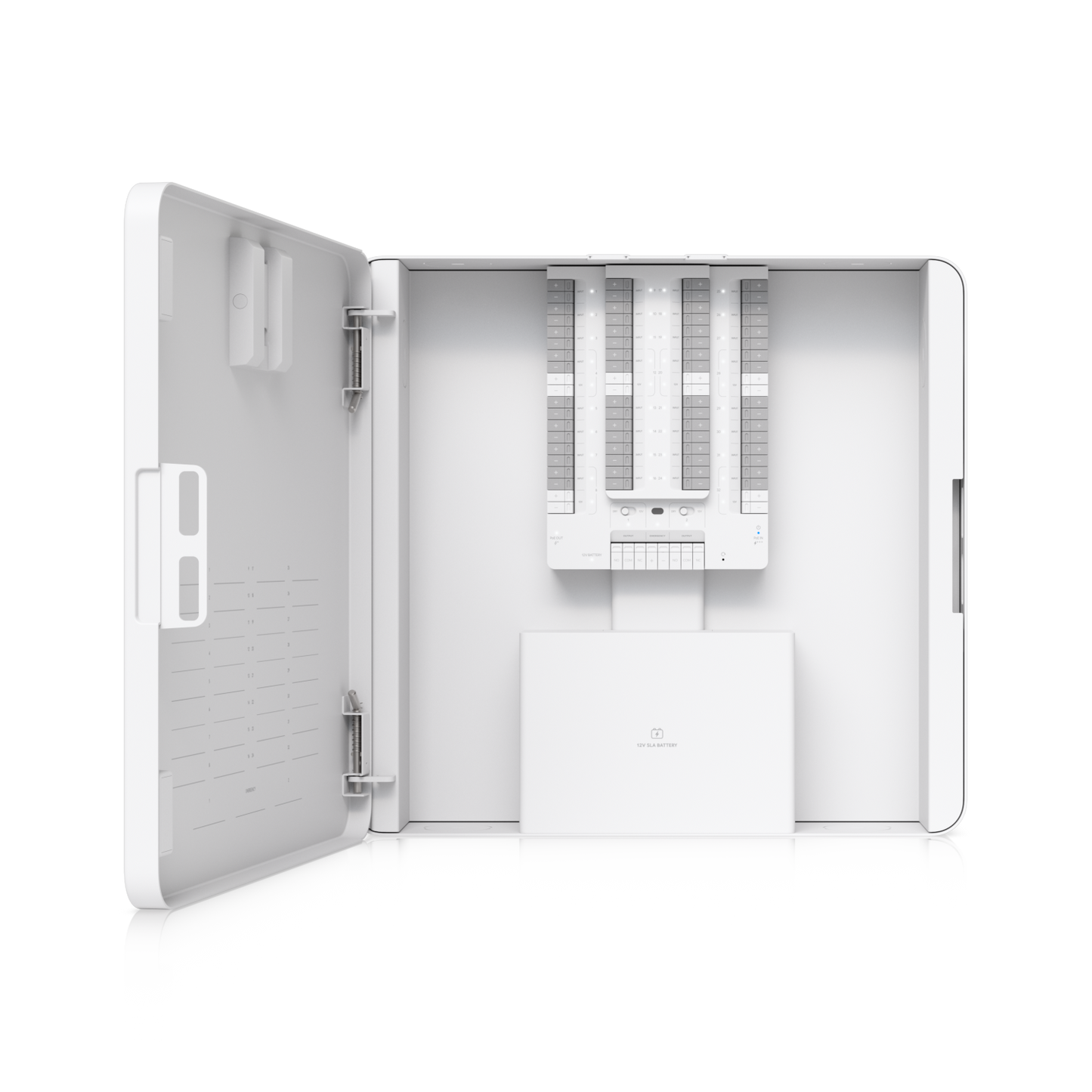

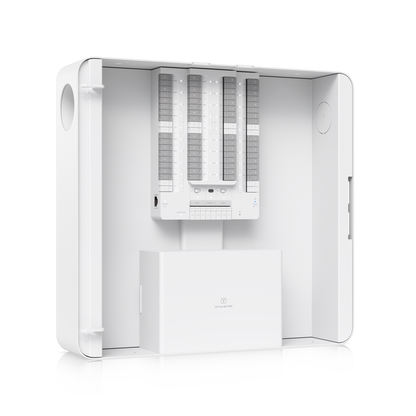

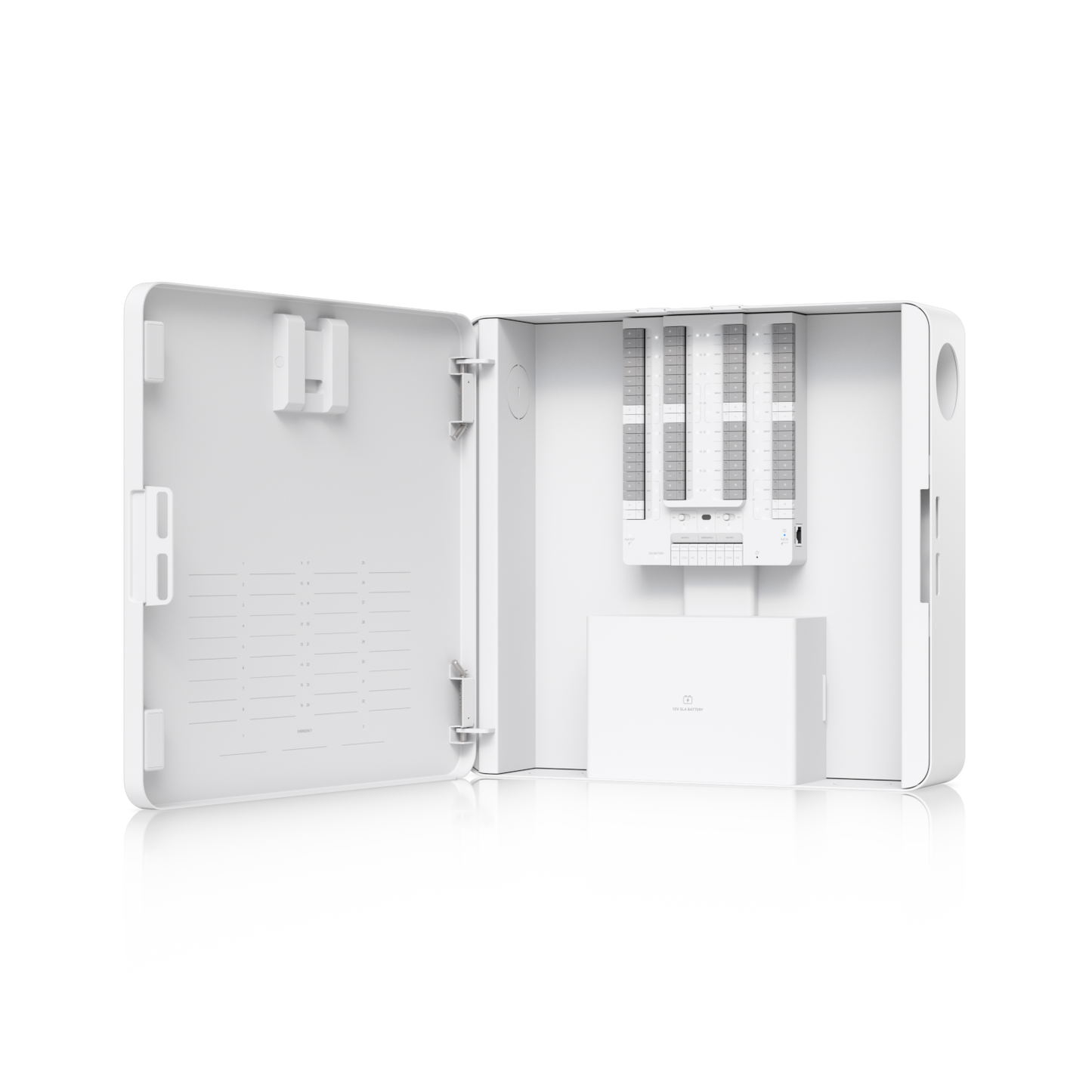

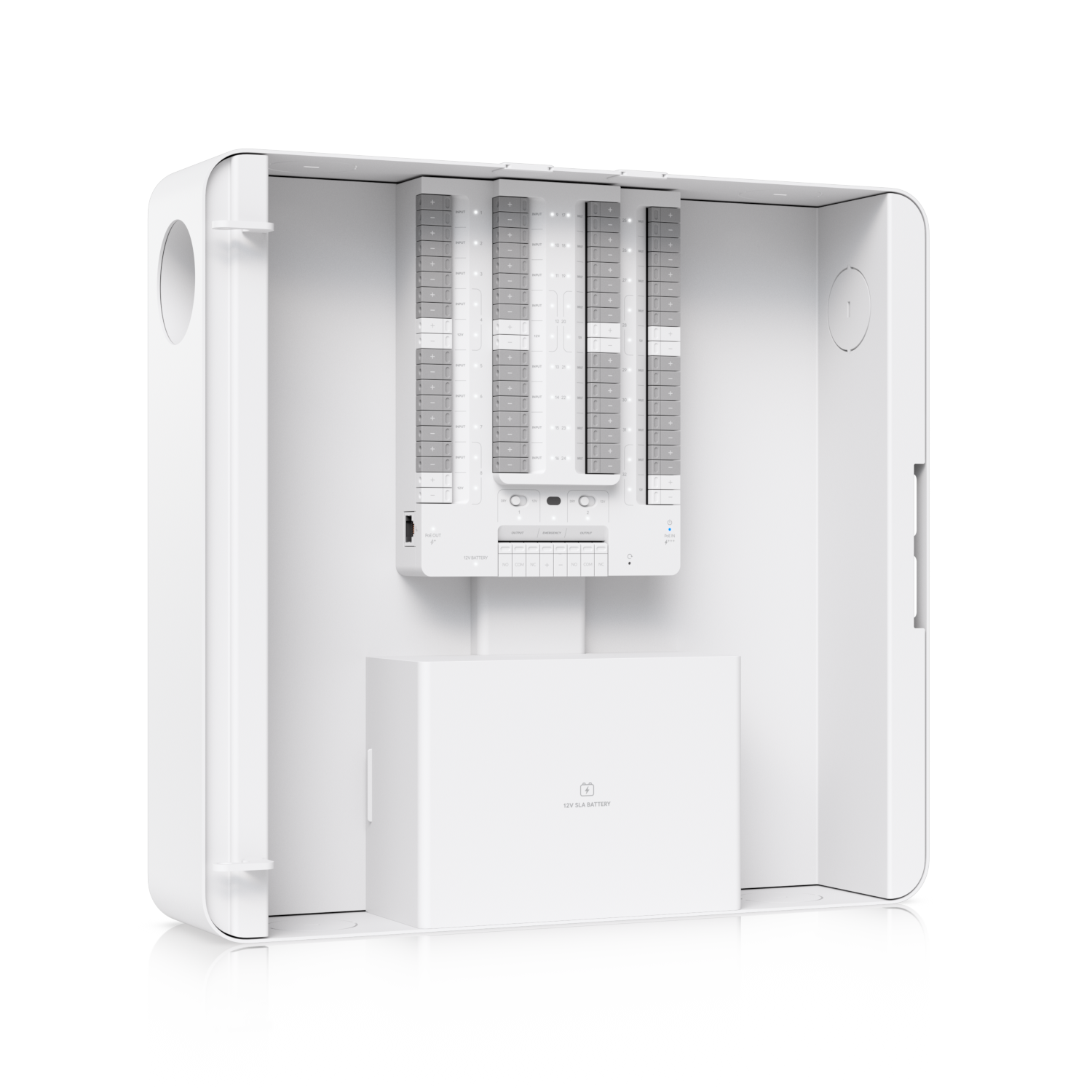

The UniFi Protect Alarm Hub Kit is a 32-zone wired alarm control hub engineered for hardwired intrusion sensor deployments in commercial and enterprise environments. Housed in a robust SGCC steel enclosure, it accepts up to 32 alarm sensor inputs plus a dedicated emergency input — supporting doors, windows, and perimeter entry points via EOL resistor configurations (SEOL and DEOL). Powered by a single PoE++/PoE+++ cable with optional 12V SLA battery backup (up to 6 hours standby), it suits both new installations and retrofits of legacy wired alarm infrastructure. Dual output relays drive sirens, strobes, or other alarm devices, and a built-in Time-of-Flight sensor provides enclosure tamper detection.

Fully integrated with the UniFi Protect application, the Alarm Hub Kit enables centralised zone configuration, arming schedules, and event management alongside your existing UniFi cameras and NVRs. Pair it with the SuperLink High-Availability Gateway for cellular failover and connect to UniFi Monitoring powered by Noonlight for professional 24/7 monitoring. NDAA compliant and designed for indoor wall mounting, this kit delivers enterprise-grade physical security management through a single unified platform. Buy today from iptrading.com.au — fast shipping and expert service across Australia.

Features

- 32-zone wired alarm input for comprehensive coverage of doors, windows, and entry points
- EOL (End-of-Line) resistor support in SEOL and DEOL modes for line supervision
- Built-in Time-of-Flight (ToF) tamper detection sensor
- Single-cable PoE++/PoE+++ power and data delivery — simplified installation
- Optional 12V SLA battery backup for up to 6 hours of continuous operation
- Programmable dual output relays to drive sirens, strobes, and external alarm devices
- Space on enclosure door for SuperLink Gateway mounting
- Designed for new deployments and seamless retrofits of legacy wired alarm systems
- Unified management via UniFi Protect application — zone configuration, arming, and event logging
- Cellular failover support when paired with SuperLink High-Availability Gateway
- Compatible with UniFi Monitoring powered by Noonlight for professional 24/7 monitoring
- NDAA compliant for government and regulated deployments

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Input Terminals: 32x alarm sensor inputs + 1x emergency input
- Digital Input: EOL resistor support — 1–5.6kΩ (1kΩ included), SEOL and DEOL modes
- Output Relay: 2x wet/dry — Wet: 12V DC 1A, Dry: 30V DC 1A
- Aux Power Output: 3x 12V DC 1A (right side) + 3x 12V DC 1A (left side)
- Power Method: PoE++/PoE+++ input or 12V SLA battery backup
- Power Output: 68W (PoE+++ input), 42W (PoE++ input)
- Battery Life: Up to 6 hours standby, 4 hours active mode
- Enclosure Material: SGCC steel housing with polycarbonate cover

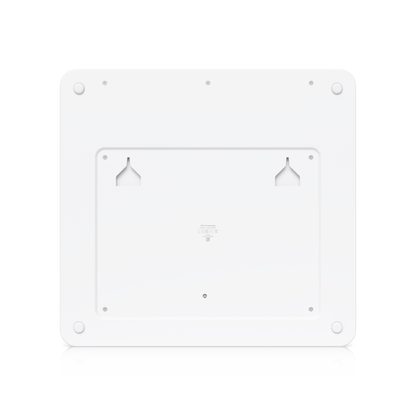

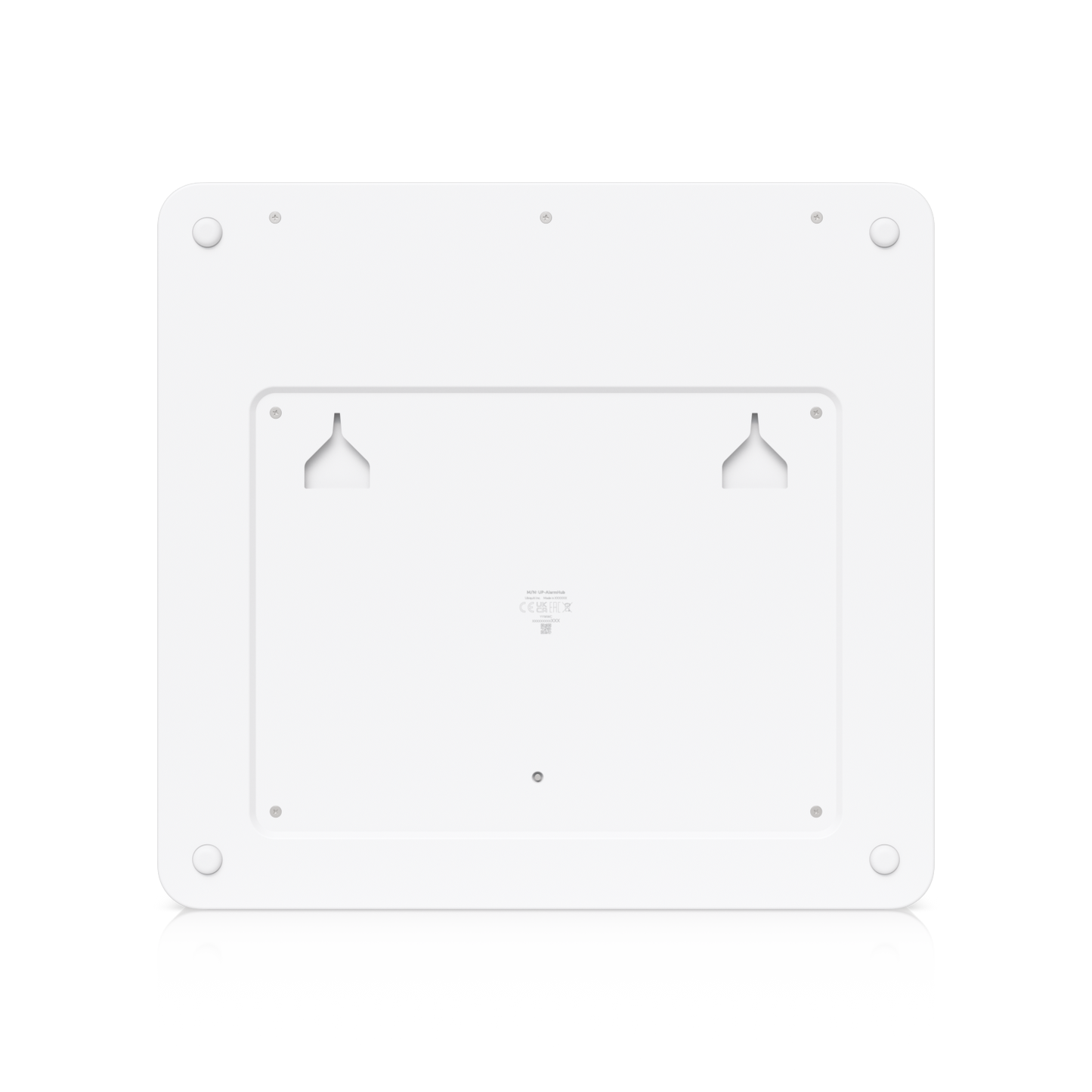

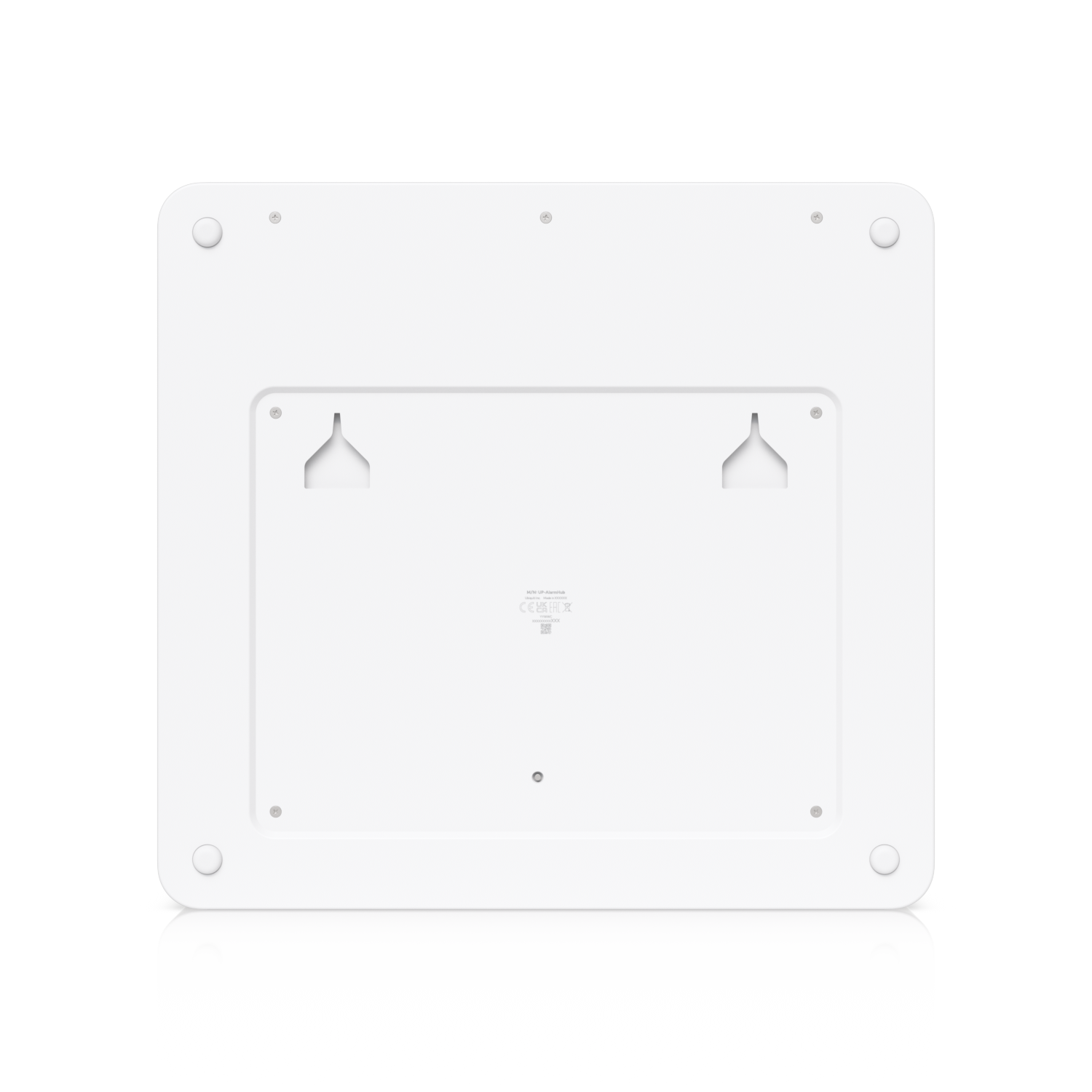

- Mount Material: SGCC steel (wall mount included)
- Dimensions: 379 x 355 x 105 mm (15 x 14 x 4.1 in)
- Weight: 8.3 kg device / 624 g mount
- Operating Temperature: -10 to 40°C (14 to 104°F)
- Indoor use only
- NDAA Compliant: Yes

FAQs

Q: How many alarm zones does the UP-AlarmHub-Kit support?
A: The Alarm Hub Kit supports 32 hardwired alarm sensor inputs plus one dedicated emergency input, making it suitable for comprehensive coverage of large commercial premises with numerous doors, windows, and perimeter points.

Q: What happens if the network or power goes down?
A: The hub supports an optional 12V SLA battery backup providing up to 6 hours of standby power or 4 hours in active mode. When paired with the SuperLink High-Availability Gateway, cellular failover ensures continued connectivity even if the primary network link fails.

Q: Can the UP-AlarmHub-Kit be used to replace or upgrade an existing wired alarm system?
A: Yes. It is specifically designed to support both new deployments and retrofits of legacy wired alarm infrastructure. Existing hardwired sensors can be connected directly to the 32 input terminals, preserving your sensor investment while adding UniFi Protect management.

Q: How is the Alarm Hub Kit managed and monitored?
A: It is fully integrated with the UniFi Protect application, which provides centralised zone configuration, arming schedules, and real-time event management alongside UniFi cameras and NVRs. For professional monitoring, it is also compatible with UniFi Monitoring powered by Noonlight.

Q: What type of sensors and wiring does it support?
A: The hub supports standard hardwired intrusion sensors using End-of-Line (EOL) resistors in both SEOL (single EOL) and DEOL (double EOL) configurations with resistances of 1–5.6kΩ. 1kΩ resistors are included in the kit.

Q: Can I purchase the UP-AlarmHub-Kit in Australia, and is local support available?
A: Yes. The UP-AlarmHub-Kit is available from iptrading.com.au with fast shipping to all states and territories. IP Trading provides expert pre-sales advice and after-sales support for Ubiquiti UniFi Protect deployments across Australia.
