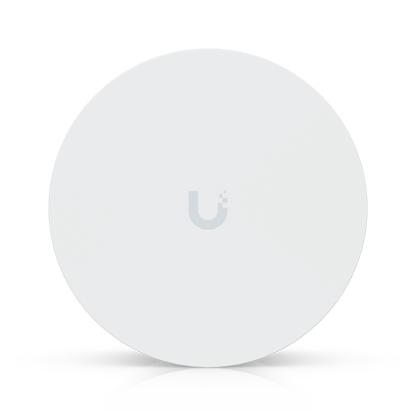

  • White circular ubiquiti up-airquality wireless access point with gray u logo for vape detection and air quality sensing poe
  • White circular ubiquiti up-airquality smart air quality monitor with green led ring and perforated mesh sides for vape detection and poe

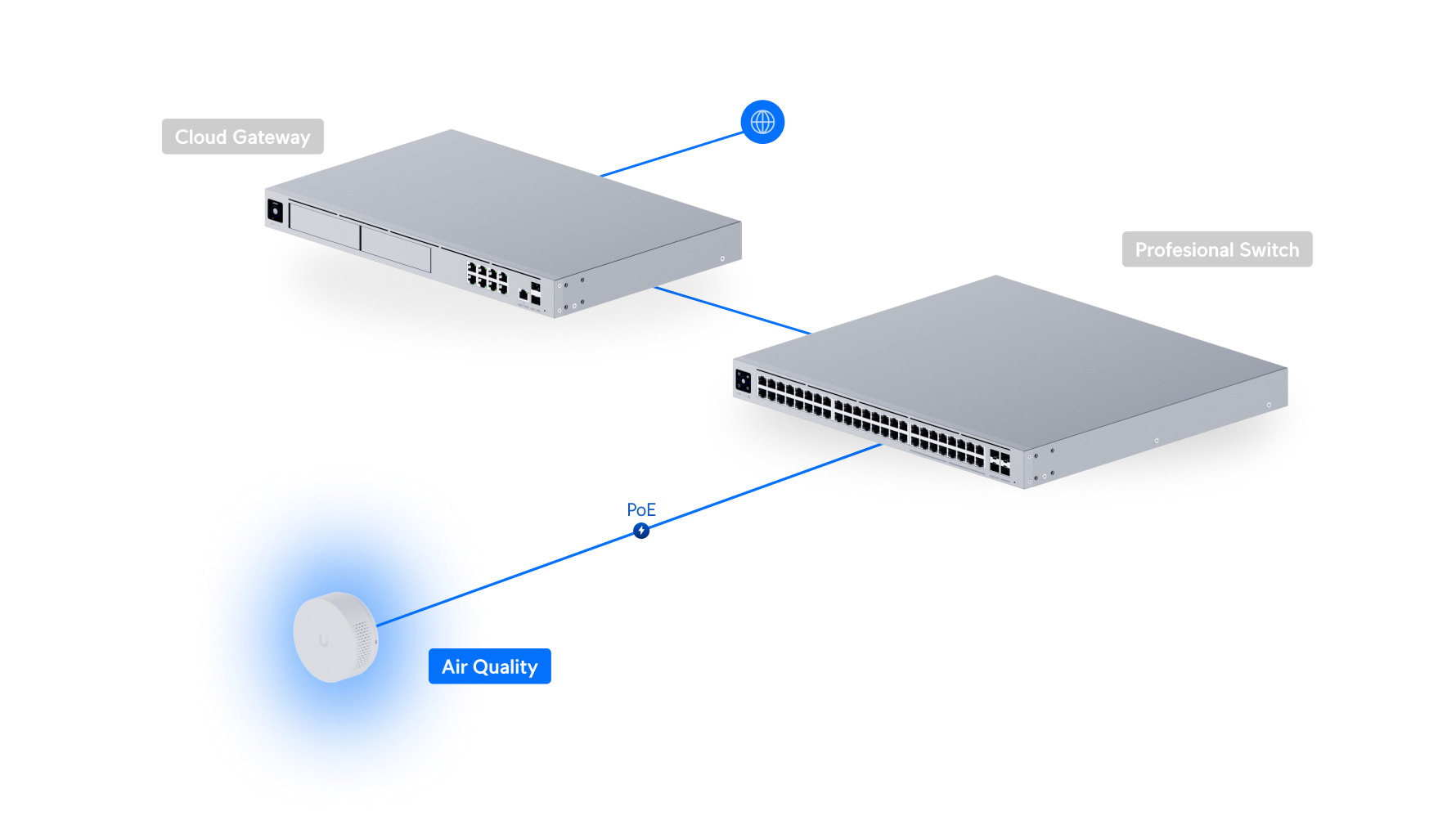

  • Silver cloud gateway network device with multiple ports and ventilation slots shown from the back for ubiquiti up-airquality poe sensor
  • Ubiquiti up-airquality white circular wireless router with glowing green led ring for vape detection and air quality sensing
1 5

Ubiquiti

Ubiquiti UP-AIRQUALITY | UniFi Protect Vape Detection & Air Quality Sensor, PoE

Ubiquiti UP-AIRQUALITY | UniFi Protect Vape Detection & Air Quality Sensor, PoE

UP-AIRQUALITY

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The UP-AirQuality is a UniFi Protect environmental sensor designed for schools, workplaces, hospitality venues, and commercial spaces where discreet air quality monitoring is essential. Powered by a single PoE cable, it delivers real-time vape detection alongside industrial-grade multi-pollutant sensing — measuring CO2, PM1, PM2.5, PM4, PM10, VOC, NOx, and AQI at a 1 Hz sampling rate. Tunable vape detection sensitivity and native Protect alerts make it ideal for enforcing no-vaping policies without camera-based surveillance.

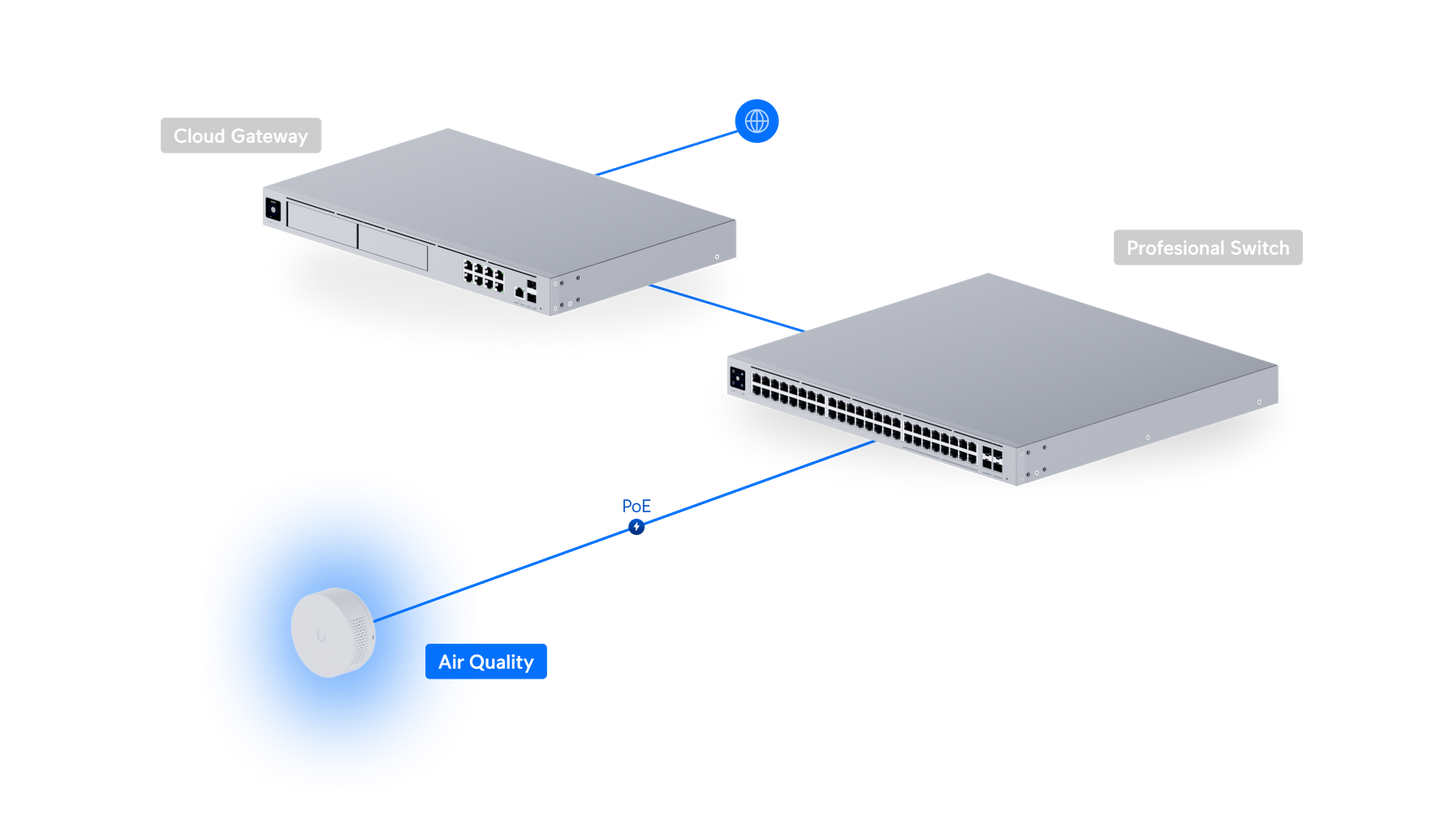

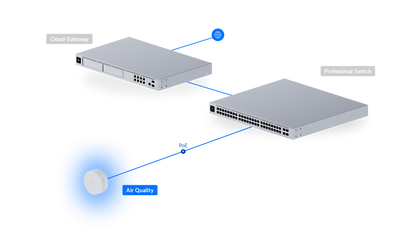

The sensor integrates seamlessly into any existing UniFi Protect deployment (Version 7.1+) and is compatible with UNVR, UNVR Pro, ENVR, ENVR Core, and UniFi Cloud Gateways. Flexible wall, ceiling, or table mounting options suit virtually any indoor environment, and NDAA compliance makes it suitable for government and institutional use. Need it fast? iptrading.com.au delivers across Australia — shop now.

Features

- Real-time vape detection with dedicated Vape Index (0–100) and immediate UniFi Protect alerts
- Industrial-grade multi-pollutant sensing: CO2, PM1, PM2.5, PM4, PM10, VOC, NOx, and AQI
- Temperature and humidity monitoring at a high 1 Hz sampling rate
- Single-cable PoE installation — no separate power supply required
- Plug-and-play adoption via UniFi Protect (Version 7.1 or later)
- Native Protect automation triggers when air quality thresholds are exceeded
- Tunable vape detection sensitivity via in-app calibration slider (0–100)
- Discreet, compact enclosure ideal for bathrooms, dormitories, and meeting rooms
- Flexible wall, ceiling, or table mounting options for versatile deployment
- Compatible with UNVR, UNVR Pro, ENVR, ENVR Core, and UniFi Cloud Gateways
- Optional extended wireless coverage via UniFi SuperLink Gateway (USL-Gateway)
- NDAA compliant for government and institutional deployments

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

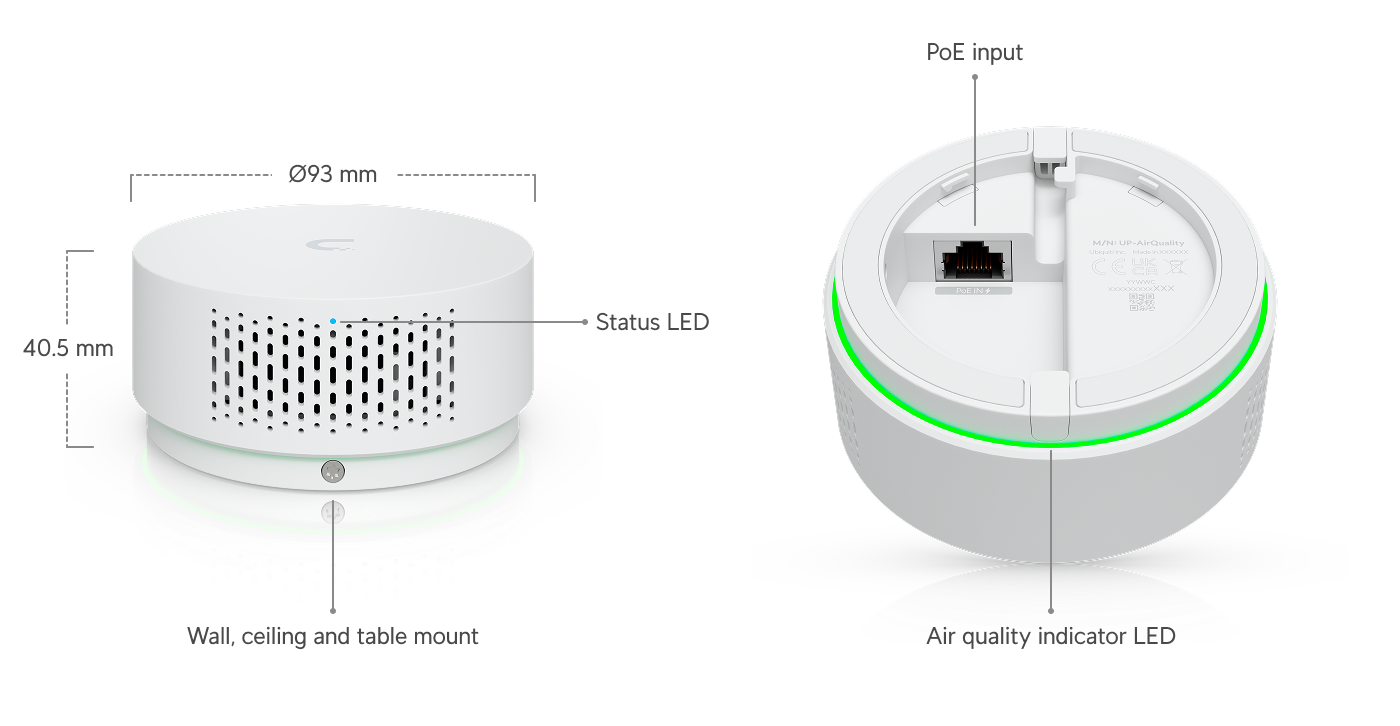

- Dimensions: ⌀93 × 40.5 mm (⌀3.7 × 1.6"); Weight: 190 g

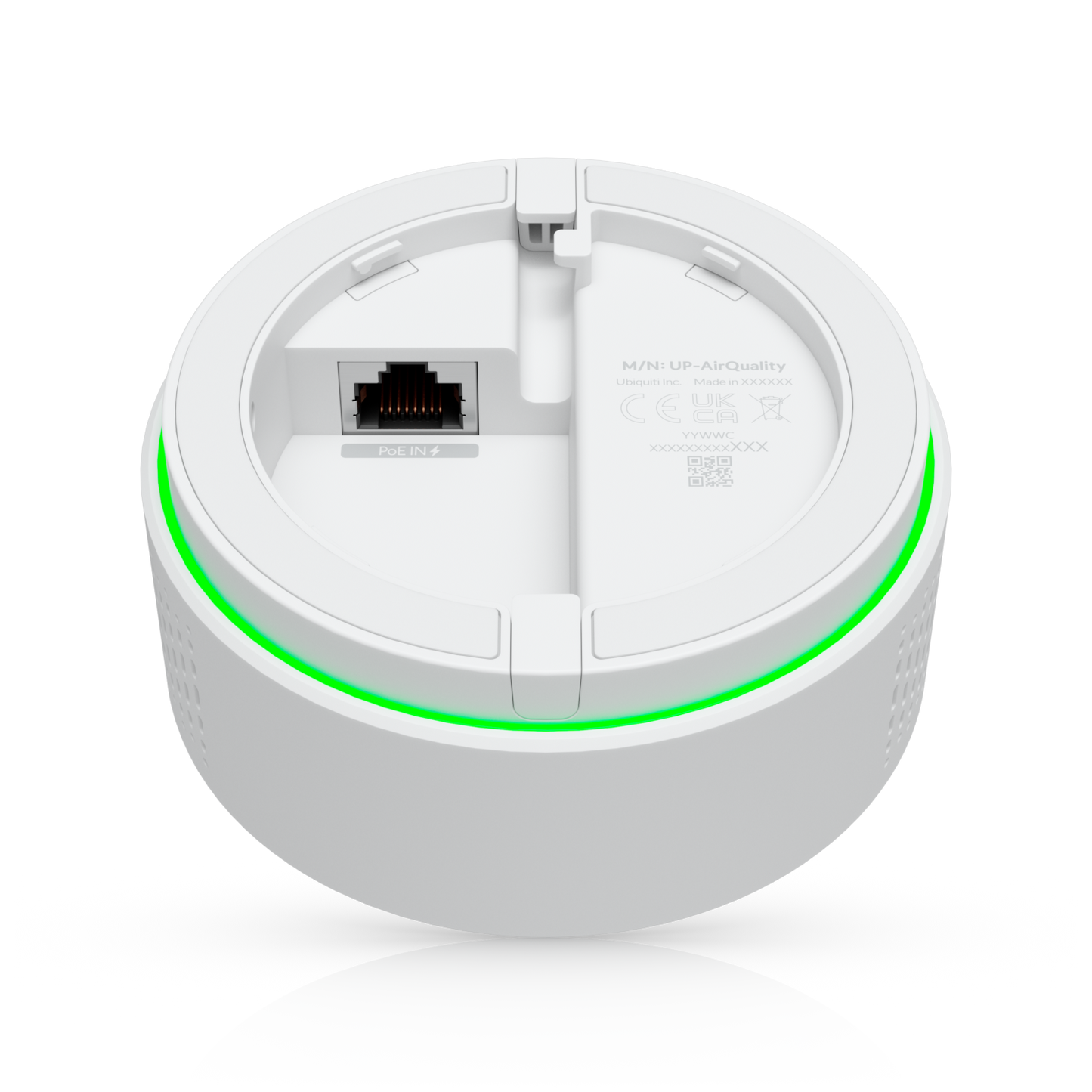

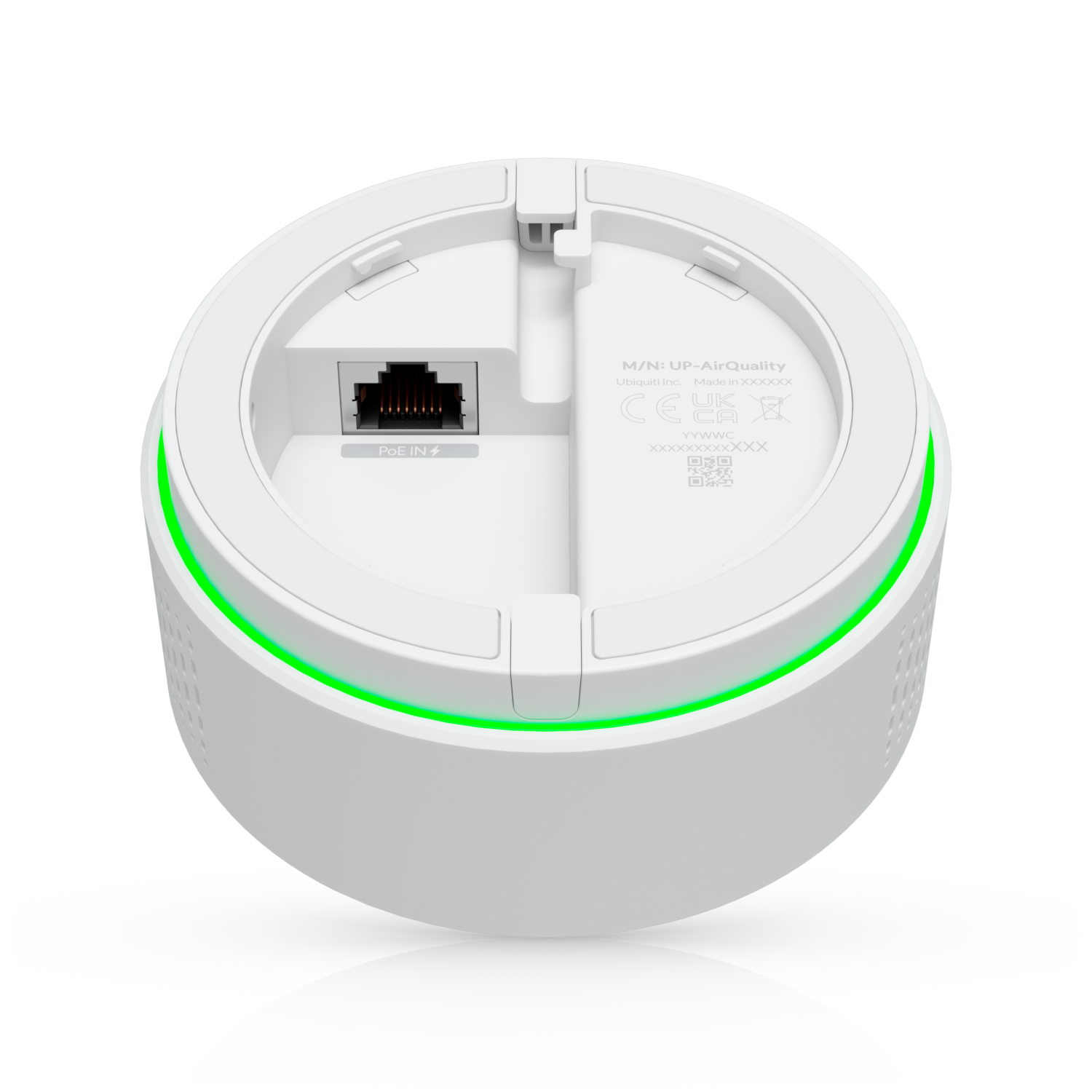

- Networking Interface: (1) 10/100 MbE RJ45 port (PoE-powered)
- Connectivity: Wired Ethernet
- Sampling Rate: 1 Hz
- Air Quality Sensors: CO2, PM1, PM2.5, PM4, PM10, VOC, AQI, NOx, Vape
- CO2 Sensor Range: 0–40,000 ppm
- PM1/PM2.5/PM4/PM10 Range: 0–1,000 µg/m³
- PM1/PM2.5 Accuracy (0–100 µg/m³): ±(5 µg/m³ + 5% m.v.)
- PM1/PM2.5 Accuracy (100–1,000 µg/m³): ±10% m.v.
- VOC Index Range: 1–500
- NOx Index Range: 1–500
- Vape Index Range: 0–100
- Air Quality Index (AQI) Range: 0–500
- Temperature Sensor Range: 0–40°C (32–104°F); Operating: 10–35°C recommended
- Humidity Sensor Range: 0–90% RH; Operating: 10–90% non-condensing
- Mounting Options: Wall, ceiling, or table
- Minimum UniFi Protect Version: 7.1 (console); iOS 3.6.0; Android 3.5.0
- Certifications: CE, FCC, IC; NDAA compliant

FAQs

Q: What pollutants does the UP-AirQuality sensor measure?
A: The UP-AirQuality measures CO2, PM1, PM2.5, PM4, PM10, VOC (Volatile Organic Compounds), NOx, overall Air Quality Index (AQI), temperature, humidity, and includes a dedicated Vape Index (0–100) for real-time vape detection.

Q: How does vape detection work, and can sensitivity be adjusted?
A: The sensor uses its multi-pollutant array to detect the chemical signatures associated with vaping and assigns a Vape Index score from 0 to 100. Sensitivity is tunable via an in-app calibration slider in UniFi Protect, allowing administrators to reduce false positives in environments with other airborne particulates.

Q: Does the UP-AirQuality require a separate power supply?
A: No. The sensor is powered entirely over its single Ethernet cable using PoE (Power over Ethernet), so no separate power adapter or additional cabling is needed. This makes installation in ceilings, bathrooms, or meeting rooms clean and straightforward.

Q: Which UniFi Protect consoles and software versions are compatible?
A: The UP-AirQuality is compatible with UNVR, UNVR Pro, ENVR, ENVR Core, and UniFi Cloud Gateways running UniFi Protect Version 7.1 or later. The UniFi Protect mobile app requires iOS 3.6.0+ or Android 3.5.0+.

Q: Is the UP-AirQuality suitable for government or NDAA-regulated deployments?
A: Yes. The UP-AirQuality is NDAA compliant, making it appropriate for government agencies, educational institutions, and other regulated environments that require hardware to meet National Defence Authorisation Act supply chain requirements.

Q: Can I purchase the UP-AirQuality in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an Australian B2B IT hardware reseller stocking the Ubiquiti UP-AirQuality with delivery available nationwide. Contact our team for volume pricing, procurement support, or fast shipping enquiries.
