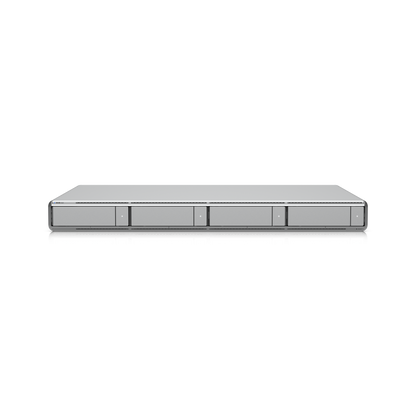

Ubiquiti UNVR-G2 | UniFi Protect G2 4-Bay NVR, 1U Rack, 10G SFP+, 30x 4K

Name: Ubiquiti UNVR-G2 | UniFi Protect G2 4-Bay NVR, 1U Rack, 10G SFP+, 30x 4K
Brand: Ubiquiti
SKU: UNVR-G2
Price: 1511.68 AUD
Availability: InStock

Authorised Ubiquiti Partner

SKU:UNVR-G2

In stock:8

$1,511.68 inc. GST

$1,374.25 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The UniFi Protect Network Video Recorder G2 is a 1U rack-mount NVR with four 2.5"/3.5" HDD/SSD bays, built-in AI event analytics and a 10G SFP+ uplink alongside a 2.5GbE RJ45 port. It manages up to 30 4K, 50 2K or 60 Full HD cameras with the HDMI viewport disabled, making it a strong fit for medium to large UniFi Protect surveillance deployments.

An integrated HDMI viewport output provides local live view, while RAID data protection helps safeguard recordings. Powered by an 8-core Qualcomm Kryo processor with 8 GB of memory, it supports power redundancy via USP-RPS and works with UniFi Protect, UniFi Access and UniFi Connect.

Features

- Built-in AI event analytics
- Integrated HDMI viewport output for local live view
- Four 2.5"/3.5" HDD/SSD bays with RAID data protection
- Supports up to 30 4K or 60 Full HD UniFi Protect cameras
- 10G SFP+ and 2.5GbE networking
- Power redundancy support via USP-RPS
- Compatible with UniFi Protect, UniFi Access and UniFi Connect

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1U rack mount, 442.4 x 43.7 x 325 mm, 6 kg
- Storage: 4 x 2.5"/3.5" HDD/SSD bays, up to 75W drive power budget
- Networking: 1 x 10G SFP+ port, 1 x 2.5GbE RJ45 port
- Cameras (HDMI Viewport disabled): up to 60 HD, 50 2K or 30 4K
- Cameras (HDMI Viewport in use): up to 40 HD, 30 2K or 20 4K
- Max. simultaneous viewport streams: 16 4K cameras
- Managed Access hubs: 150+
- Processor: Qualcomm Kryo 8-core CPU (4 nm), 1 x 3.2 GHz, 4 x 2.8 GHz, 3 x 2.0 GHz
- Memory: 8 GB
- Video output: HDMI viewport
- Power: universal AC input 100-240V, internal 100W PSU, USP-RPS DC input 11.5V
- Max. power consumption: 100W
- Management interfaces: Ethernet, Bluetooth
- Operating temperature: 0 to 40 C, humidity 5 to 95% non-condensing
- Enclosure: SGCC steel

FAQs

Q: How many cameras can the UNVR-G2 manage?
A: With the HDMI viewport disabled it supports up to 60 HD, 50 2K or 30 4K cameras. With the built-in HDMI viewport in use, this is 40 HD, 30 2K or 20 4K cameras.

Q: Does the UNVR-G2 include hard drives?
A: It provides four 2.5"/3.5" HDD/SSD bays with RAID data protection. Drives are installed separately, with a 75W maximum power budget for the drive bays.

Q: What network ports does it have?
A: One 10G SFP+ port and one 2.5GbE RJ45 port.

Q: Can I connect a monitor directly to the NVR?
A: Yes. The HDMI viewport output provides local live view and supports up to 16 simultaneous 4K camera streams.

Q: Does it support power redundancy?
A: Yes. It has an internal AC power supply and a USP-RPS DC input at 11.5V for redundant power.

Q: Which UniFi applications does it work with?
A: It is managed through UniFi Protect, and is also compatible with UniFi Access and UniFi Connect. It can manage 150+ Access hubs.
